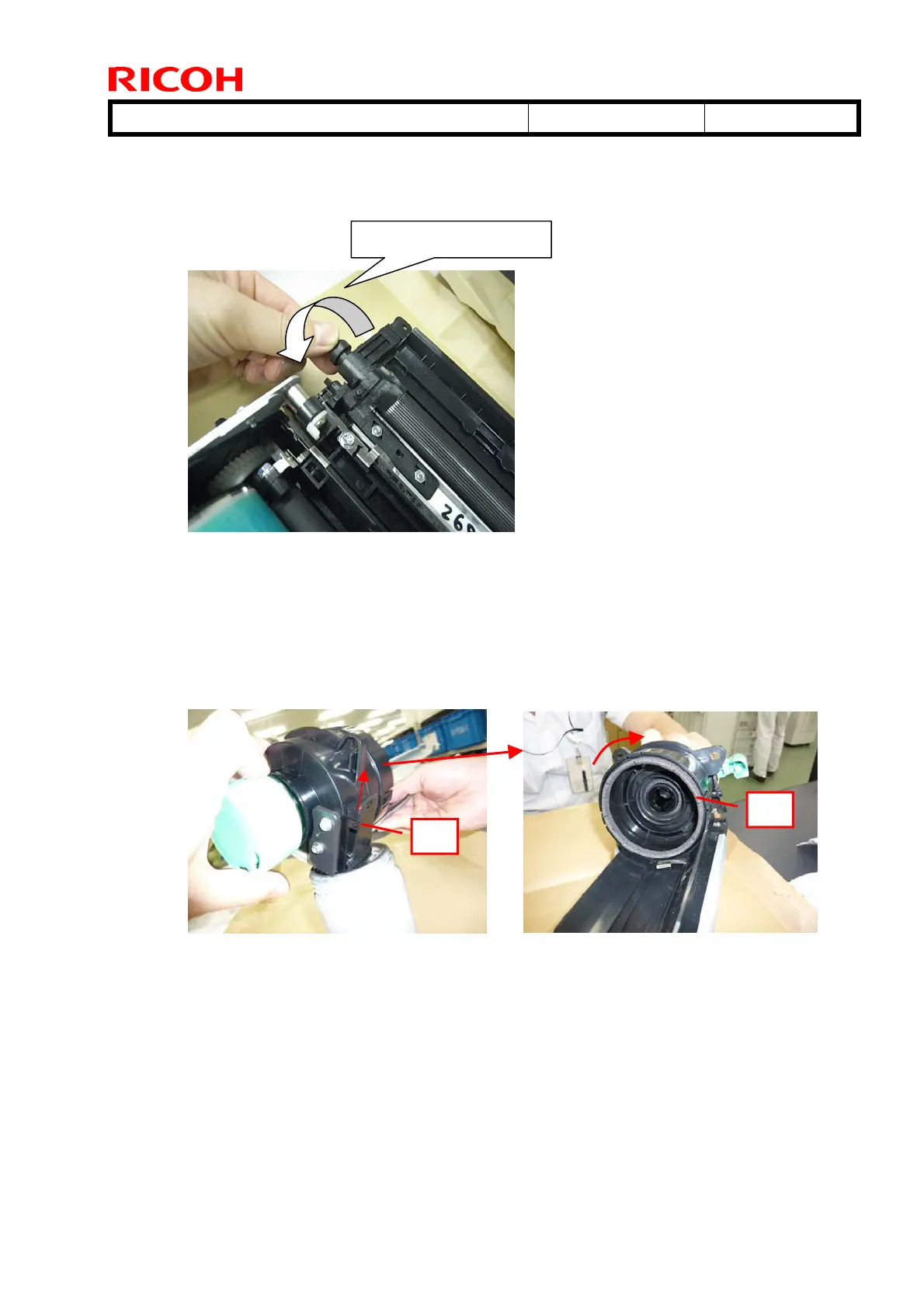

5. Rotate the development roller in the direction of the arrow until the section you
cleaned is no longer visible. Repeat Step 4 for this section of the roller surface.
6. Repeat Steps 4 and 5 until you have cleaned the entire surface of the roller.
7. Reassemble the PCDU and install the PCDU into the machine.
III. Removing toner from the toner supply unit
1. Remove the toner supply unit.
2. Lift the shutter [A] up and turn the inner plastic parts [B] in the direction as shown
below until all toner comes out from the unit.
3. Re-install the toner supply unit and set the new toner bottle.
4. Turn the main switch on.
Direction of rotation
[A]
[B]
