1. Measure the distance between the two side plates
- Set the scale in the same way as described above.

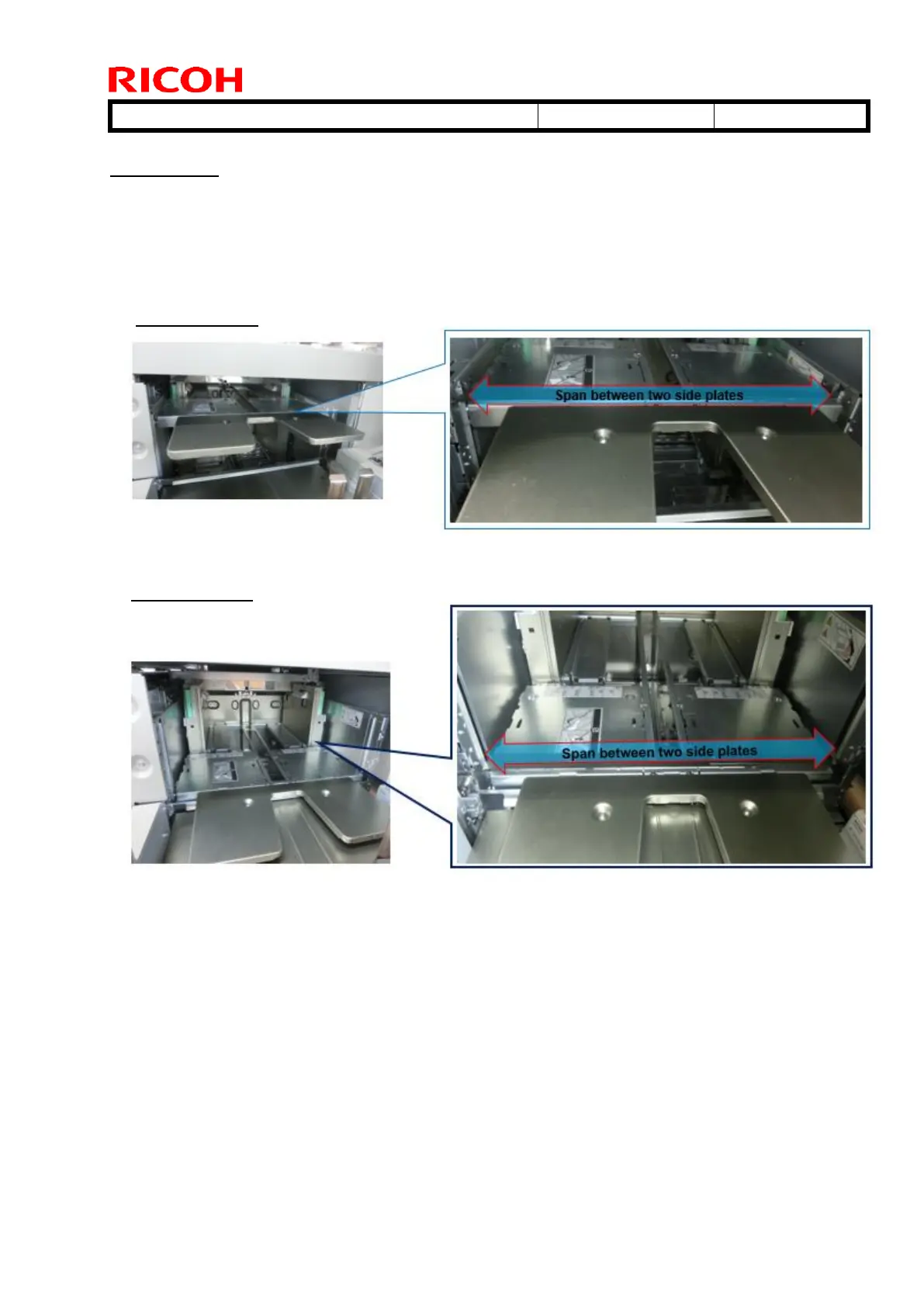

- Measure the span as the distance between the two side plates at two positions,
both Upper (Fig. 8) and Lower (Fig. 9).
Upper Position
Fig. 8
Lower Position
Fig. 9
