7.Detailed Descriptions
204

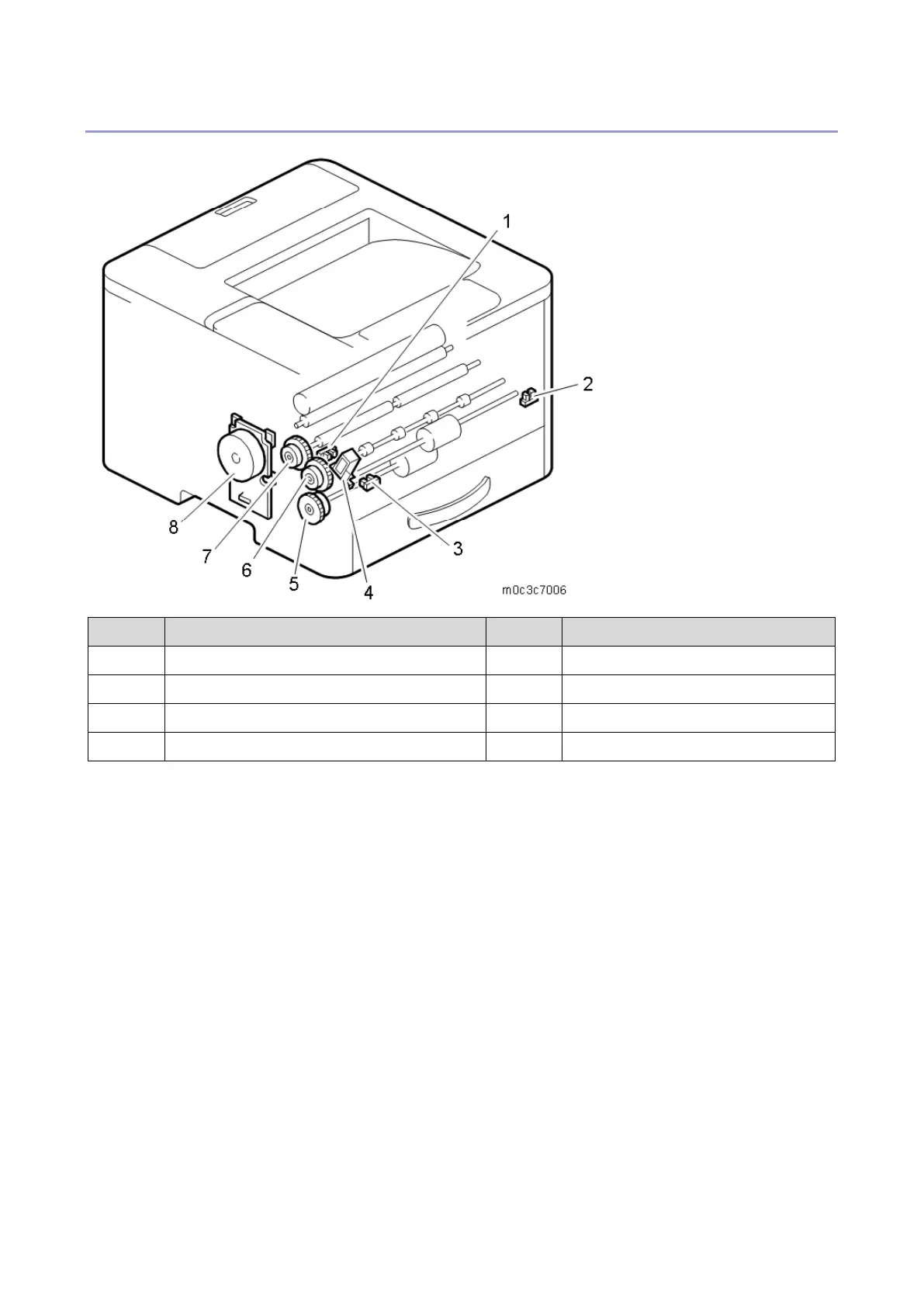

Paper Feed
No.
Description
No.
Description
1
Registration sensor
5
Paper feed clutch
2
By-pass feed sensor
6
Relay clutch
3
Paper end sensor
7
Registration clutch
4
By-pass feed solenoid
8
Main motor
