4.Replacement and Adjustment
83

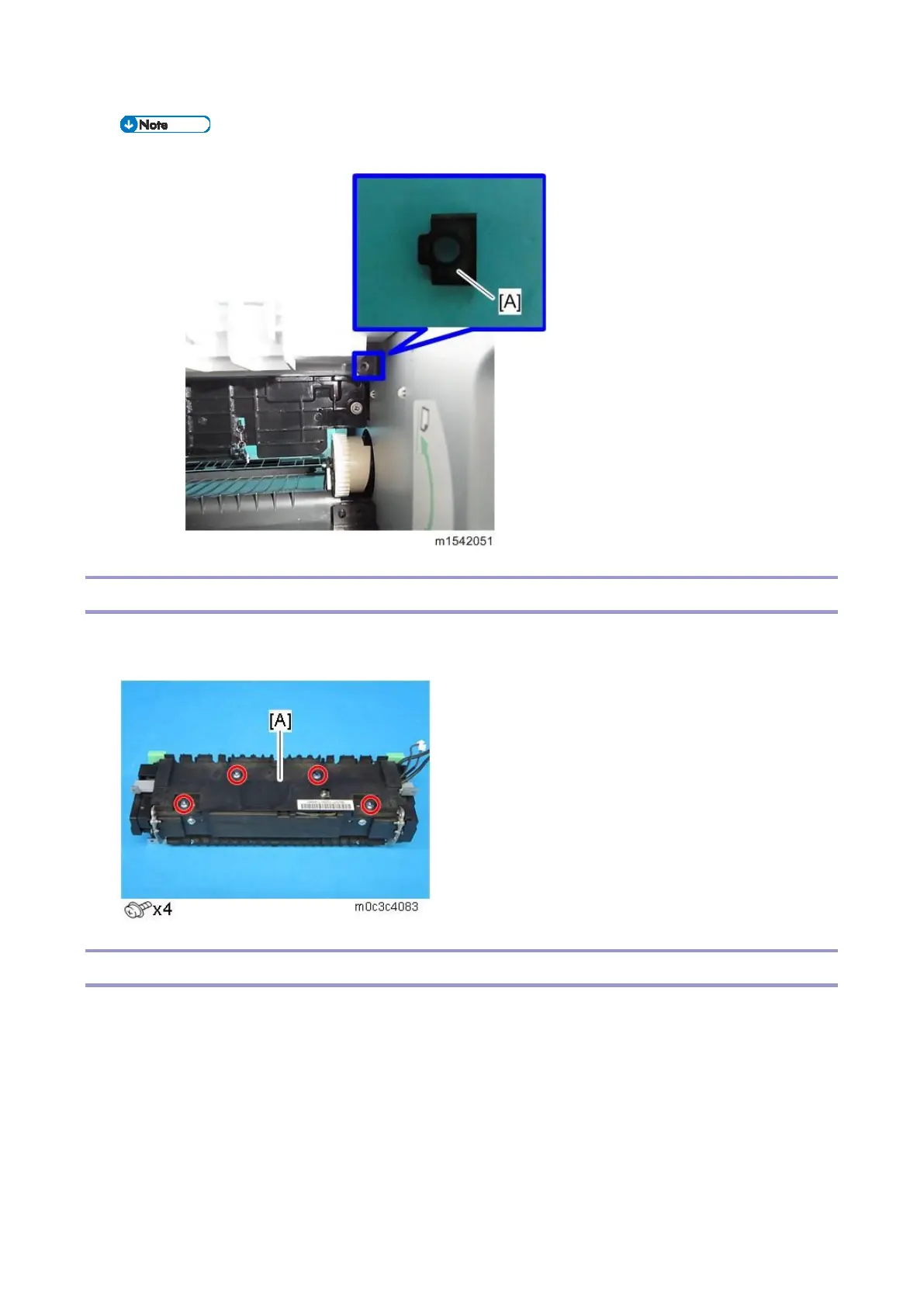

 Make sure that the two bushings [A] on both sides remain in position.
Fusing Upper Cover
1. Remove the fusing unit (Fusing Unit).
2. Remove the fusing upper cover [A].
Thermostat
1. Remove the fusing unit (Fusing Unit).
2. Remove the fusing upper cover (Fusing Upper Cover)
