Ricoh SP 330DN - Registration Sensor

4.Replacement and Adjustment
76

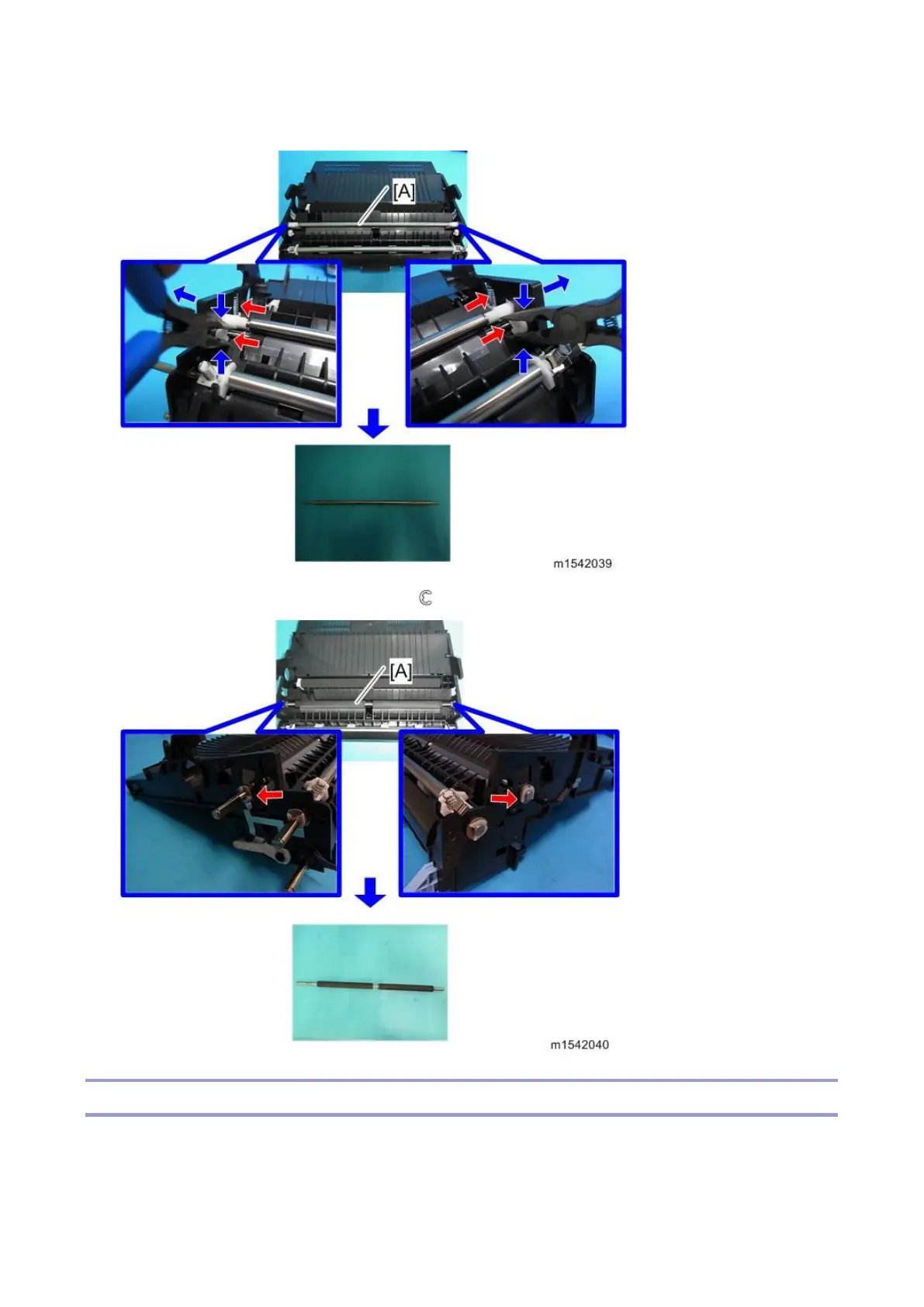

26. Remove the registration roller (follower) [A] as shown below (spring x 2, plastic parts x 2).
27. Remove the registration roller (drive) [A] ( x 2, bushing x 2).
Registration Sensor
1. Remove the registration unit (Registration Roller).
2. Turn the registration unit over.
