4.Replacement and Adjustment
28

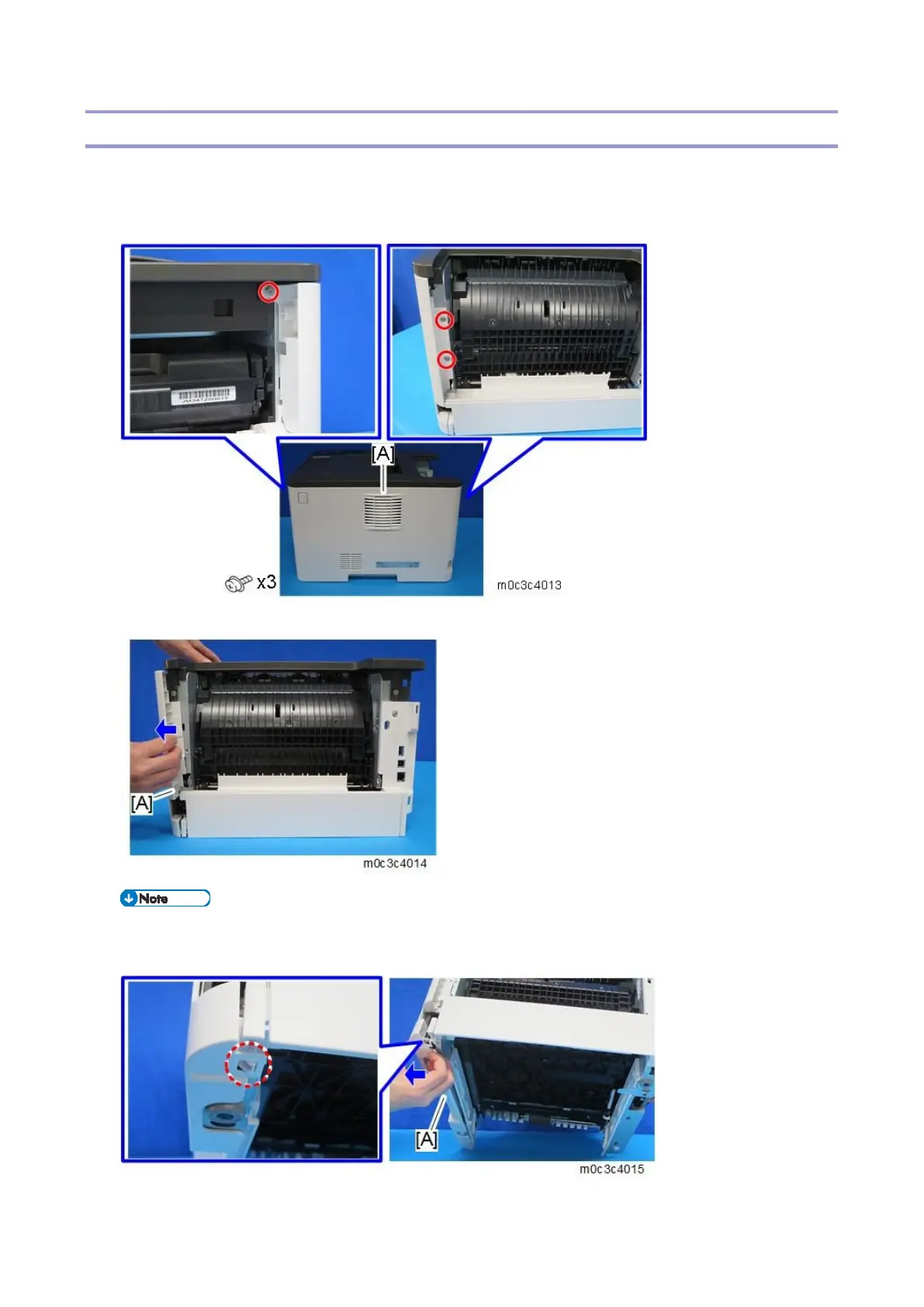

Right Cover
1. Remove the front cover (Front Cover).
2. Remove the rear cover (Rear Cover).
3. Remove the three screws of the right cover [A].
4. Pull the rear part of the right cover [A] to release the hook.
The outside of the cover has marks indicating the position of the hooks.
5. Lift the machine, and release the hook of the right cover [A].
