4.Replacement and Adjustment
48

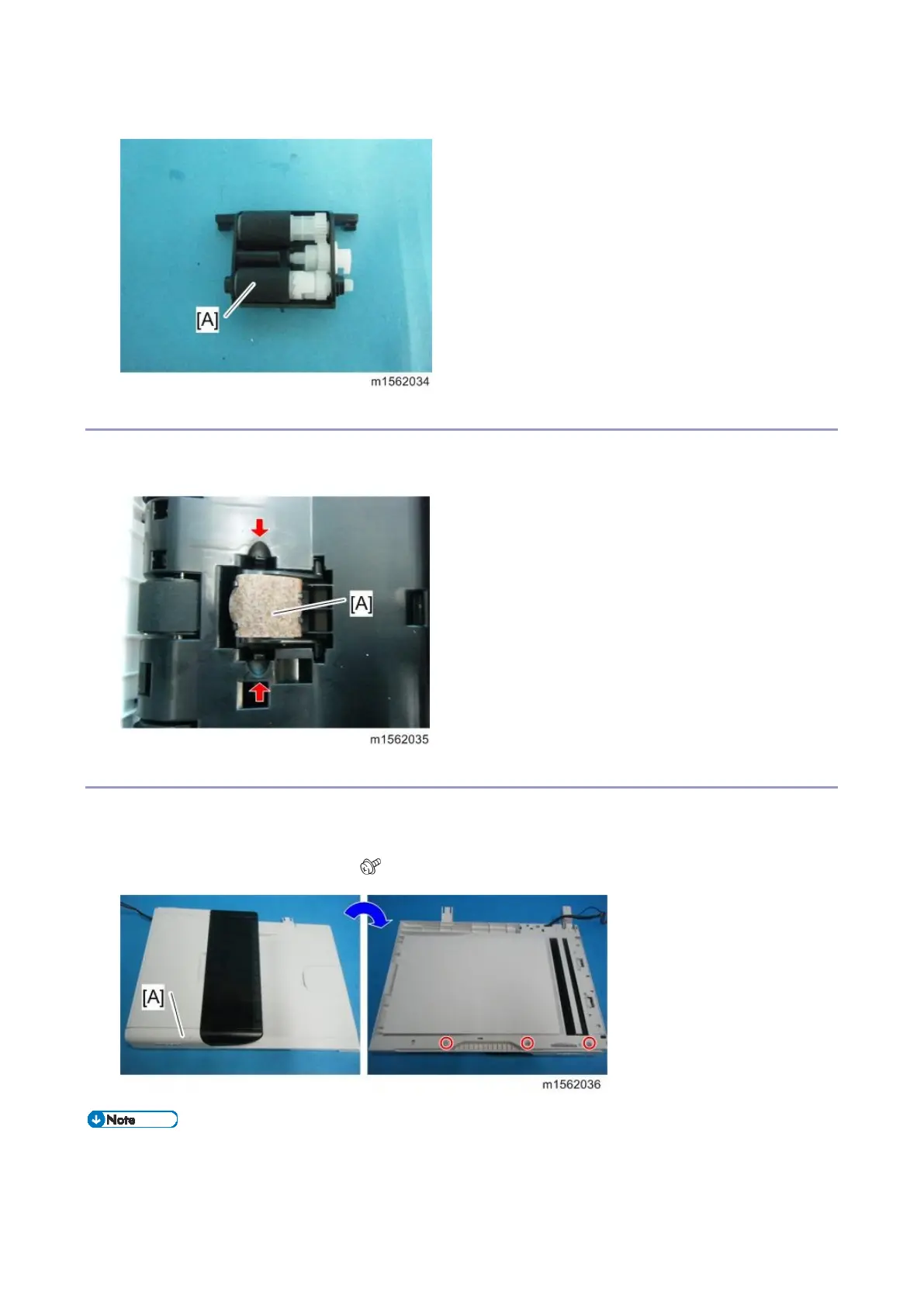

2. Remove the ADF feed roller [A].
ADF Separation Pad
1. Open the ADF top cover.
2. Remove the ADF separation pad [A] (2 hooks, spring x 1).
ADF Front Cover
1. Remove the ADF unit (ADF Unit).
2. Turn the ADF unit over.
3. Remove the ADF front cover [A] ( x 3).
There are many hooks and tabs inside the ADF front cover [A]. Before removing the ADF front
