4.Replacement and Adjustment
51
brush).

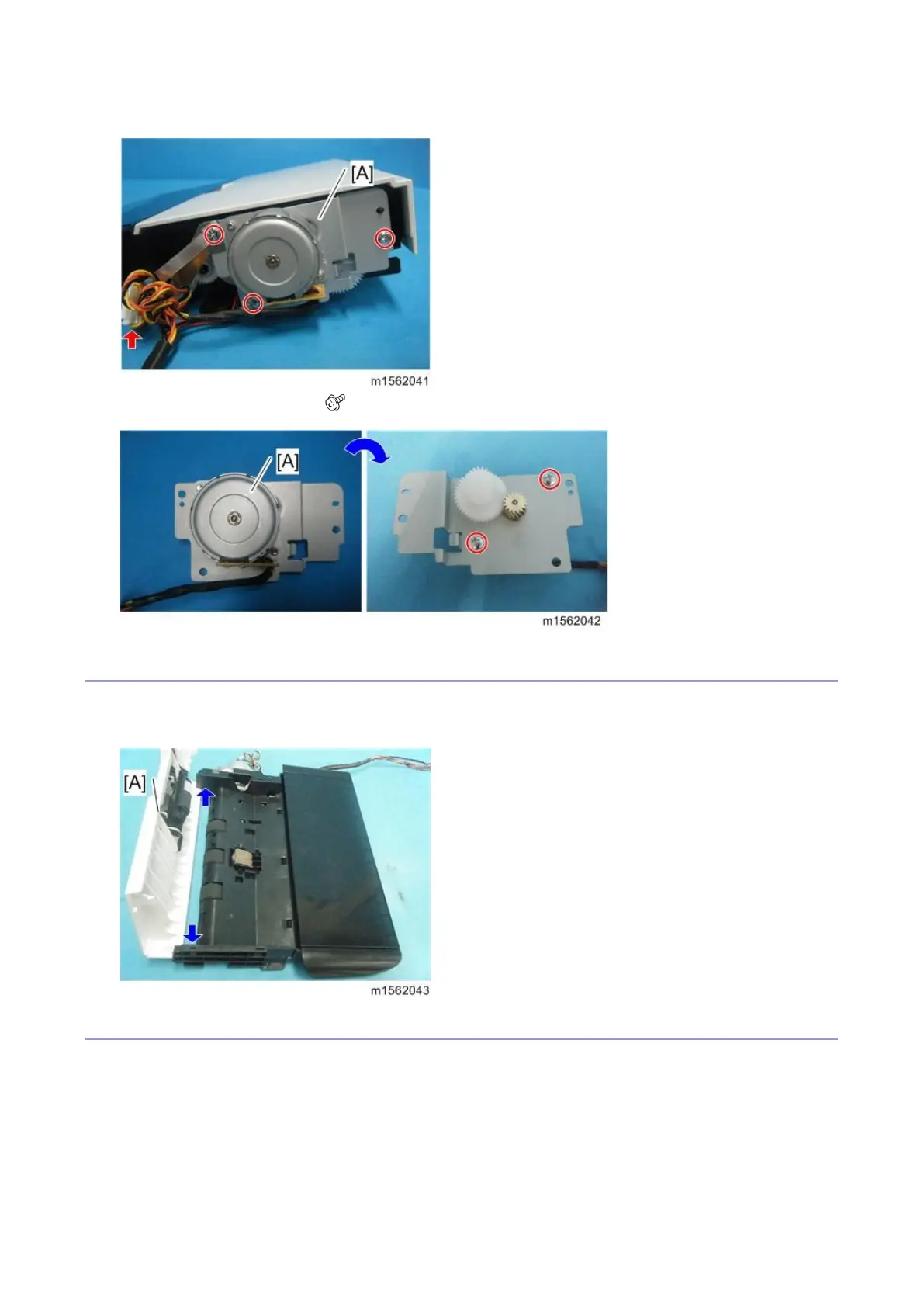

6. Remove the ADF motor [A] ( x 2).
ADF Top Cover
1. Remove the ADF drive unit (ADF Motor).
2. Open the ADF top cover [A] and remove it (two tabs).
Original Set Sensor
1. Remove the ADF drive unit (ADF Motor).
2. Turn the ADF drive unit over.
To Next Page
