4.Replacement and Adjustment
54

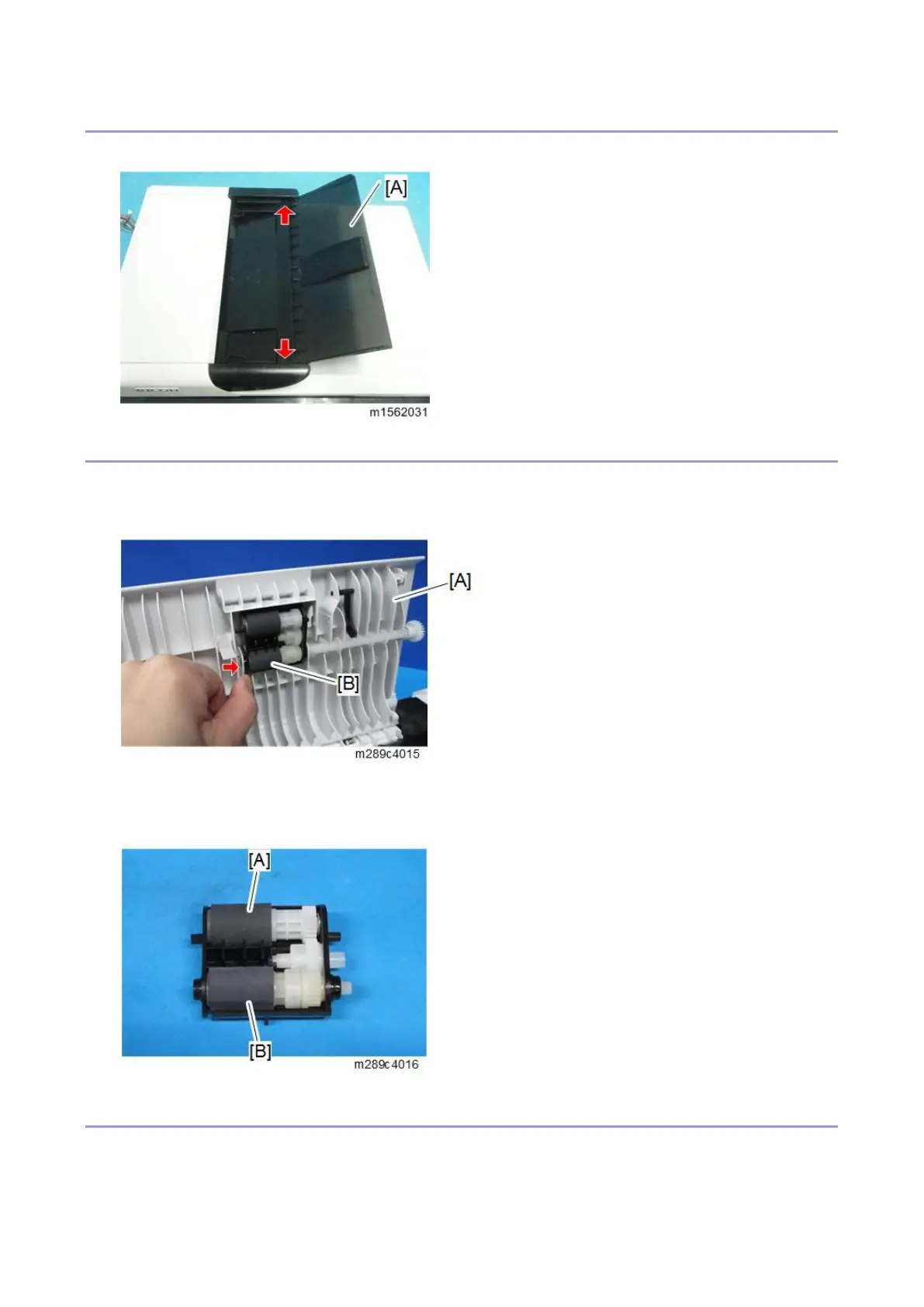

Original Tray
1. Open the original tray [A] and remove it (two tabs).
ARDF Pick-Up Roller, ARDF Feed Roller
1. Open the ARDF top cover [A].
2. Remove the ARDF feed unit [B] (tab).
3. Remove the ARDF pick-up roller [A].
4. Remove the ARDF feed roller [B].
ARDF Separation Pad
1. Open the ARDF top cover.
To Next Page
