4.Replacement and Adjustment
59

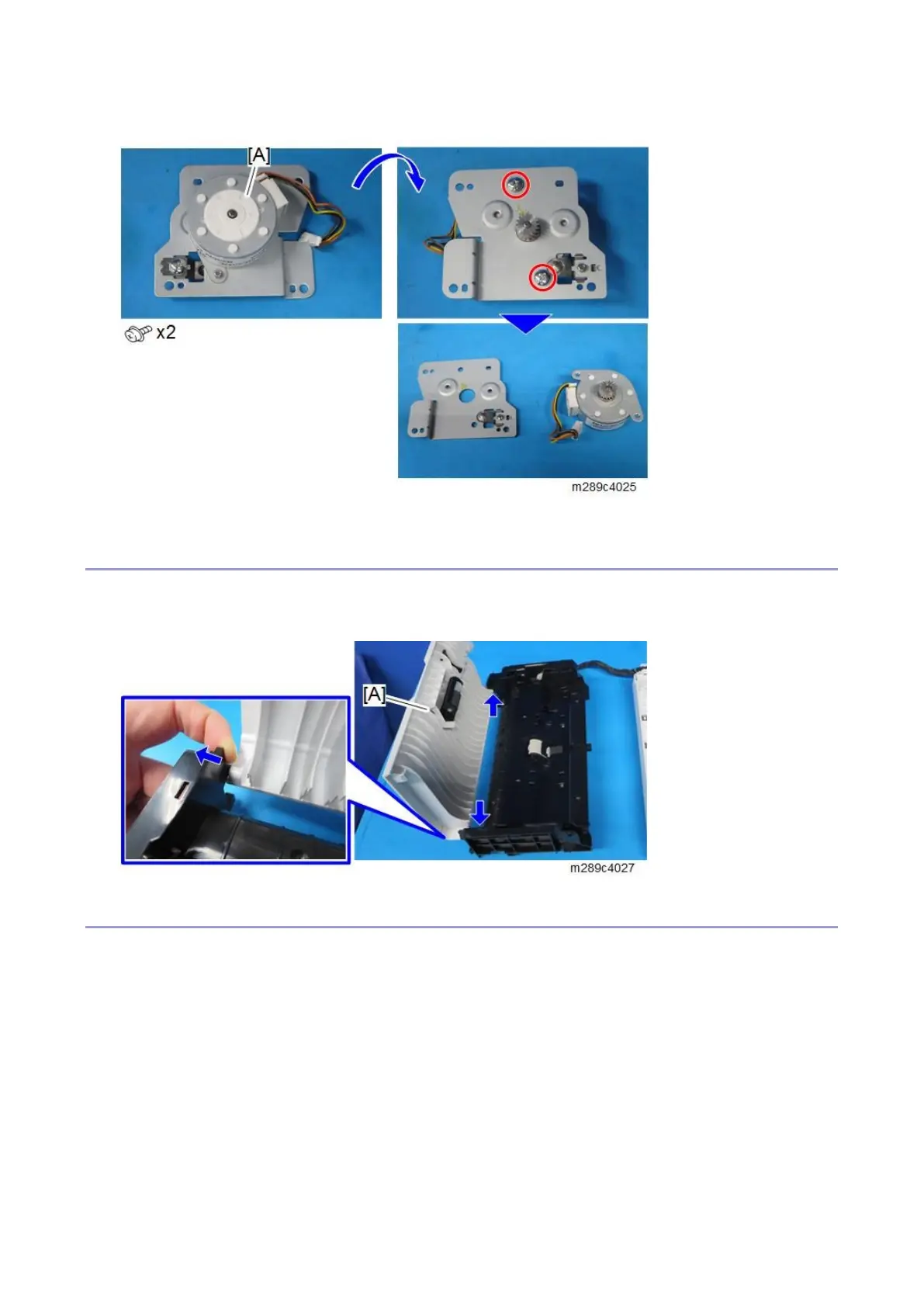

7. Remove the ARDF motor [A].
ARDF Top Cover
1. Remove the ARDF drive unit (ARDF Motor).
2. Open the ARDF top cover [A] and remove it (two tabs).
Original Set Sensor
1. Remove the ARDF drive unit (ARDF Motor).
2. Turn the ARDF drive unit over.
