4.Replacement and Adjustment
61

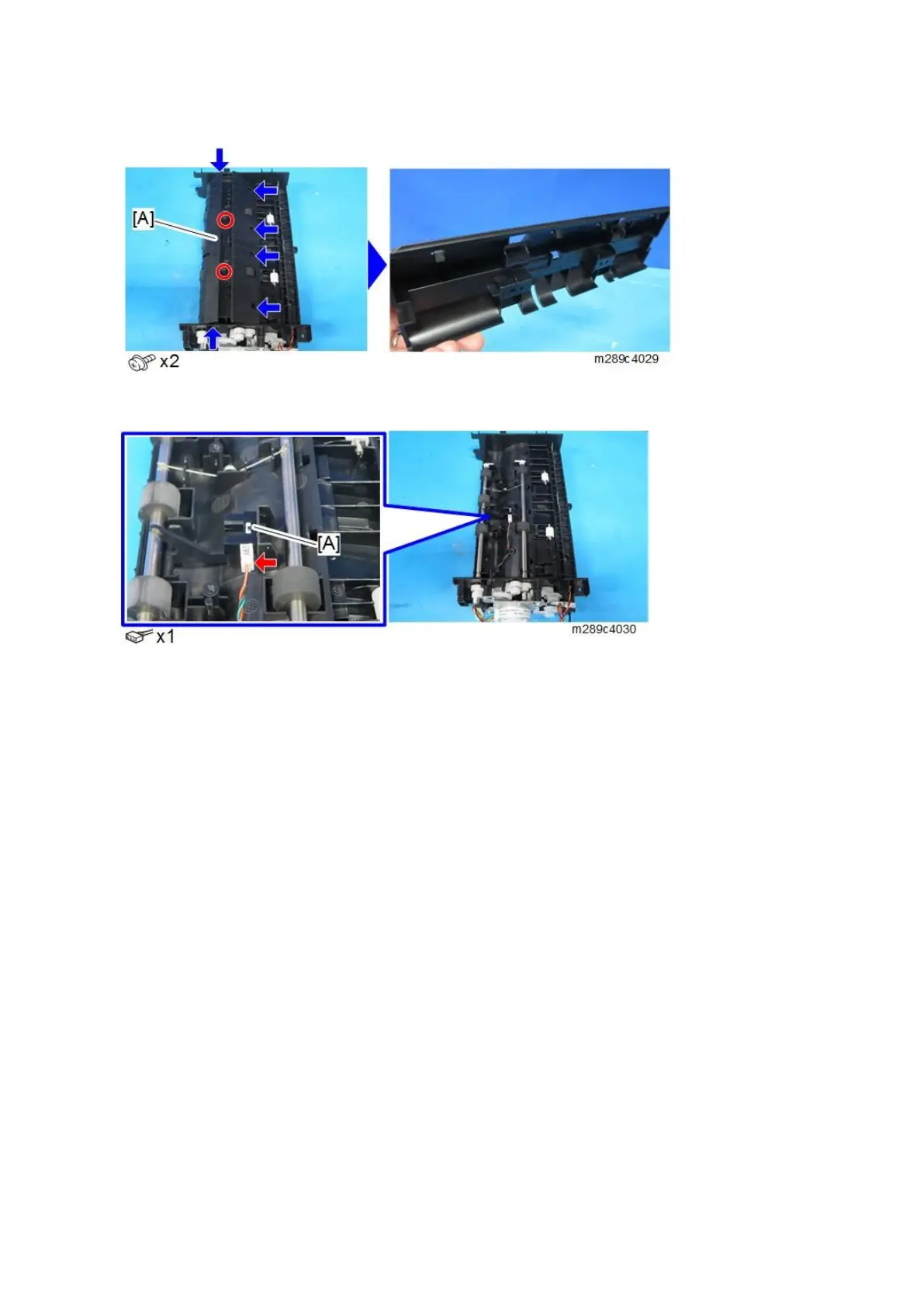

4. Remove the lower guide [A] (6 hooks).
5. Remove the ARDF feed sensor [A].
