4.Replacement and Adjustment
63

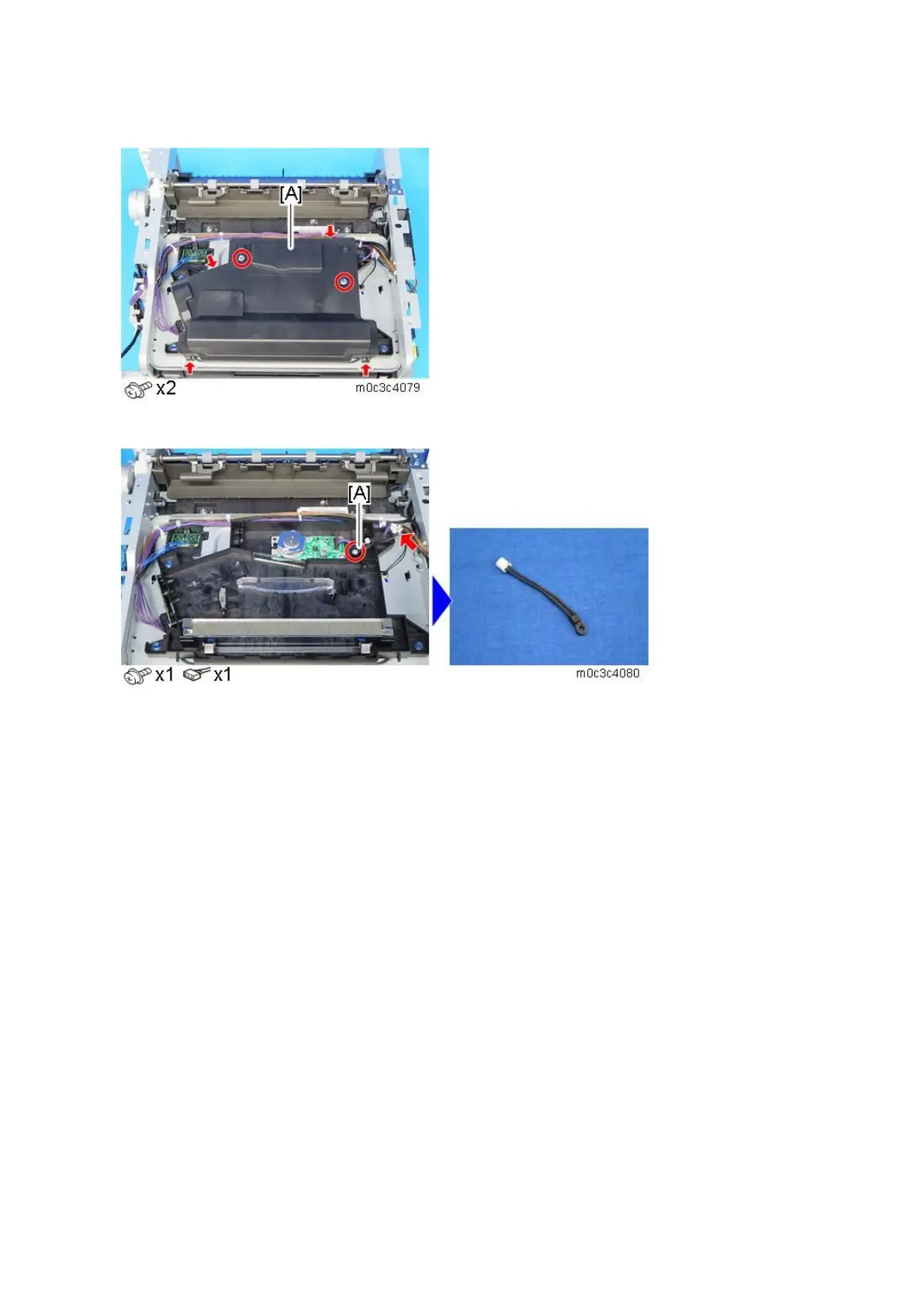

2. Release the four hooks, and remove the laser unit top cover [A].
3. Remove the laser unit thermistor [A].
