4.Replacement and Adjustment
71

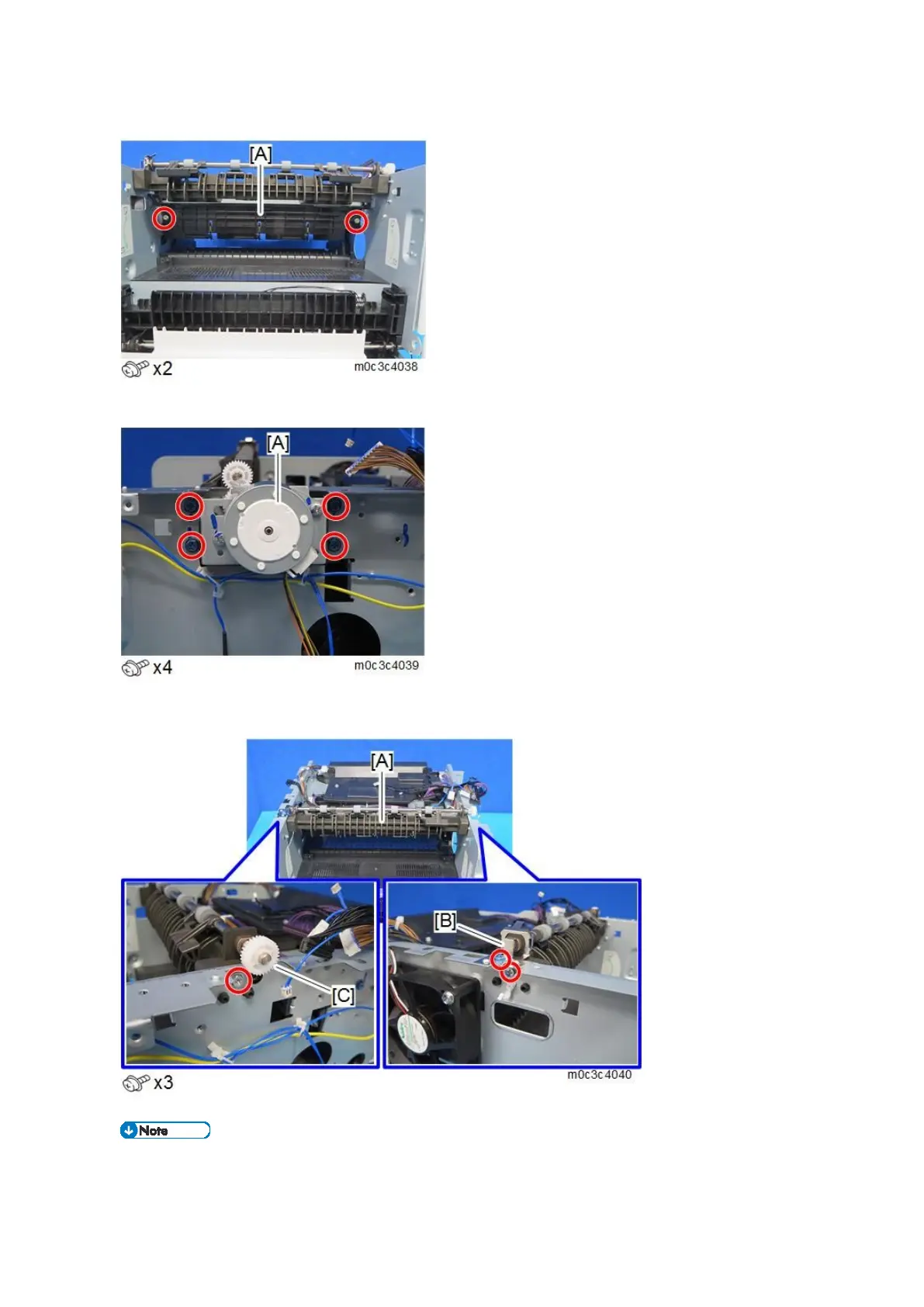

11. Remove the heat insulating plate [A].
12. Remove the duplex motor base [A].
13. Slightly flex the side frames outward, and remove the exit roller base [A] and grounding plate [B].
When re-installing the exit roller base, remove the gear [C] temporarily so that it does not
get damaged.
