4.Replacement and Adjustment
74

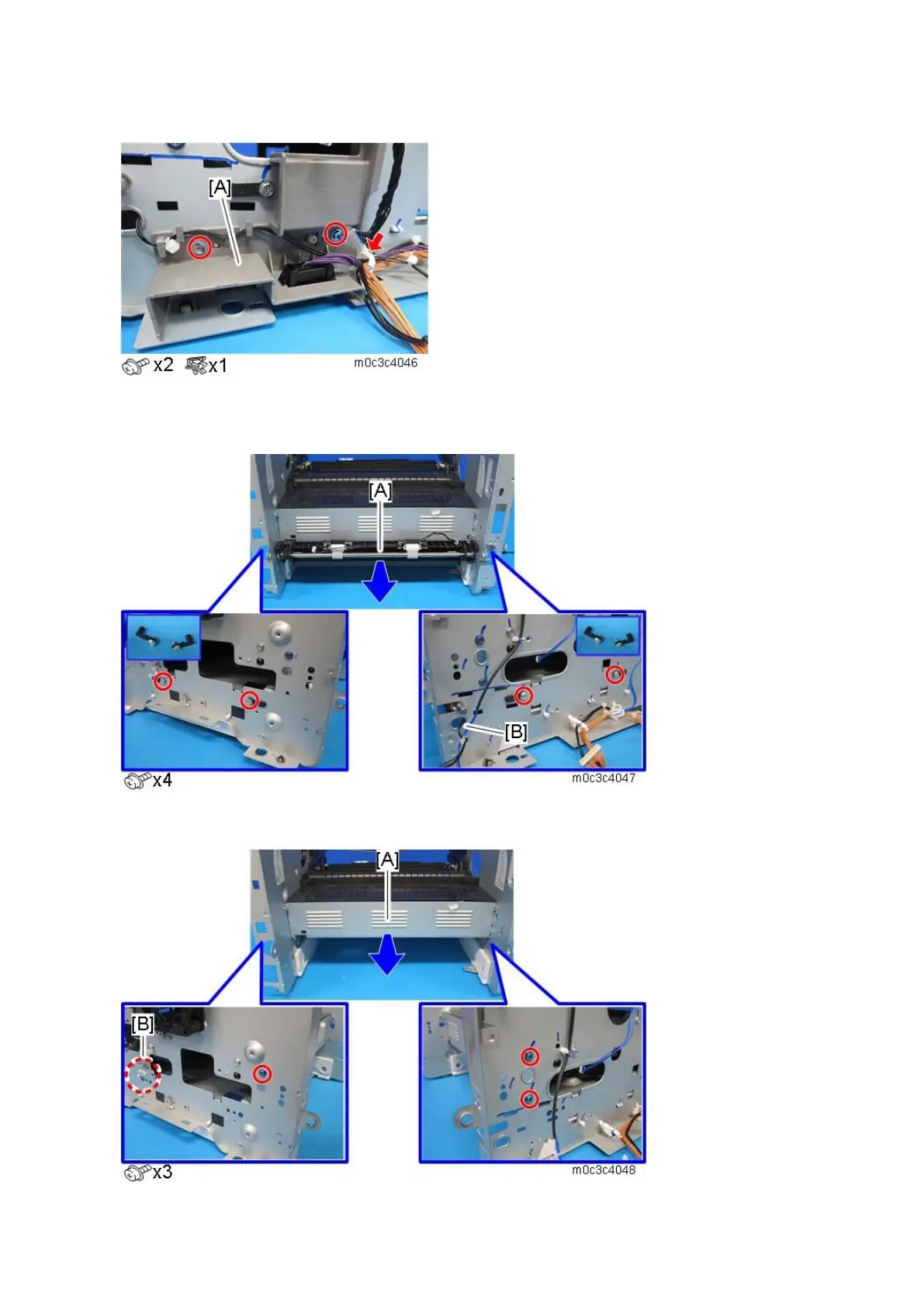

21. Remove the bracket [A] on the left side.
22. Remove the bushings on both sides and pass the harness [B] through the hole inside the machine,
and then remove the duplex transport guide [A].
23. Remove the clamp [B], and then remove the bracket [A].
To Next Page
