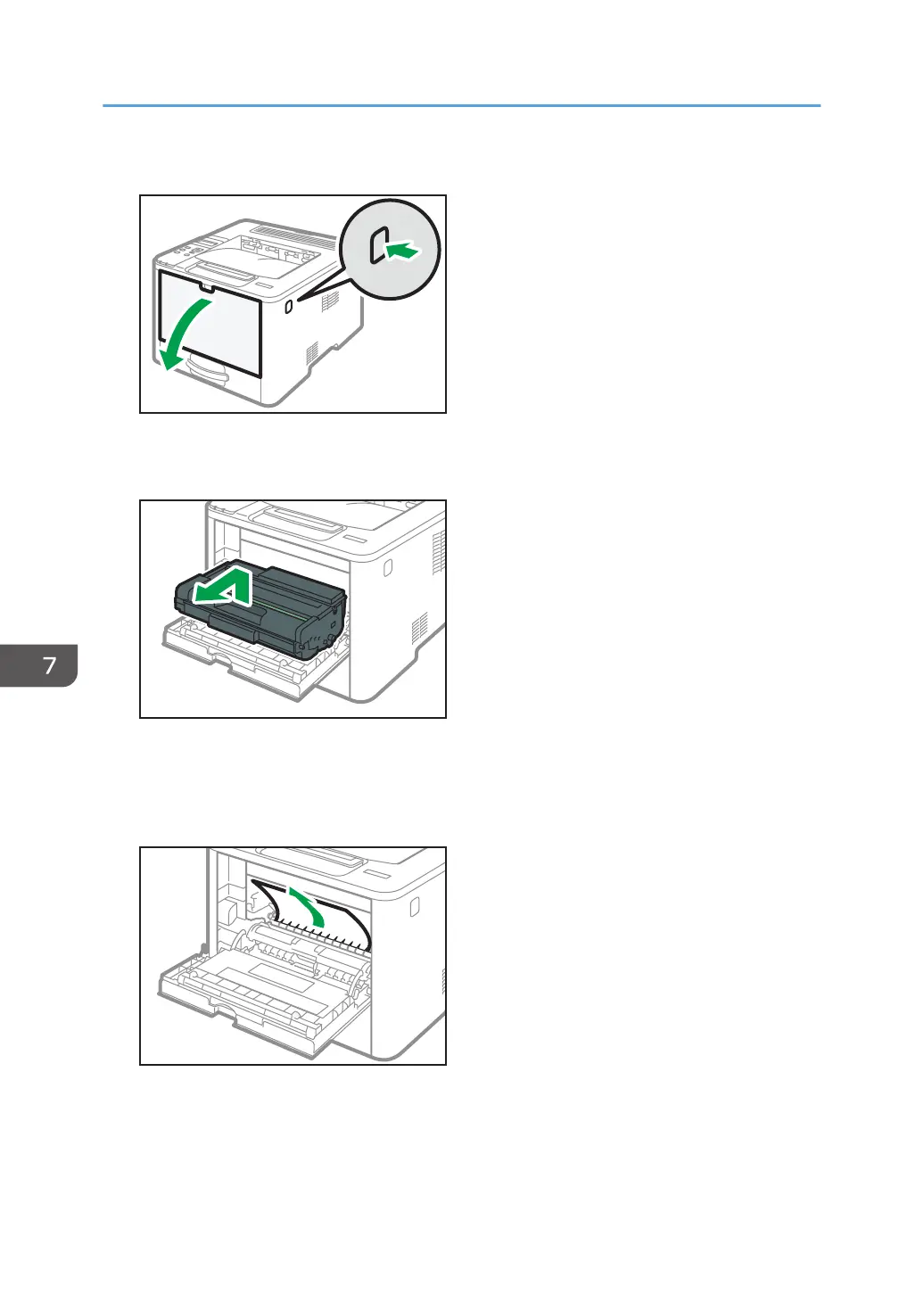

13. Push the side button to open the front cover, and then carefully lower it.
14. Hold the center of the print cartridge and carefully raise it slightly and then pull it out
horizontally.
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
• Place the print cartridge on paper or similar material to avoid dirtying your workspace.
15. Lift the A lever, and then remove the jammed paper carefully.
7. Troubleshooting
156
