Ricoh SP C250SF - Page 304

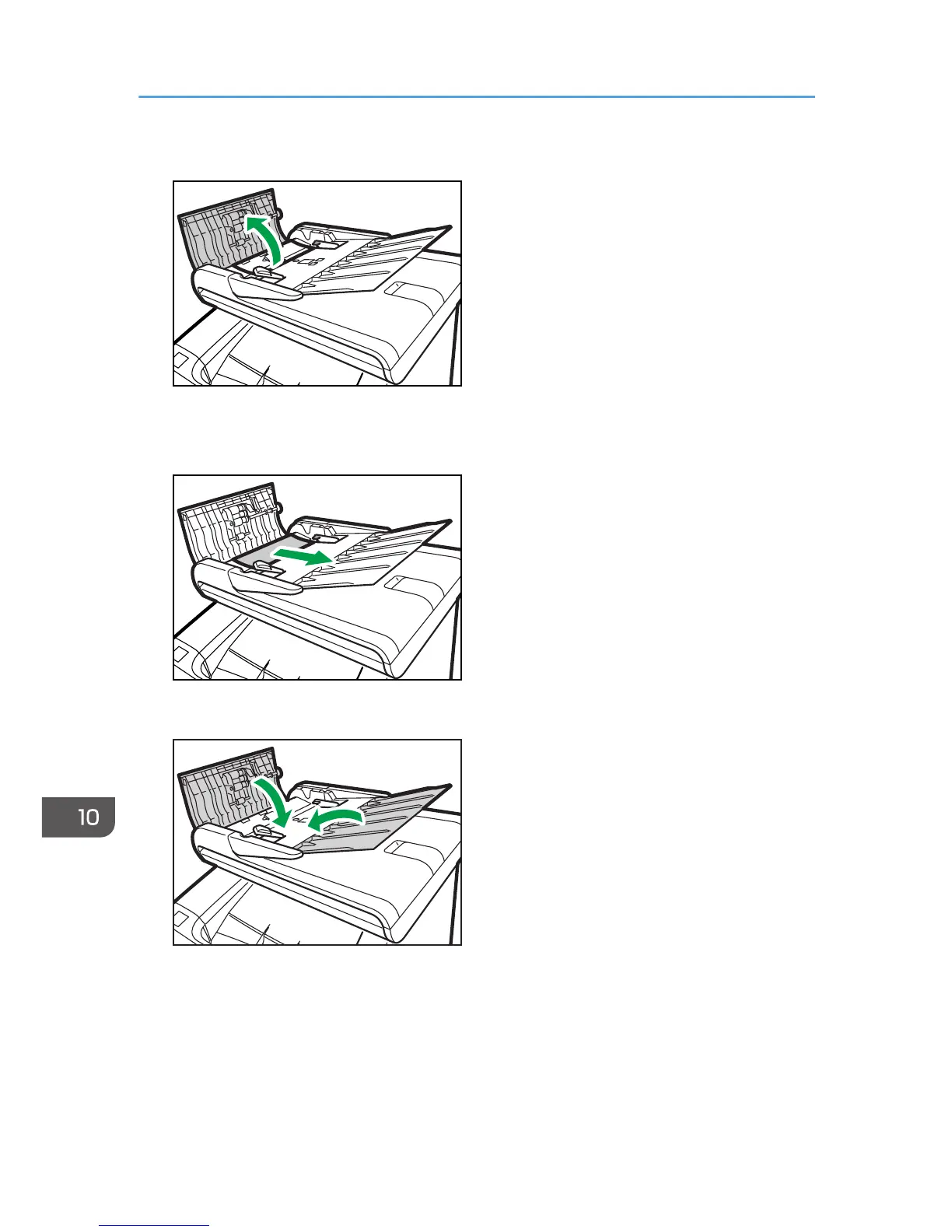

1. Open the ADF cover.
DAC011
2. Gently pull the jammed paper to remove it.
Be careful not to pull the original too hard, as it may rip.
DAC013
3. Close the ADF cover and the cover of the input tray for ADF.
DAC012
4. Lift the ADF, and if there is any original remaining in the ADF, gently pull the jammed
paper to remove it.
Be careful not to hold the input tray when lifting the ADF. Doing so may damage the tray.
10. Troubleshooting
302
