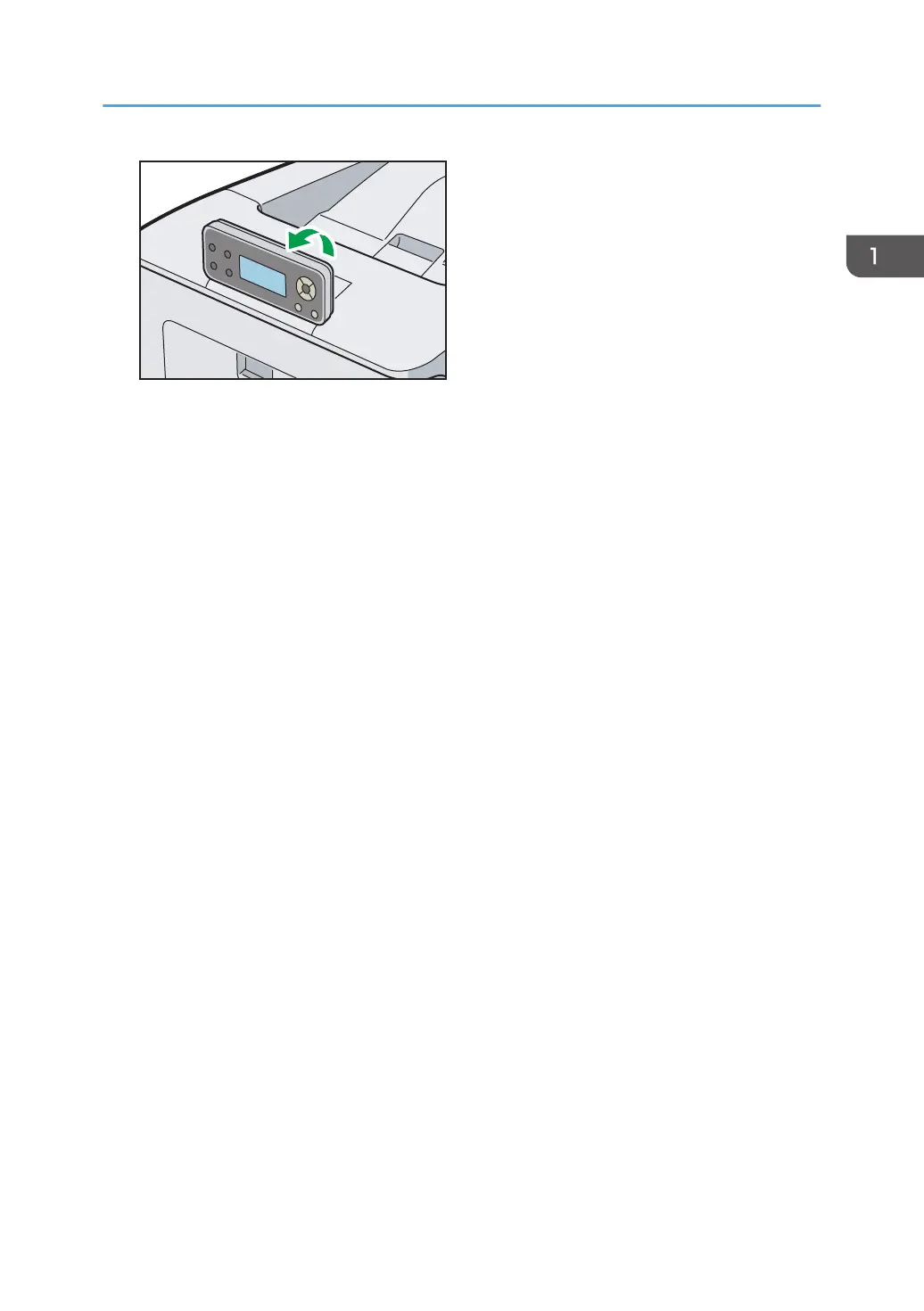

For details, see page 16 "Guide to the Names and Functions of the Control Panel".
4. Front cover
Open this cover when replacing the waste toner bottle, etc., or removing jammed paper.
Pull the right side lever to open the front cover.
5. Bypass tray
Up to 100 sheets of plain paper can be loaded.
For details about the sizes and types of paper that can be used, see page 34 "Paper Size Specifications"
and page 37 "Paper Type Specifications".
6. Main power switch
Use this switch to turn the power on and off.
Perform the shutdown procedure before turning the power off. For details about how to shut down the printer,
see page 23 "Turning Off the Power".
7. Remaining paper indicator
Indicates the approximate amount of paper remaining in the tray.
8. Standard paper feed tray (Tray 1)
Up to 500 sheets of plain paper can be loaded.
For details about the sizes and types of paper that can be used, see page 34 "Paper Size Specifications"
and page 37 "Paper Type Specifications".
9. Stop fence
Raise the rear fence to prevent A4 or letter-size prints from falling behind the printer.
After using the stop fence, be sure to return it to its original position. The fence may be damaged if it is hit with
something or excessive force is applied.
10. Top cover open lever
Pull this lever upward to open the top cover.
11. Ventilation holes
Prevent overheating.
12. Front cover open lever
Pull this lever to open the front cover.
Guide to Names and Functions of Components
11
