Riedel CCP1116 - Connectors - Rear Side

CCP-1116 Commentary Control Panel – Quick Guide 1.2
Page 6

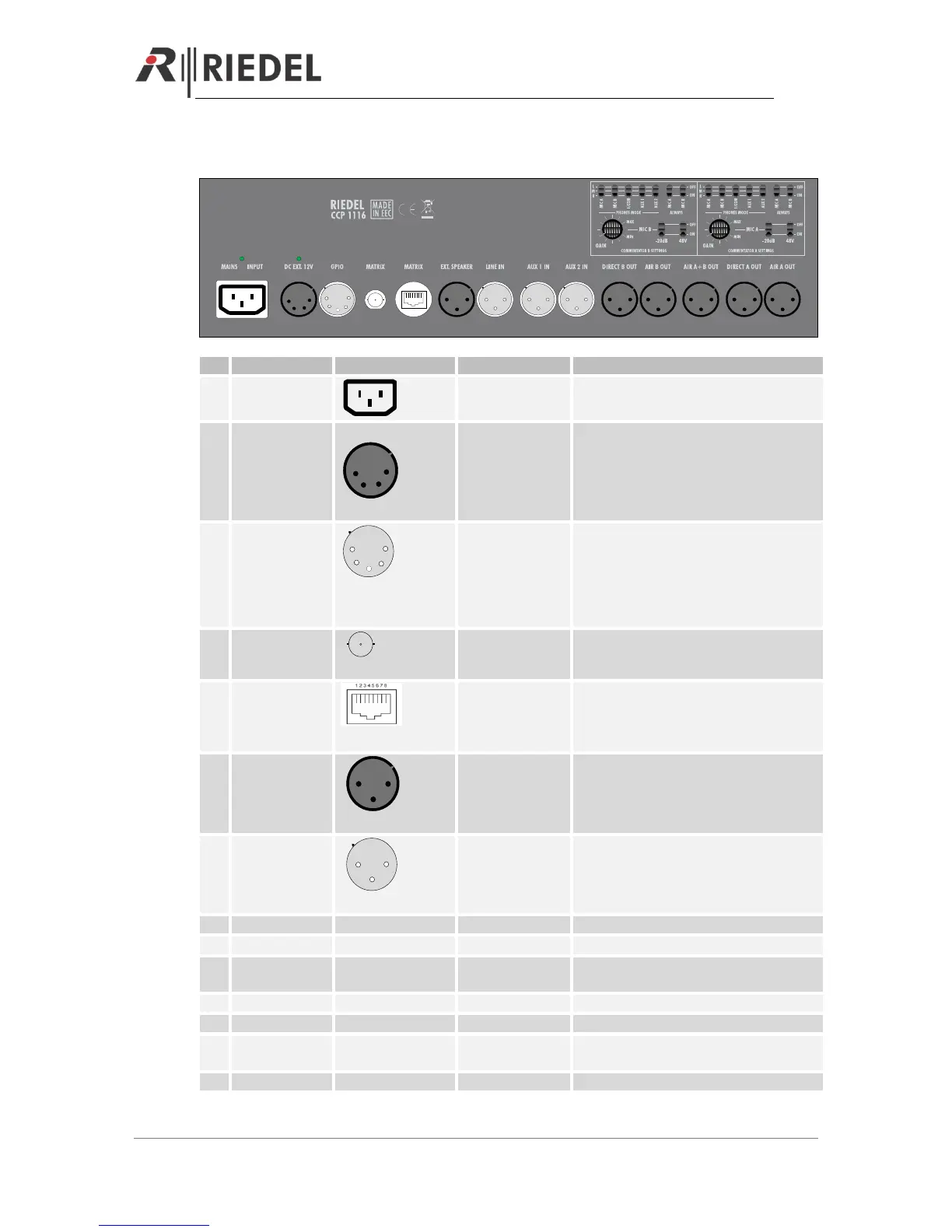

2.2 Connectors rear side
1
2
3
4
5
1
2
3
4
5 6
7
8
9
10 11
12
13
14
Nr.
Function
Connector Type
Artist
Pin out
1
Main Input
90-265V, 47-63Hz
2
DC EXT. 12V
1
2 3
4
XLR4 male
Pin 1: GND
Pin 2: n.c.
Pin 3: n.c.
Pin 4: +10 …+14VDC (3A)
3
GPIO
1
2
3
4
5
XLR5 female
Panel GPI IN 3
Panel GPI Out 3
Pin 1: OUT - ( > Director: GPI Out 3)
Pin 2: OUT + ( > Director: GPI Out 3)
Pin 3: IN - ( > Director: GPI IN 3)
Pin 4: IN + ( > Director: GPI IN 3)
Pin 5: +5V (250mA)
Shield: Ground
4
MATRIX (BNC)
BNC
Pin: Tx/RX Data +
Shield: Tx/Rx Data -
5
MATRIX (CAT5)
CAT5
Pin 1: TxD +
Pin 2: TxD –
Pin 3: RxD +
Pin 6: RxD -
6
Ext. Speaker
1 2
3
XLR3 male
Audio Patch:
Ext. OUT
Tip: Left
Ring : Right
Sleeve: GND
7
LINE IN
1
2
3
XLR3 female
Audio Patch:
External MIC
(only available in
Speaker Mode)
Pin 1 : Shield
Pin 2 : Signal + (hot)
Pin 3 : Signal – (cold)
8
AUX 1 IN
XLR3 female
n.a.
See 7
9
AUX 2 IN
XLR3 female
n.a.
See 7
10
DIRECT B OUT
(permanent)
XLR3 male
n.a.
See 6
11
AIR B OUT
XLR3 male
n.a.
See 6
12
AIR A+B OUT
XLR3 male
n.a.
See 6
13
DIRECT A OUT
(permanent)
XLR3 male
n.a.
See 6
14
AIR A OUT
XLR3 male
n.a.
See 6
