NSA-002A User Manual A00
3 Getting started

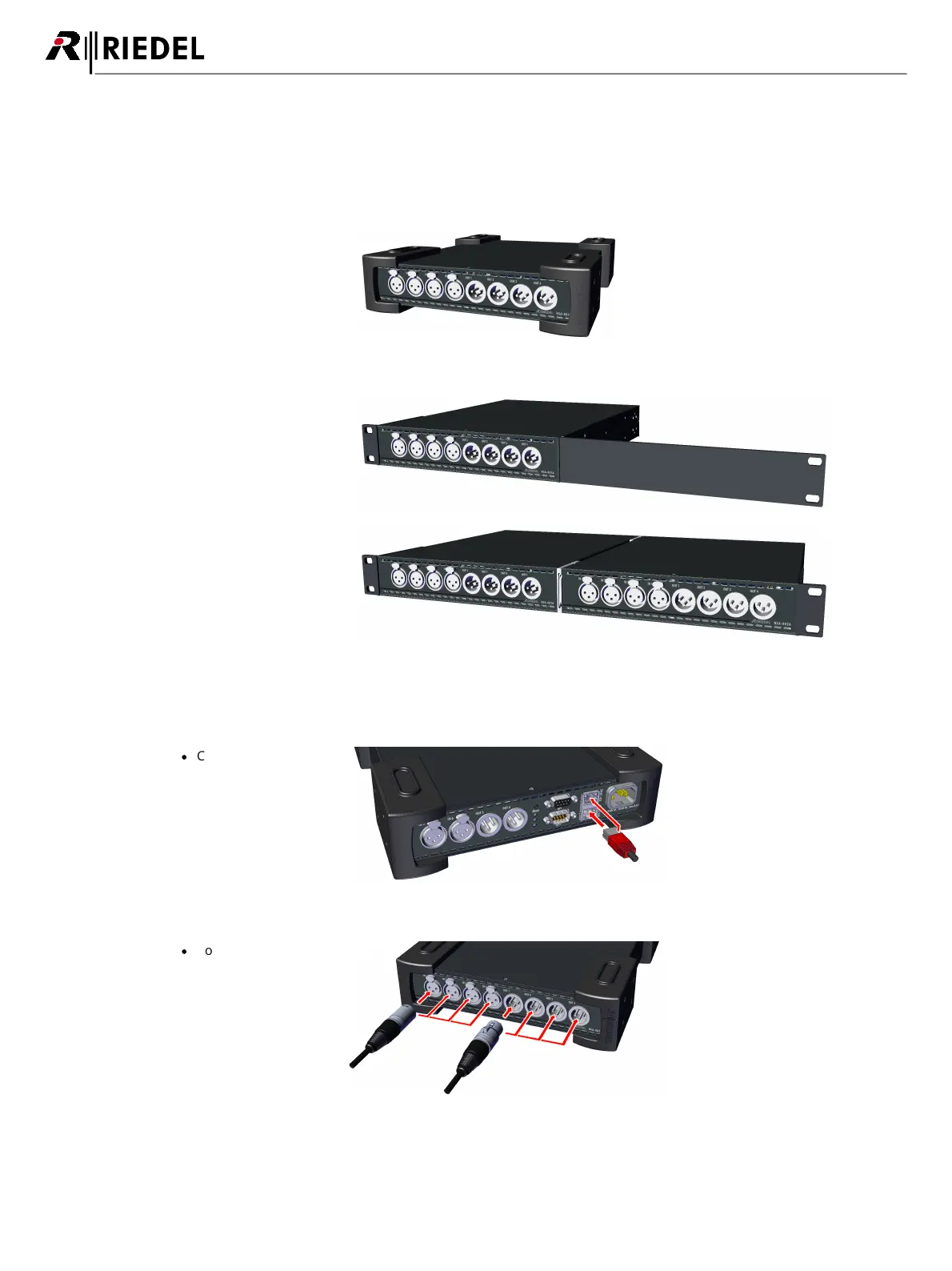

3.1 Mounting Options
Two mounting options are available for the NSA-002A:
Bumper SPK-001
(Stagebox Protection Kit)
Rugged rubber corners to
place or stack single
devices.
figure 9: bumper-assembly
Rack-Mount RMK-001
(19" Rack Mount Kit)
Rack mount kit for rack
installation of one or two
devices combined
together.
figure 10: 19" rack assembly
3.2 Connecting Interfaces
· Connect your AES67
network with one of
the two 'ETH' ports of
the NSA-002A.
figure 11: connecting AES67 network
· Connect your analog
audio inputs and
outputs with the
corresponding
interface of the NSA-
002A.
figure 12: connecting analog audio
