Riello Array AR 800 User Manual

11
PRODUCT DESCRIPTION
Item Description
1 Outer frame
2 Leg
3 Ignition transformer
4 Supply pipe
5 Purge valve
6 Gas pipe
7 Gas valve
8 Heat exchanger
9 Pump
10 Water shutoff valve
11 Flow meter
12 Flue pipe
13 Gas shutoff valve
14 Inner frame
15 Vertical return manifold
16 Venturi tubes
17 Horizontal return manifold
18 Relief valve
19 Gas connection
20 Air intake
21 Venting connection
22 Vertical supply manifold
23 Condensate drain
24 Relief valve drain
25 Burner head O-ring
Item Description
26 Burner ange (outer)
27 Burner gasket
28 Sight glass combustion
29 Igniter
30 Burner tube
31 Burner ange (inner)
32 Gasket burner ange
33 Fan
34 Brass connection
35 Brass tting
36 Flange (2”)
37 Check valve
38 Pump
39 Flange (1 1/2”)
40 Flue plastic ange
41 Flue pipe with 90° bend
42 Clapet seal (EPDM)
43 Clapet valve
44 Vertical ue manifold
45 Condensate pipe outlet
46 Condensate trap
47 Condensate pipe inlet
48 Flue gases pressure switch
49 Gas pressure switch

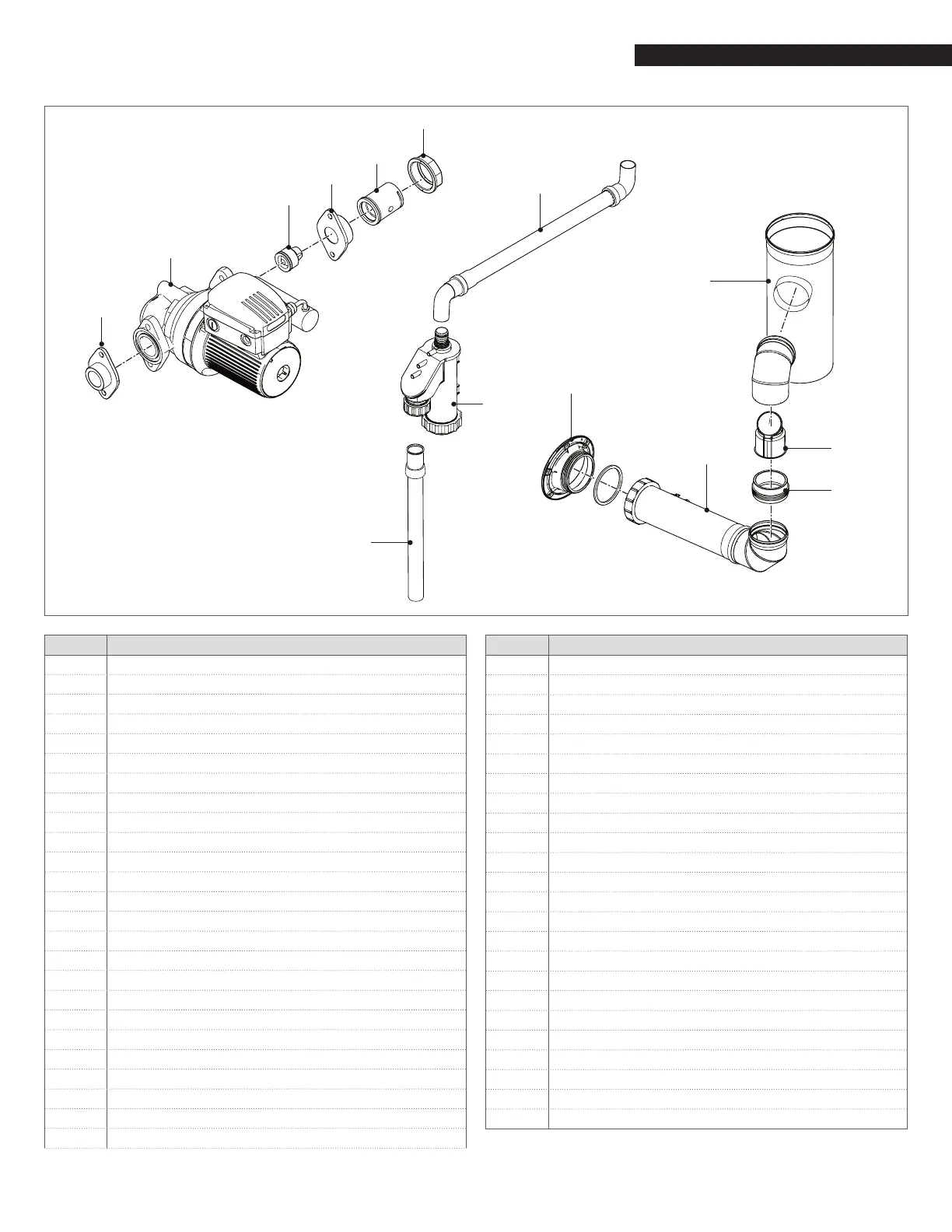

40
41
44
43
42
45
46
47
37
36
38
39
35
34
