8
PRODUCT DESCRIPTION
12
44.8
54.2
53.1
1.96
(*)
29.4”
Ø1.57”
6.7”
7.6”
17”
6”
Ø2.37”
10
4.1
Ø1.15”
5.7
7.211.9
7.9
5.9
Ø6
Ø6
Ø2.5
Ø2.5

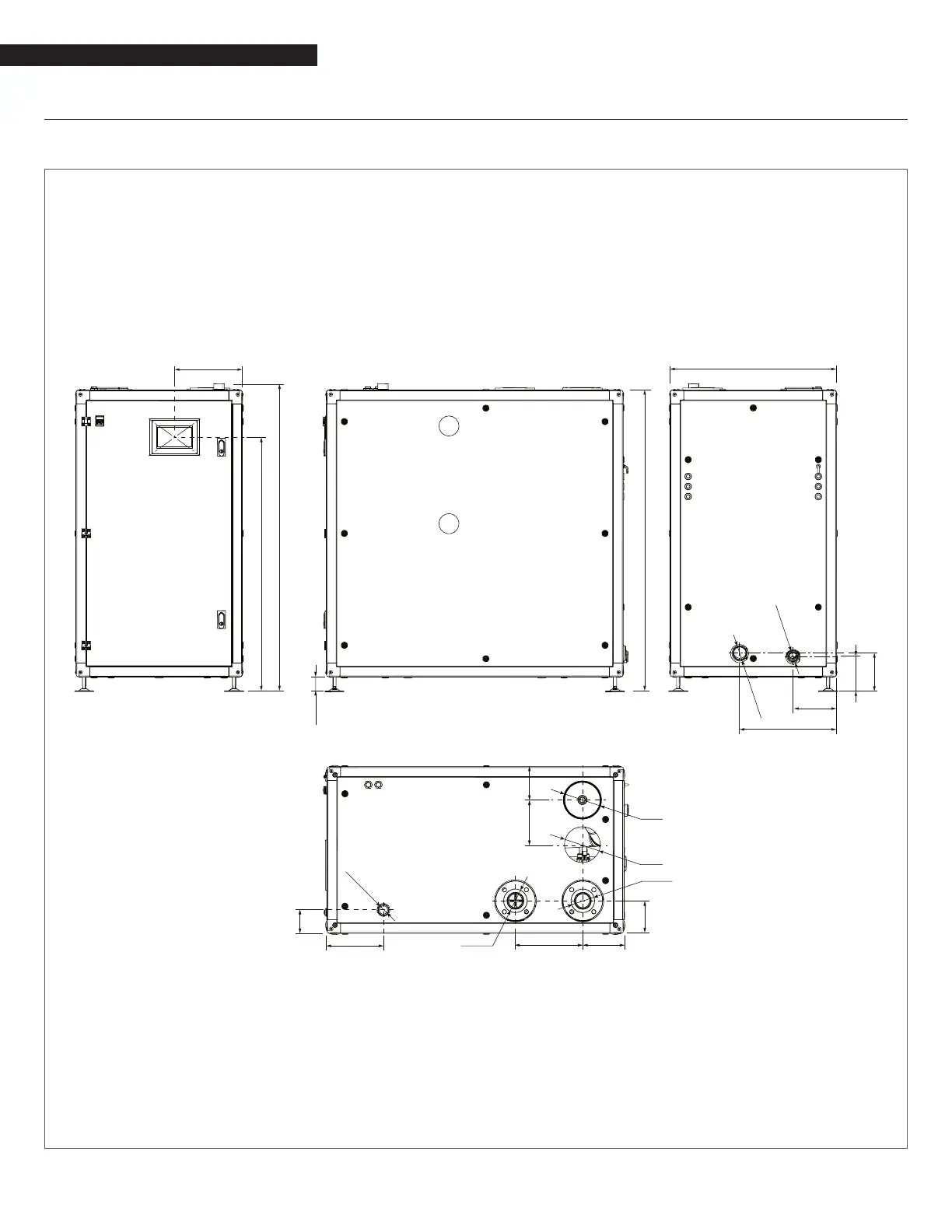

2.7 Size and Connections
ARRAY AR 800
Dimensions are in inches
(*) Mounting feet may be removed during installation to reduce the overall height by 2”. Feet must be re-installed once boiler is in its
nal location.
