INSTALLATION
4.4.2 Setting the Unit
Remove the top and side cardboard panels, the plastic lm and
the polystyrene sheets. Remove the lag screws securing the unit to
the shipping skid. Lift the unit off the shipping skid with a forklift
and position it on the oor in the desired location.
9
WARNING: When lifting or moving the boiler: do not attempt
to manipulate the boiler using the top water anges or any
other component of the boiler.
9
WARNING: When lifting or moving the boiler with a forklift:
make sure the forks are longer than the boiler size (width or
depth) so that the lifting forks stick out as Fig. 4.

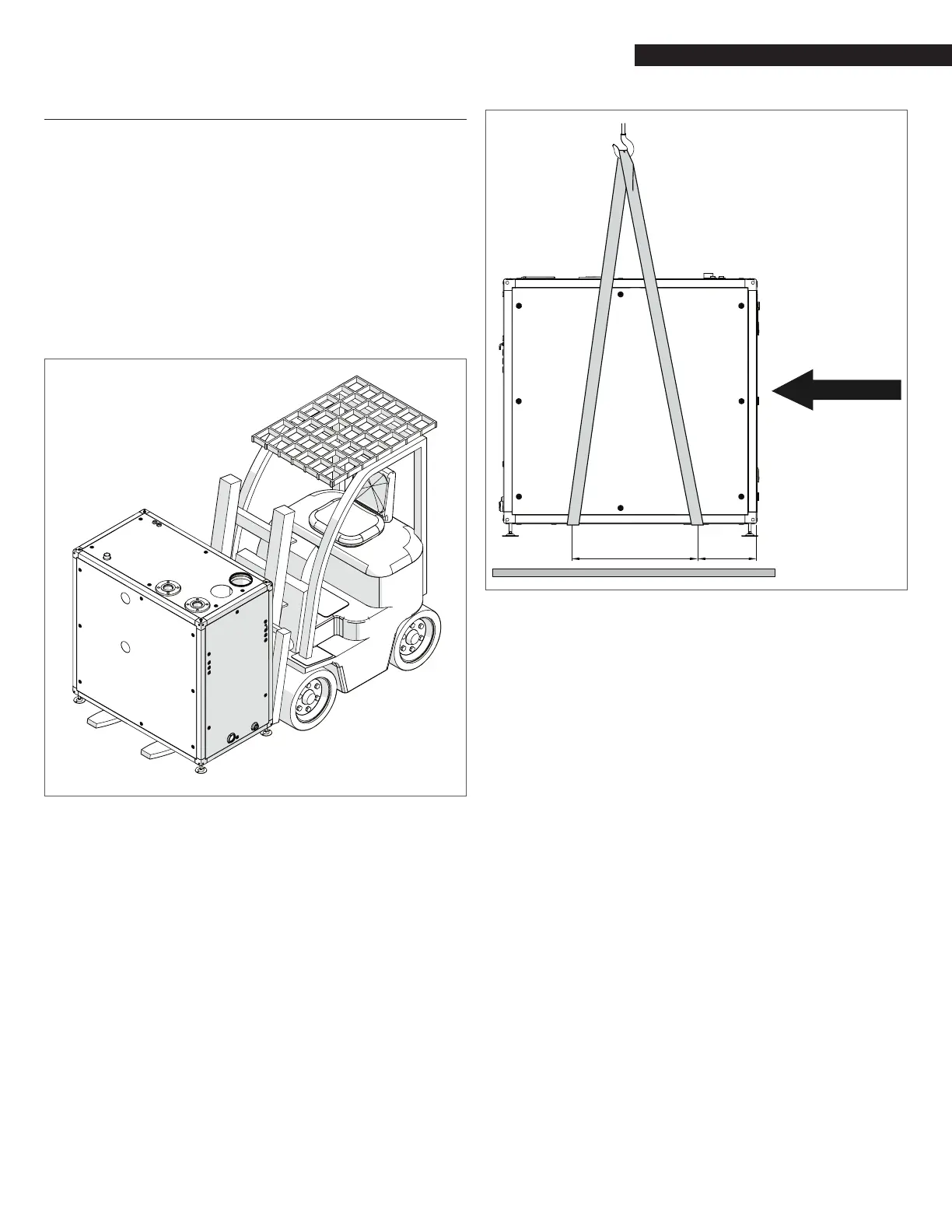

Fig. 4 Array AR 800 Forklift Handling
If a crane is required, the boiler must be lifted through bands.
9
WARNING: When lifting the boiler with crane: use bands or
straps, no chains. Bands must comply with federal, state and
local rules. The bands must be positioned as shown in Fig. 5.
9
WARNING: When lifting the boiler with crane: the bands must
be positioned according to the Fig. 5.
In multiple unit installations, it is important to plan the position
of each unit in advance. Sufcient space for piping connections
and future service/maintenance requirements must also be taken
into consideration. All piping must include ample provisions for
expansion.
FRONT
7.6”31.1”
Fig. 5 Array AR 800 Crane Lifting Handling
