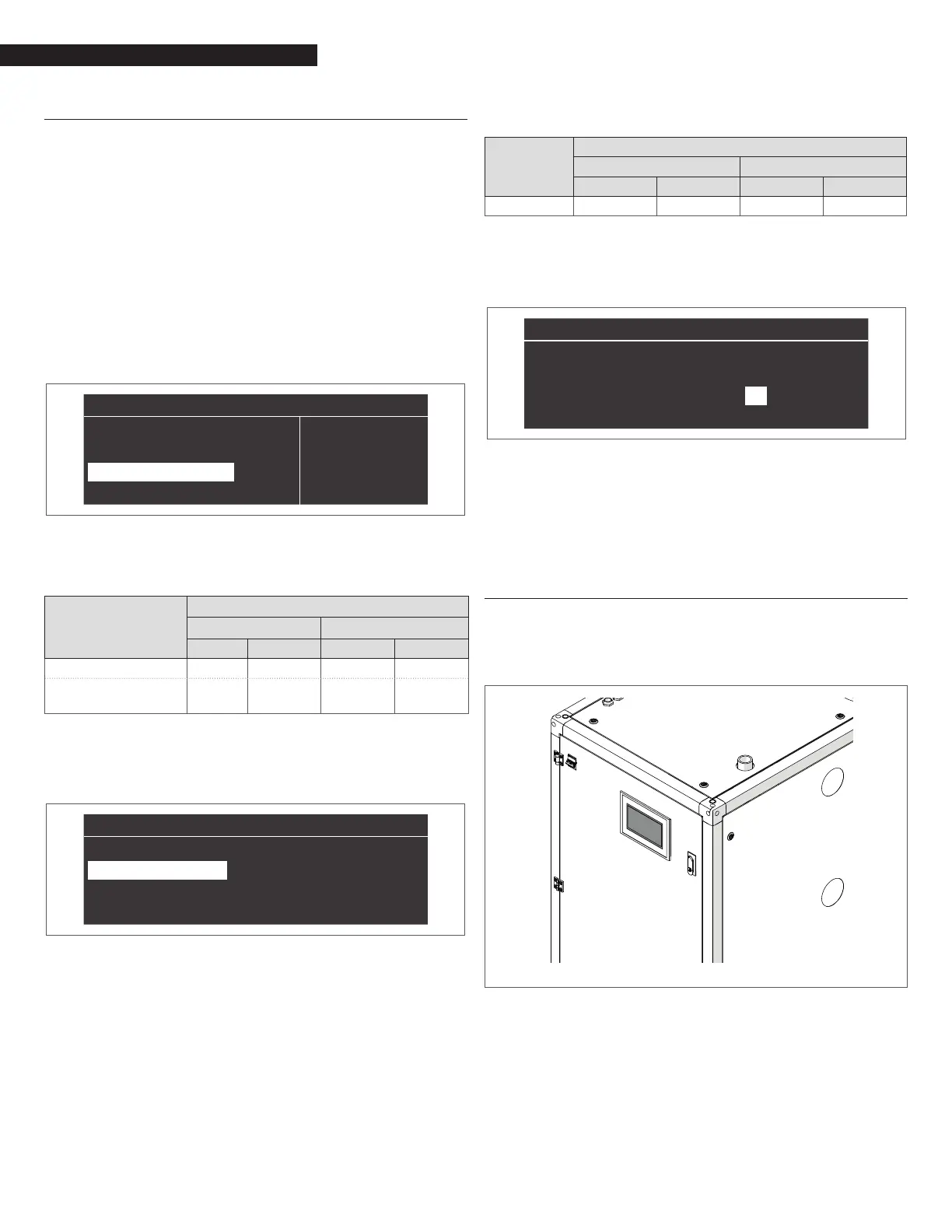

38
OPERATION
6.5 Control board replacement
9
System congurations must be performed only by the Technical
Assistance Service or by personnel authorized by
R.
When replacing the main board, an initial screen with the logo
R is displayed on the next reboot.
The system performs a consistency check between the
conguration data saved on the motherboard and those saved in
the user interface; therefore, when replacing the control interface,
the system can detect an inconsistency between the saved data.
Set the Par. 97 and the Par. 98.
Proceed as follows:
On the home screen of the control panel, press the key
Select "Settings" with the / keys and press the key
Select "Appliance conguration" with the / keys and
press the key
Settings
General Settings
Boiler Settings
Appliance Configuration
Enter the password
Select "(97) IO Conguration" and press the button
With the / keys change the value following what is in
the following table and press the key:
Model
Par. 97
Managing Dependent
NG LPG NG LPG
AR 800 22 22 21 21
AR 800
WITH AIR DAMPER
22 (*) 22 (*)
Not
Applicable
Not
Applicable
9
(*) Par. 126 = 10 (DEFAULT 6)
Press the key, select "(98) Appliance Settings" and press
the key
Appliance Configuration
(97) IO Configuration
22
(98) Appliance Settings
80
Configuration Confirmed
No
With the / keys change the value following what is in
the following table and press the key:
Model
Par. 98
Managing Dependent
NG LPG NG LPG
AR 800 80 81 80 81
Press the key, select "Cong. Conrmed" and press the
key
With the / keys change the value to "Yes" and press
the key
Appliance Configuration
(97) IO Configuration
22
(98) Appliance Settings
80
Configuration Confirmed
Yes
At this point the systems starts an application update process.
Once this is nished, the menu "Settings" appears on the menu.
Press until you return to the home screen
An error message is displayed for a few seconds and then the
display returns to its normal state.
6.6 Touchscreen Control Panel replacement
9
System congurations must be performed only by the Technical
Assistance Service or by personnel authorized by
R.
When replacing Touchscreen Control Panel no setting actions are
required.
