COMMISSIONING

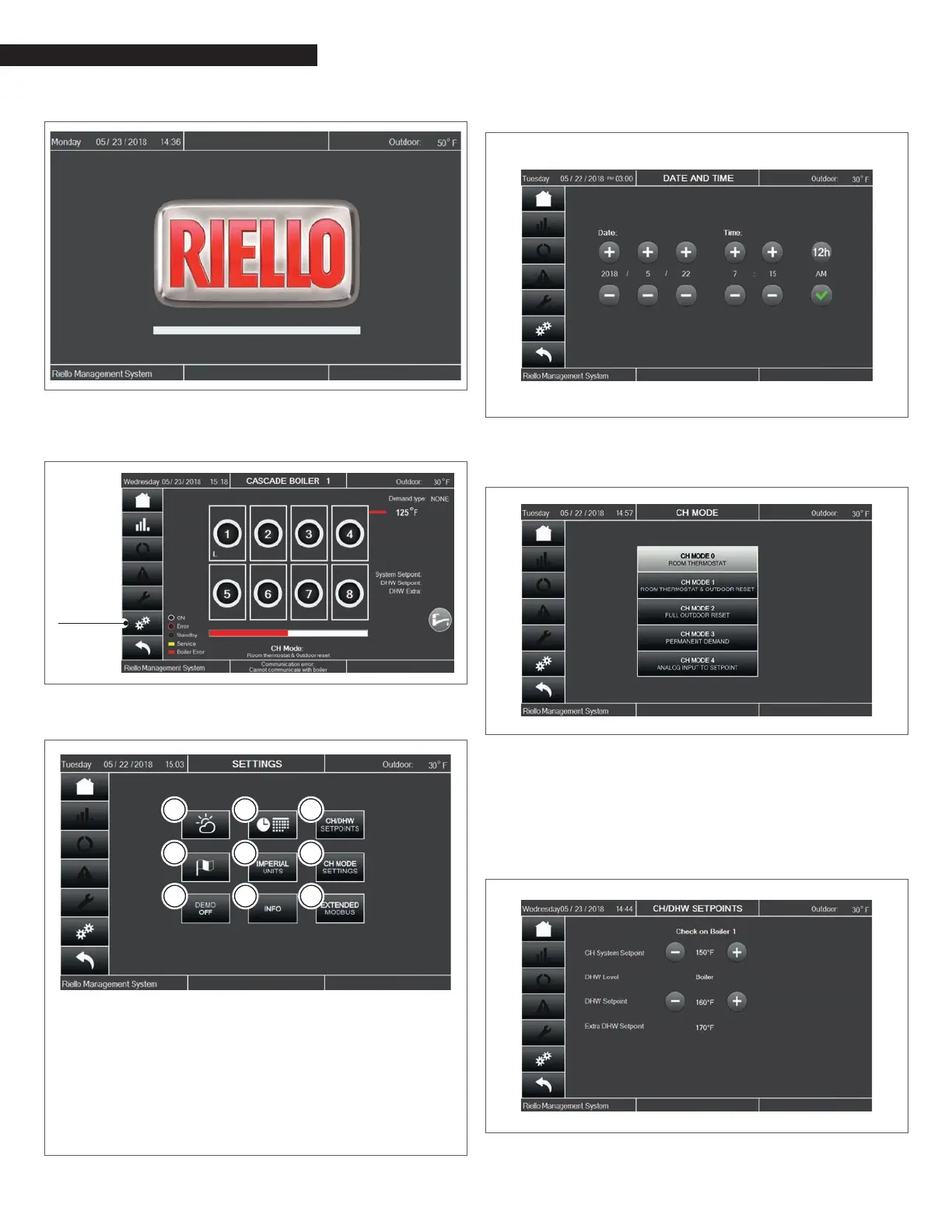

Fig. 38
Touchscreen Control Panel Stand-by screen
By touching the logo, the Cascade screen will appear:
Settings
Fig. 39
Cascade Screen
− Pushing the Settings button, the Settings screen will appear:
1 Reset curve
2 Date & Time
3 CH/DHW setpoint change
4 Language
5 Units conversion
6 CH mode selection
7 Software demo
8 Software data
9 Modbus conguration (do not touch)
1 2 3
4 5 6
7 8 9
Fig. 40
Settings screen
− Date and Time can be adjusted through the screen below:
Fig. 41
Date & Time screen
− After the Date&Time setting, CH modes can be selected
accessing the CH MODE settings screen below:
Fig. 42
Mode Screen
Five CH modes are available, but only four are mentioned in the
following text:
− CH Mode 0 - Room Thermostat (Enable/Disable): when
the room thermostat closes, the system switches ON.
Temperature Setpoint is manually set on the CH/DHW
Setpoints screen (through the Settings screen).
Fig. 43
CH/DHW Setpoints
− CH Mode 1 - Room Themostat & Outdoor Reset: this
