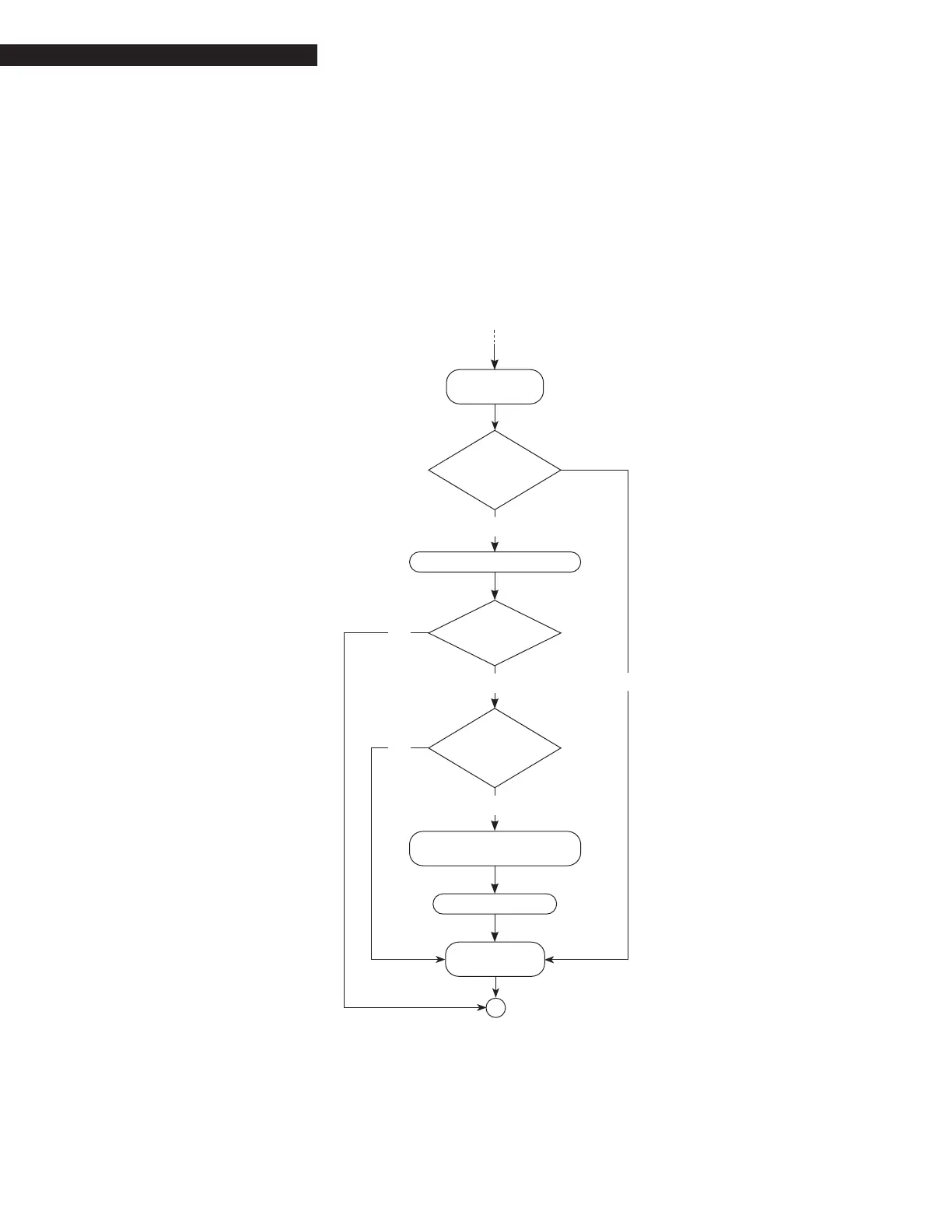

MODULE CASCADE (STAND-ALONE BOILER): ADD/REMOVE MODULE
Add module
function
*
Delay period
for starting new
module is 0?
Air damper
open?
Are we allowed
to add another
dependent?
YES
YES
YES
Add dependent to the
cascade demand
Open Air damper
Reload delay time
Update
demand flags
NO
NO
NO
*
