Riello RL 50 - Appendix - Electrical panel layout; ELECTRICAL EQUIPMENT FACTORY-SET; TO BE COMPLETED BY THE INSTALLER

6423
34
GB
Appendix - Electrical panel layout

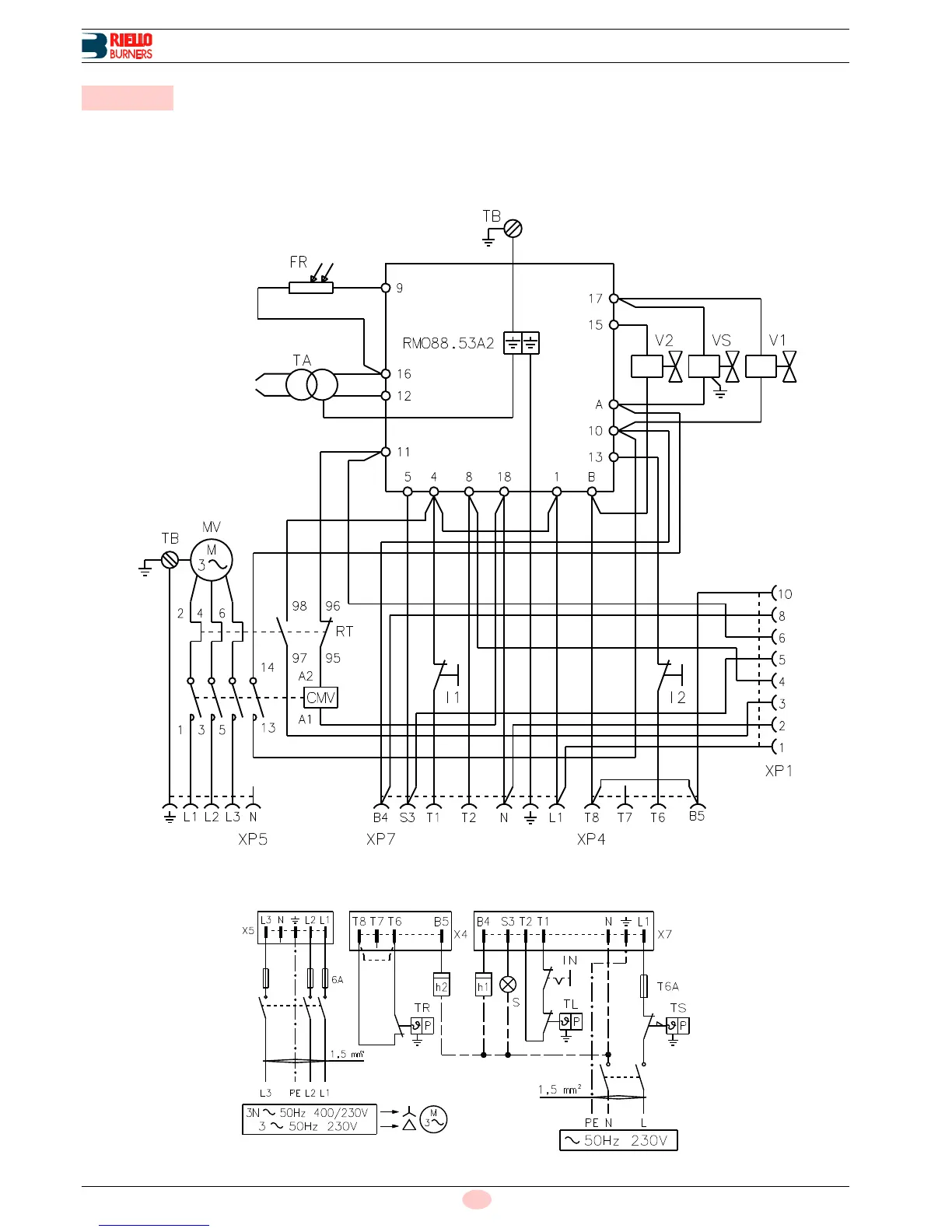

ELECTRICAL EQUIPMENT FACTORY-SET
For remote-reset, connect a push-button switch (NO) between
terminal 3 and neutral of the control box (terminals 15, 16, 17 and
18).
TO BE COMPLETED BY THE INSTALLER
B Appendix - Electrical panel layout
D3227
Fig. 3
D3228
Fig. 4
