Appendix - Accessories (optional)
LONG COMBUSTION HEAD KIT
RADIO DISTURBANCE PROTECTION KIT
If the burner is installed in places particularly subject to radio dis-
turbance (emission of signals exceeding 10 V/m) owing to the
presence of an INVERTER, or in applications where the length of
the thermostat connections exceeds 20 metres, a protection kit is
available as an interface between the control box and the burner.
DEGASSING UNIT
It may occur that a certain amount of air is contained in the fuel
sucked up by the pump.
This air may originate from the fuel itself as a consequence of de-
pressurisation or air leaking past imperfect seals.
In double-pipe systems, the air returns to the tank from the return
pipe; in single-pipe systems, the air remains in circulation causing
pressure variations in the pump and burner malfunctions.
For this reason, we advise installing a degassing unit near the
burner in single-pipe installations.
Degassing units are provided in two versions:
SPACER KIT
If the burner head penetration into the combustion chamber
needs reducing, varying thickness spacer is available:
CONNECTION FLANGE KIT
A kit is available for use where the burner opening on the boiler
is of excessive diameter
SOUND PROOFING BOX
If noise emission needs reducing even further, sound-proofing
boxes is available:
PC INTERFACE KIT
To connect the control box to a personal computer for the trans-
mission of operation, fault signals and detailed service informa-
tion, an interface adapter with PC software IS available.

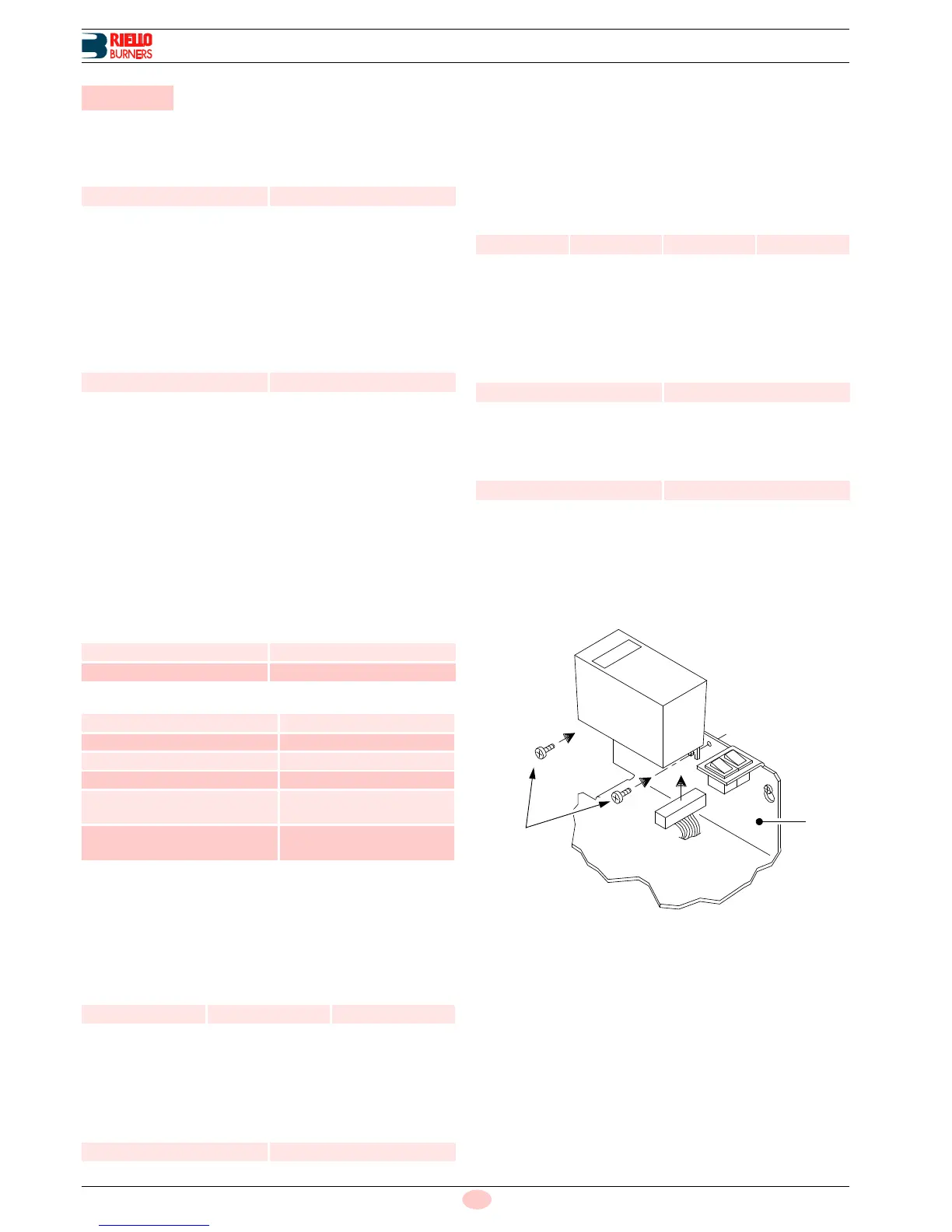

STATUS
Assembly
The burners are preset to accept the Status. To assemble, pro-
ceed as follows (Fig. 1):
connect Status 1) using connector 2) fitted on the bracket 3).
Fasten Status to the bracket using the screws 4) supplied
with the kit.
Key Fig. 1
1 Status
2 Connector
3 Bracket of the burner
4 Fixing screws
A Appendix - Accessories (optional)
Burner Code
RL 50 3010075
Burner Code
RL 50 3010386
Burner Code
RL 50 (without filter) 20034277
RL 5050 (with filter) 20034281
Degassing unit characteristics
Burner output 80 kg/h max
Fuel pressure 0.7 bar max
Ambient temperature 40 °C max
Fuel temperature 40 °C max
Attachment connectors
(without filter)
FF G 1/4 tank side
FM G 3/8 conic burner side
Attachment connectors
(with filter)
FF G 3/8 tank side
FM G3/8 conic burner side
Burner
Spacer Thickness S
(mm)
Code
RL 50 90 3010095
Burner Code
RL 50 3010138
Burner Box type
Average noise
[dB(A)](*)
Code
RL 50 C1/3 10 3010403
Burner Code
RL 50 3002719
Burner Code
RL 50 3010322
