Riello RTC-80 Series User Manual

14
INSTALLATION

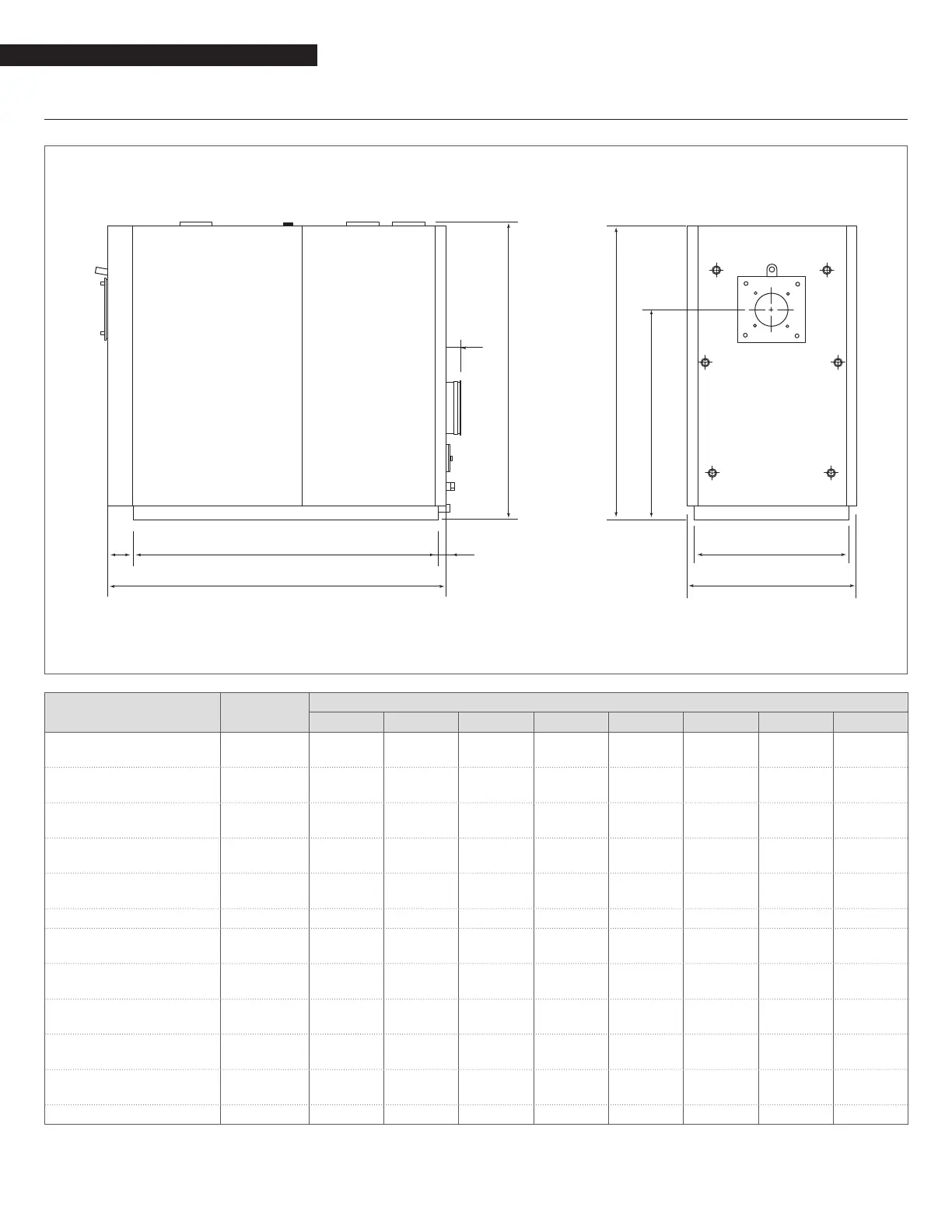

2.2 Overall dimensions and weights
AEC L1
L
F
D
H1
H
B
Description Unit
RTC-80
1000 1300 1700 2300 3000 3800 4700 5500
A: Base width inch (mm)
29 1/2
(750)
29 1/2
(750)
31 1/8
(790)
31 1/8
(790)
38 9/16
(980)
38 9/16
(980)
42 1/8
(1070)
44 1/2
(1130)
B: Overall width inch (mm)
32 5/16
(820)
32 5/16
(820)
35 1/16
(890)
35 1/16
(890)
42 1/2
(1080)
42 1/2
(1080)
46 1/16
(1170)
48 1/4
(1225)
C: Length base to front inch (mm)
4 15/16
(125)
4 15/16
(125)
5 1/8 (130) 5 1/8 (130) 5 1/2 (140) 5 1/2 (140) 6 1/8 (155) 5 7/8 (150)
D: Height of burner plate inch (mm)
40 9/16
(1030)
40 9/16
(1030)
48 5/8
(1235)
48 5/8
(1235)
54 3/4
(1390)
54 3/4
(1390)
58 7/8
(1495)
62 5/8
(1590)
E: Length base to rear inch (mm) 1 9/16 (40) 1 9/16 (40) 1 3/8 (35) 1 3/8 (35) 2 3/4 (70) 2 3/4 (70) 3 1/8 (80)
3 15/16
(100)
F: Flue connection depth inch (mm) 2 3/8 (60) 2 3/8 (60) 3 1/8 (80) 3 1/8 (80) 3 9/16 (90) 3 9/16 (90) 3 1/8 (80) 3 1/8 (80)
H – Height of water
ttings
inch (mm)
57 1/16
(1450)
57 1/16
(1450)
66 3/4
(1695)
66 3/4
(1695)
75 (1905) 75 (1905)
80 5/16
(2040)
85 13/16
(2180)
H1 – Boiler height inch (mm)
56 9/16
(1435)
56 9/16
(1435)
66 1/8
(1680)
66 1/8
(1680)
74 7/16
(1890)
74 7/16
(1890)
79 3/4
(2025)
85 1/4
(2165)
L – Length inch (mm)
65 3/16
(1655)
73 1/16
(1855)
80 1/8
(2035)
88 (2235)
103 1/8
(2620)
113 (2870)
120 11/16
(3065)
121 1/4
(3080)
L1 – Base length inch (mm)
58 11/16
(1490)
66 9/16
(1690)
73 7/16
(1865)
81 1/2
(2070)
94 7/8
(2410)
104 3/4
(2660)
111 7/16
(2830)
111 7/16
(2830)
Weight of boiler lbs (kg)
1676
(760)
1786
(810)
2679
(1215)
2965
(1345)
4167
(1890)
4777
(2167)
5908
(2680)
6834
(3100)
Weight of paneling lbs (kg) 132 (60) 154 (70) 198 (90) 264 (120) 308 (140) 352 (160) 473 (215) 506 (230)
