42
INSTALLATION

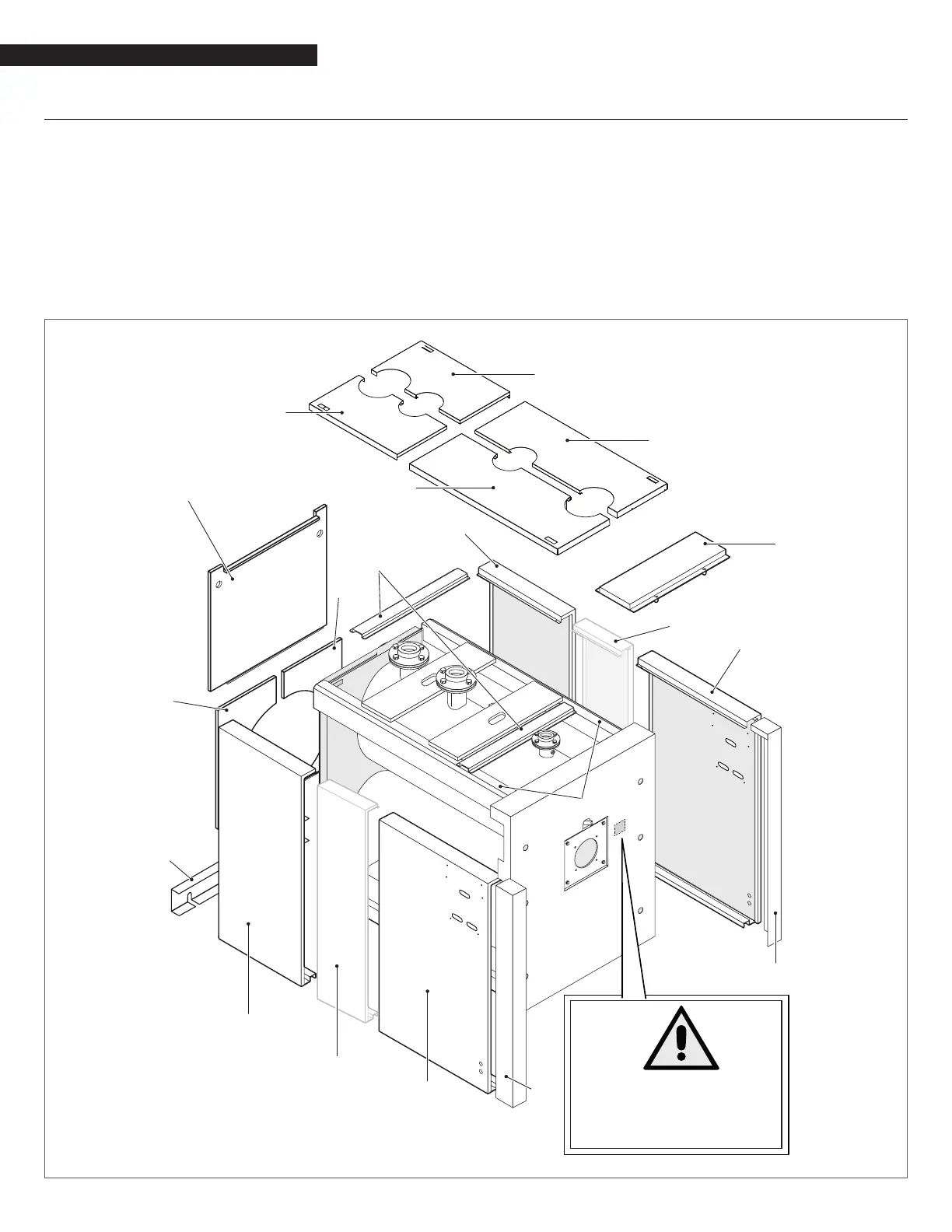

2.17 Fitting the casing panels
Proceed as follows to t the boiler casing panels:
Attach the front side panels ((2) and (3)) and rear side panels ((4)
and (5)) over the boiler frame (1) and to the top side beams.
On models RTC 1700-80, RTC 2300-80, RTC 3000-80, RTC 3800-80,
RTC 4700-80, RTC 5500-80 also t side panels (6) and (7).
− Secure the side panels in place using the top cross beams
(8) and the screws provided
− Fit the top rear panel (9), the bottom rear bracket (10) and
then the bottom rear panels (11) and (12).
− Fit the front top panel (13)
− Fit the top panels (14), (15), (16) and (17)
− Smaller models have only two top panels, one over the
right and one over the left of the boiler
− Finally, t the front trim panels (18) and (19).
1
2
3
4
5
6
7
8
11
12
9
14
15
16
17
18
19
WARNING
THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS
INCLUDING CERAMIC FIBER, WHICH IS KNOWN TO
THE STATE OF CALIFORNIA TO CAUSE CANCER.
FOR MORE INFORMATION GO TO
www.P65Warnings.ca.gov
20154680_E1
