Use the arrow keys to increase or decrease the center frequency or the scanning range.
Watch the chart zooming in or out, or changing its position. Use the (Functional key)
and (Cursor up) or (Cursor down) key combination to zoom the vertical scale

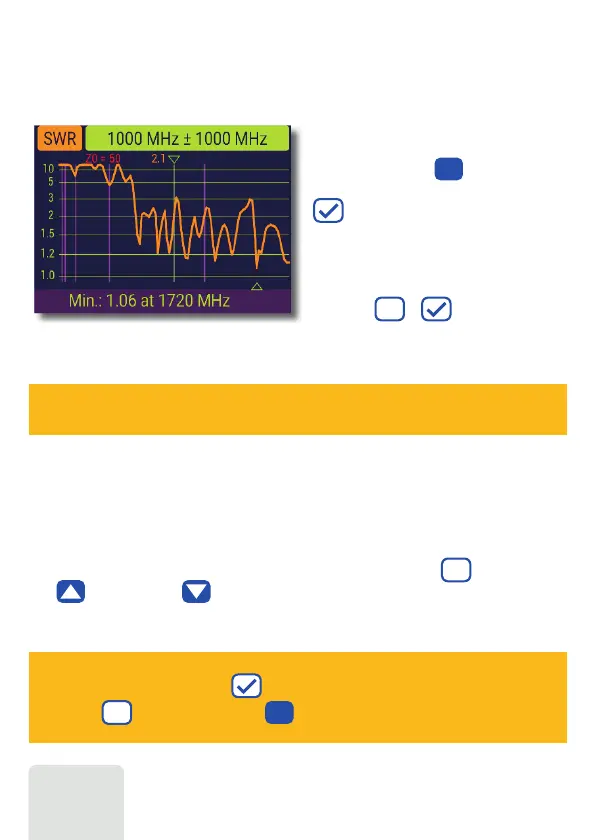

Once your antenna is connected to the
analyzer, it is time to measure its charac-
teristics. Press the (SWR chart) key
to open the SWR chart screen, then press
(OK) to start a new measurement.
A few moments later, the result will be
displayed on the analyzer’s screen.
Press the + key combination to
run a continuous sweep.
8
User’s manual
4
SWR chart
Chart ZOOM
F
F
Do not forget to press the (OK) key for the new measurement to start.
Press (Functional key) and to quickly choose a radio amateur band.
0
F
A small triangle at the bottom of the chart corresponds to a point at which the
SWR reaches its minimum.
