RIGOL Chapter 3 Remote Control
3-8 DG1000Z User’s Guide
Remote Control via GPIB (Option)
1. Connect the device
Connect the generator to your computer using a USB to GPIB interface converter
(Option).
Note: please make sure that a GPIB card has been installed to your PC. Connet
the USB terminal of the USB to GPIB interface converter to the USB Host
interface at the front panel of the generator and the GPIB terminal of it to the
GPIB card terminal of the PC.
2. Install the driver of GPIB card
Install the driver of the GPIB card which has been connected to the PC correctly.
3. Set the GPIB address
Press Utility I/O Config GPIB to set the GPIB address of the generator.
4. Search device resource

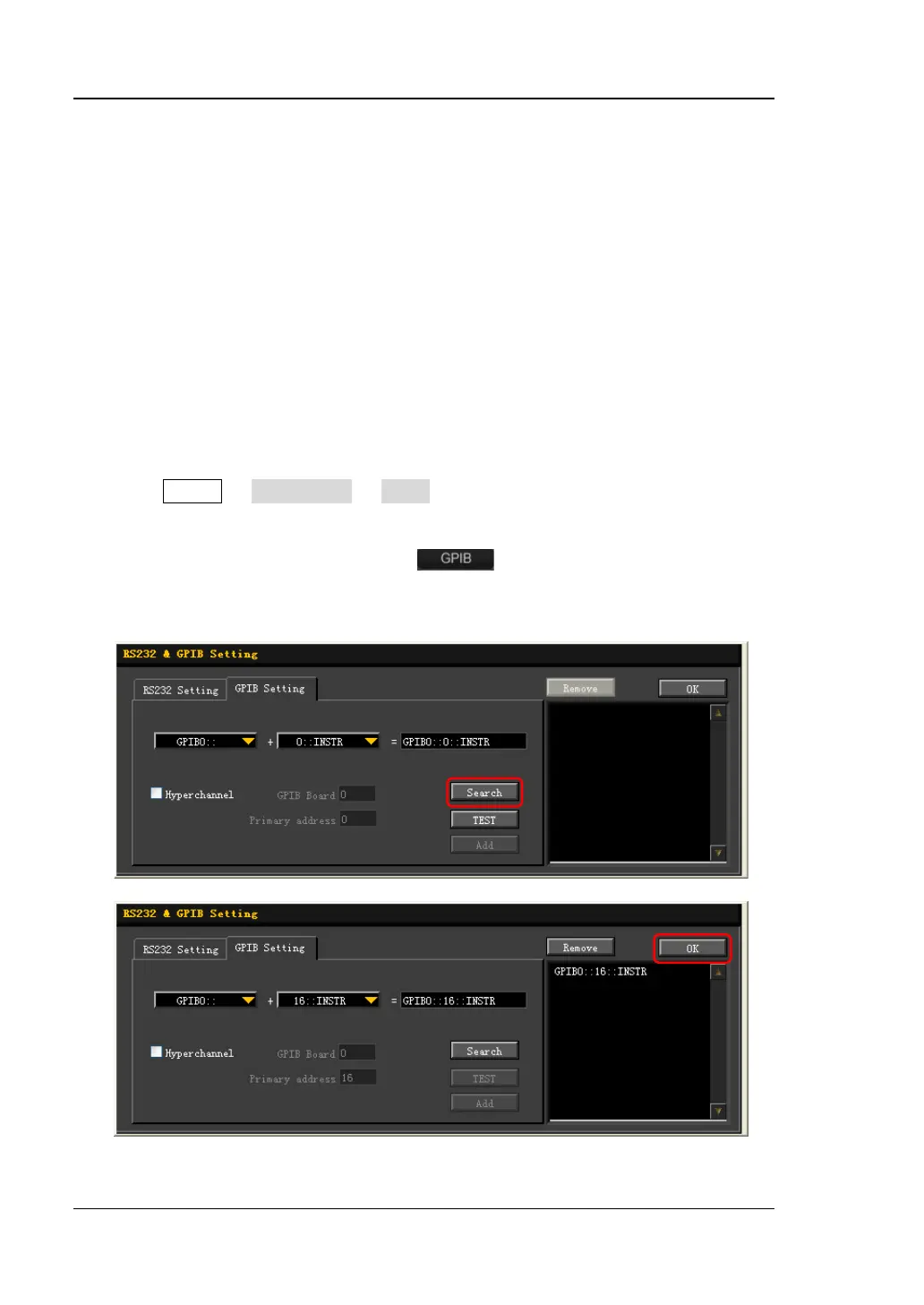

Start up the Ultra Sigma and click
to open the panel as shown in
figure (a). Click “Search” and the software will search the GPIB instrument
resources connected to the PC. The device resources found will be displayed on
the right side of the panel as shown in figure (b). Click “OK” to add the resource.
(a)
(b)
