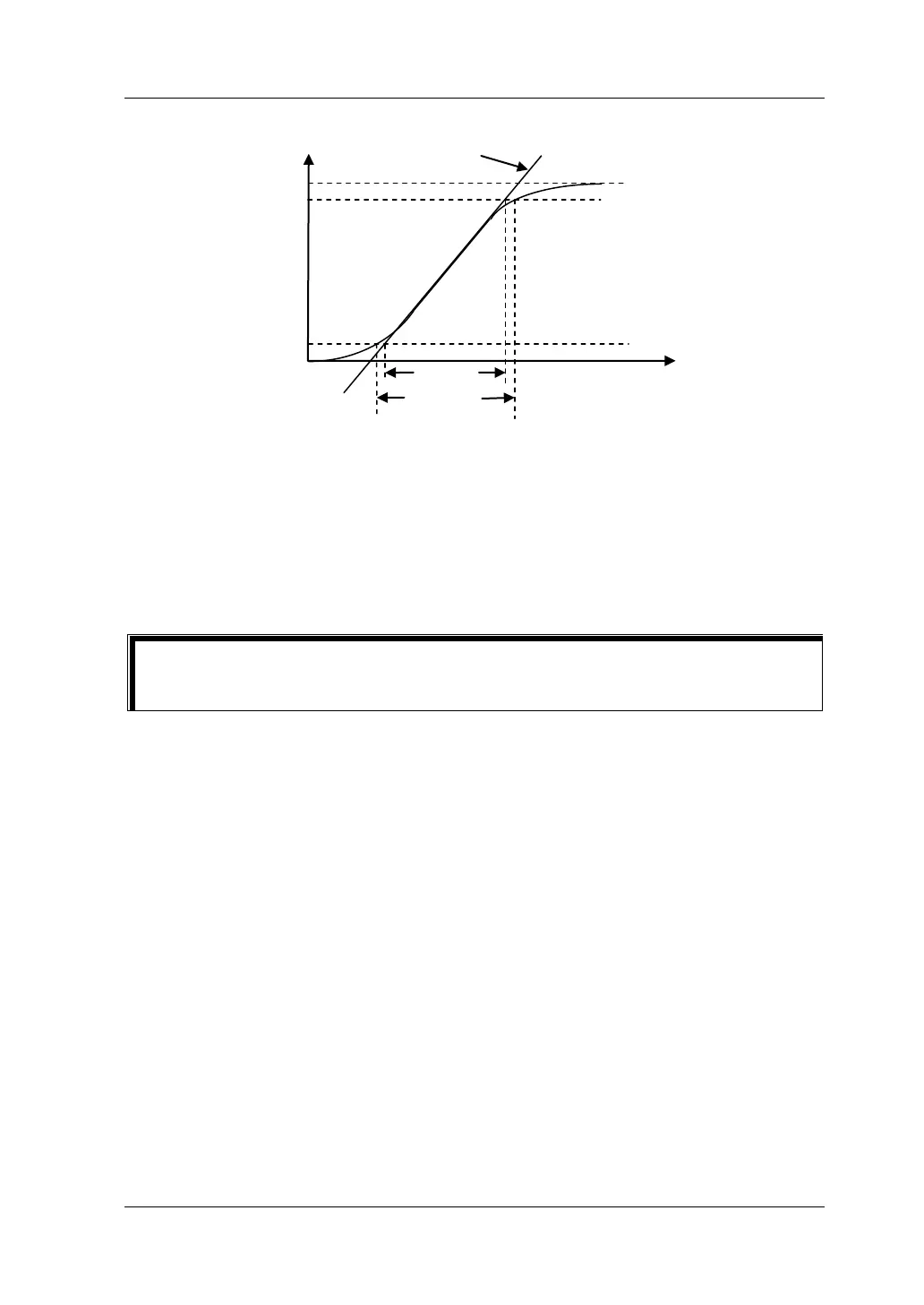

Figure 2-46 Slew Rate and Transition Time
Note: In case where the transition from one setting to another is large, the
minimum transition time can be calculated by dividing the current transition by the
slew rate. In case where the transition from one setting to another is small, the small
signal bandwidth of the load limits the minimum transition time. Due to the limitation,
the actual transition time is longer than the expected time calculated based on the
formula.
Tip
The actual transition time is defined as the time required for the input to change
from 10% to 90% or from 90% to 10% of the input values.
I
Expected
Time
Actual Time
t
90%
100%
10%
Slew Rate
