Rigol DL3000 User Manual

RIGOL Chapter 3 Remote Control
3-8 DL3000 User’s Guide
Remote Control via GPIB
1. Connect the load to the PC
Use the USB-GPIB interface converter to extend the GPIB interface for the load,
and then use the GPIB cable to connect the load to the PC to realize remote
control.
2. Install the driver of GPIB card
Correctly install the driver of the GPIB card which has been connected to the PC.
3. Set the GPIB address
Set the GPIB address of the load according to the description in "Set the GPIB
address".

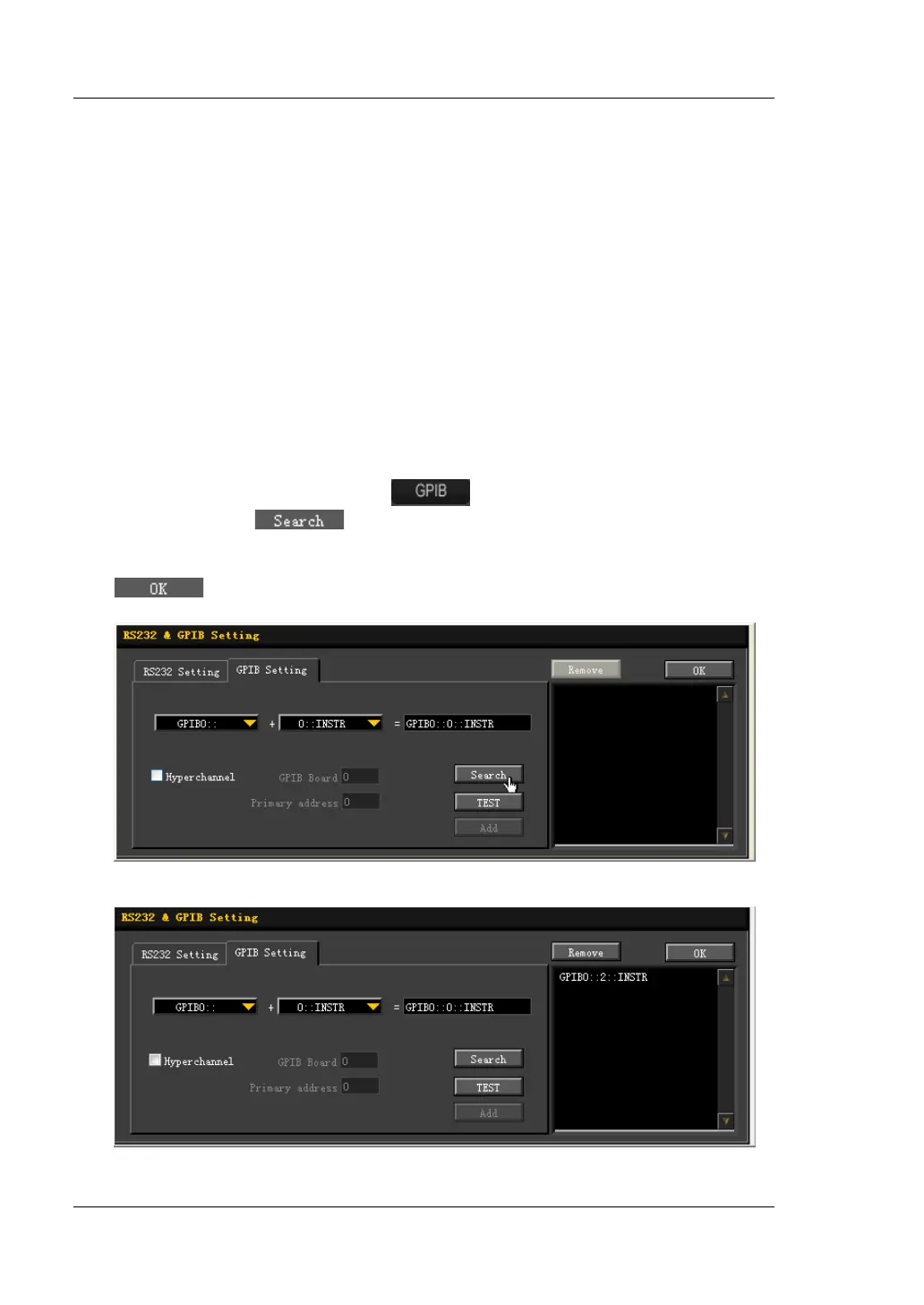

4. Search for the device resource
Start Ultra Sigma, and then click
. A window is displayed as shown in
Figure (a). Click
and the software searches for the instrument
resource currently connected to the PC via the GPIB interface. The resource
found is displayed at the right of the window as shown in Figure (b). Click
to add it.
(a)
(b)
