Chapter 3 Remote Control RIGOL
DL3000 User’s Guide 3-7

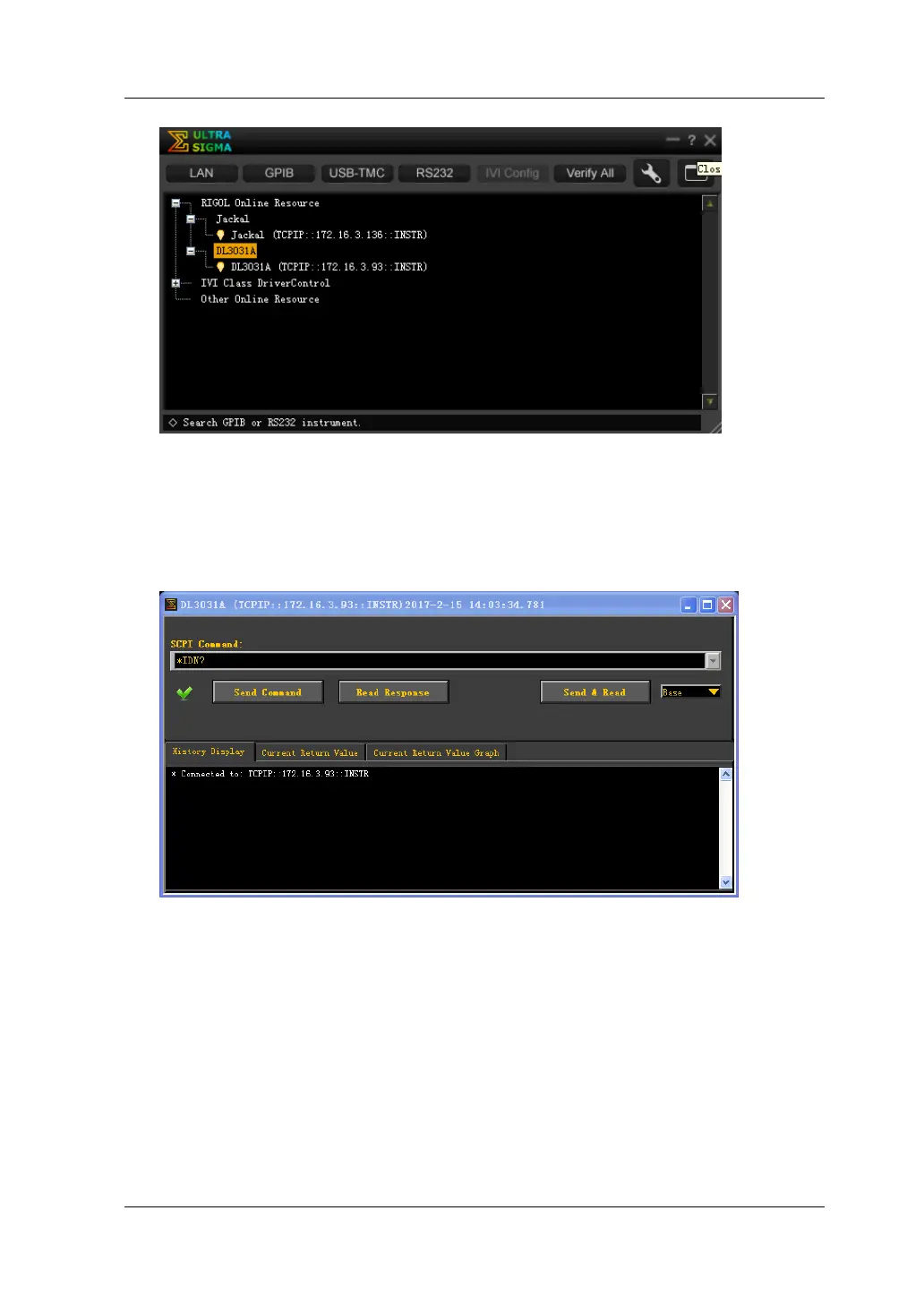

5. Control the instrument remotely
Right-click the resource name "DL3031A (TCPIP::172.16.3.93::INSTR)", and
select "SCPI Panel Control" to open the remote command control panel, as
shown in the following figure. Then you can send commands and read data
through the panel.
6. Load LXI webpage
The load conforms to LXI Core 2011 Device standard. You can load LXI webpage
through Ultra Sigma (right-click the resource name and select LXI-Web; or
directly input the IP address in the browser). Various important information
about the instrument (including the model, manufacturer, serial number,
description, MAC address, and IP address) will be displayed on the webpage.
