Chapter 1 Quick Start RIGOL
DL3000 User’s Guide 1-15
User Interface
The user interface of the DL3000 series consists of main interface, guide interface,
and function interface. In the main interface, you can set and view the information
about the channel input; in the guide interface, you can directly set the parameters
according to the guide diagram and view the parameter information; in the function
interface (including the waveform interface), you can set and view the information
about the functions. When the instrument powers on, it enters the main interface by
default. This section mainly introduces the main interface of the electronic load. The
guide interface and function interface will be introduced in "Front Panel
Operations".

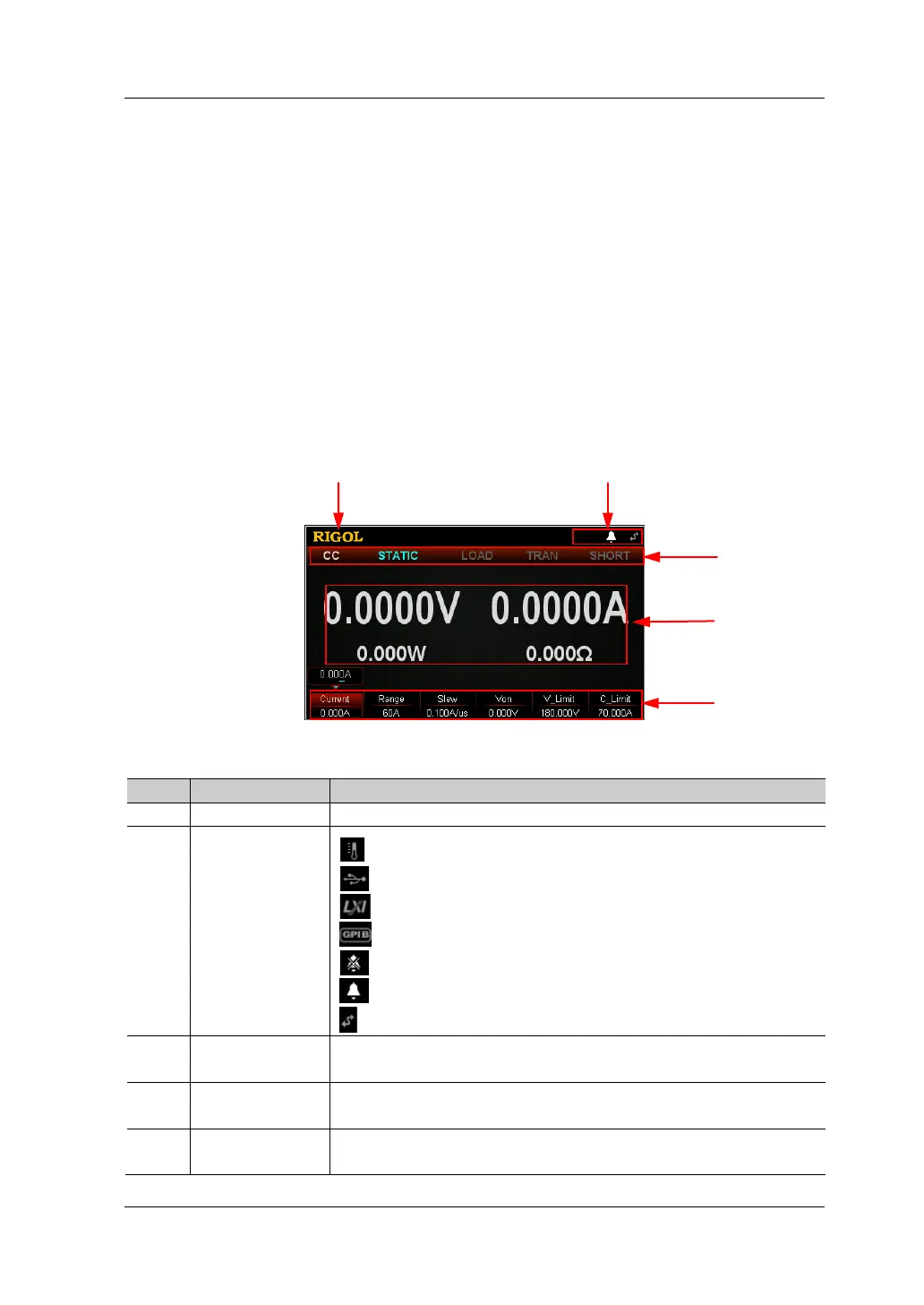

The main interface is shown in Figure 1-8. For the descriptions of the main interface,
refer to Table 1-3.
Figure 1-8 Main Interface
Table 1-3 Main Interface Description
1
Company Logo
2
System Status
Icon
: indicates that the overtemperature protection occurs.
: indicates that the USB device is recognized.
: indicates that the network is connected.
: indicates that GPIB is connected.
: indicates that the beeper is off.
: indicates that the beeper is on.
: indicates that the instrument is remotely controlled.
3 Function State
Displays the function state of the load in a real-time
manner.
4
Actual Input
Value
Displays the actual input voltage, sink current, etc.
5 Menu Item
Displays the function menu. Press the specified key below
to select the specified menu item.
1
2
3
4
