RIGOL Chapter 3 Remote Control
3-12 DL3000 User’s Guide
Sigma software match those of the RS232 interface of the instrument.

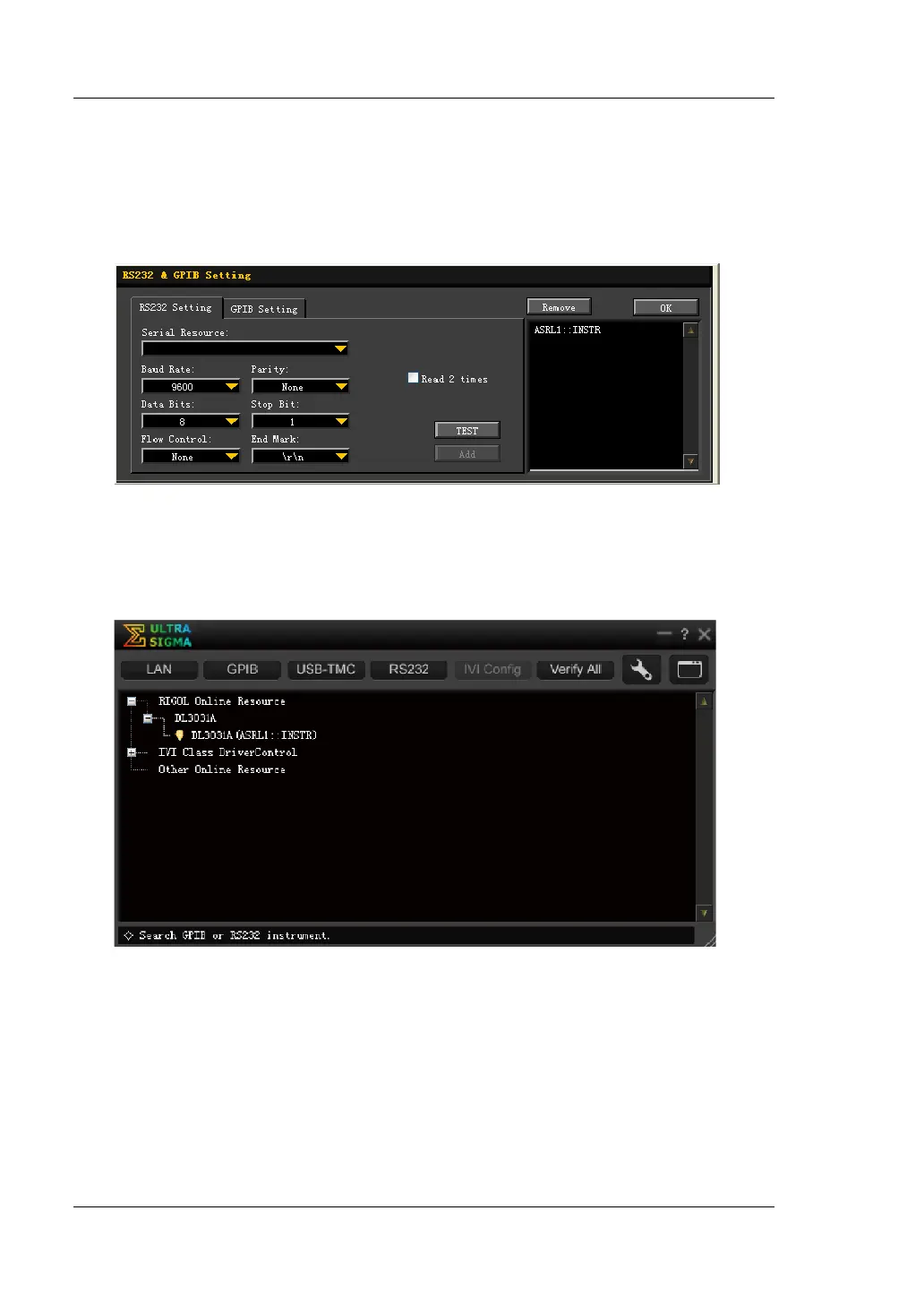

In the dialog box shown in Figure (b), click OK. Then the "Add" button in the
"RS232 Setting" tab will be enabled. Click Add, and then the currently selected
instrument resource will be displayed at the right section of the window, as
shown in Figure (c). Then, click OK to add the instrument resource.
(c)
4. View the device resource
The searched instrument resource will be under the directory of "RIGOL Online
Resource", as shown in the following figure.
5. Control the instrument remotely
Right-click the resource name "DL3031A (ASRL1::INSTR)", and select "SCPI
Panel Control" to open the remote command control panel, as shown in the
following figure. Then you can send commands and read data through the
panel.
