RIGOL Chapter 6 Appendix
6-2 DL3000 User’s Guide
those models without A (DL3021/DL3031) are different.
(3) For all the accessories and options, please contact the local office of RIGOL.

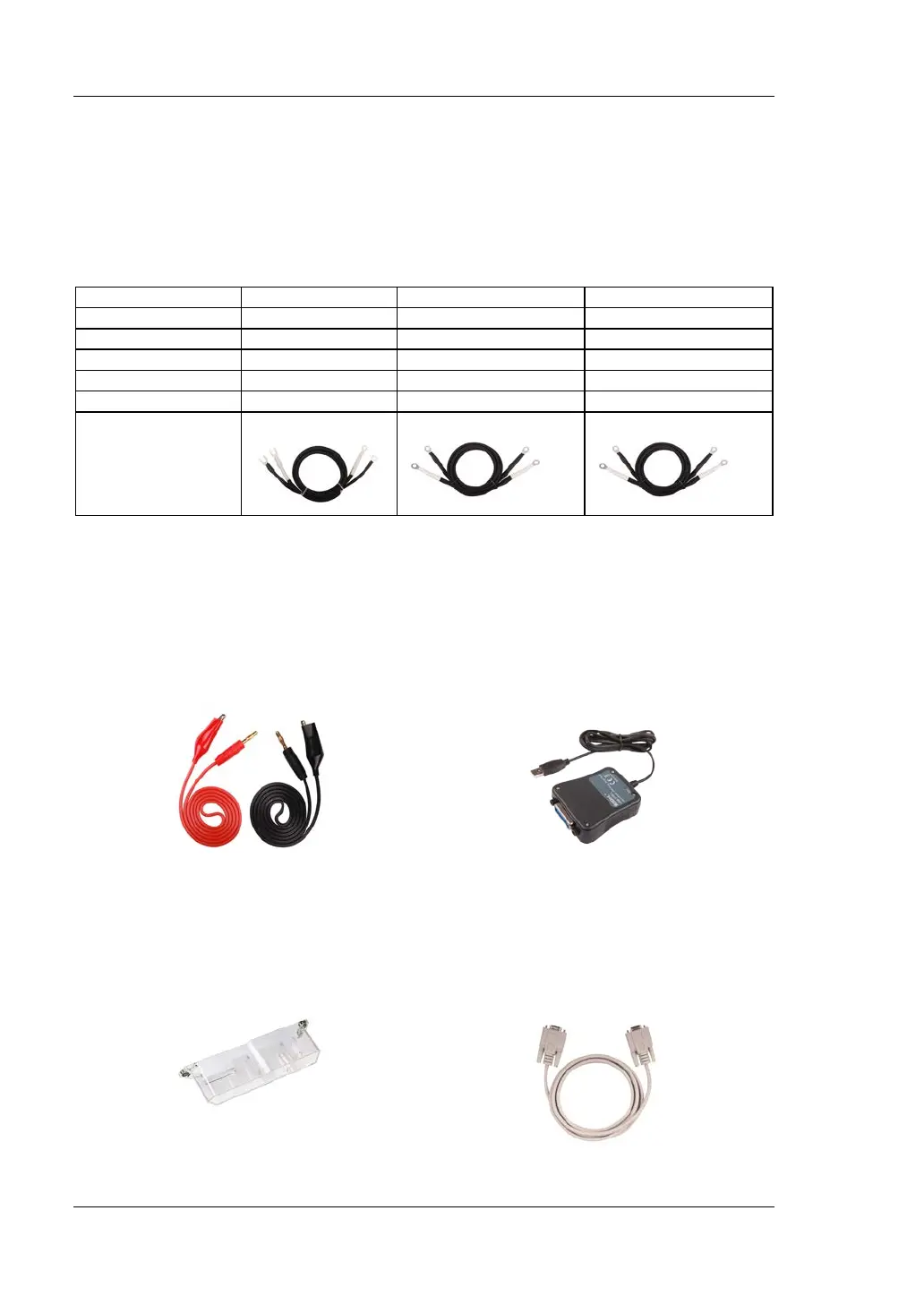

Accessories Description
20 A/40 A/60 A Test Lead
Model 20 A Test Lead 40 A Test Lead 60 A Test Lead
Maximum Current
20 A 40 A 60 A
Maximum Voltage
150 V
150 V
150 V
Terminal M8/M8 M8/M8 M8/M8
Wire Gauge
AWG14 AWG14×2 AWG14×3
Length 780 mm 780 mm 780 mm
Exterior Design
Sense Cable
Enable the Sense function. Then, use the
sense cables to connect the sense terminals
and the output terminals of the DUT to
compensate for the voltage drop caused by
the load leads.
Cable length: 780 mm
USB-GPIB Interface Converter
Use the USB-GPIB interface converter to
extend the GPIB interface, and then use the
GPIB cable to connect the load to the PC to
build communication with the PC for remote
control.
Shield
For safety considerations, a shield shall be
installed.
9-Pin RS232 Cable
To realize remote control, use the 9-pin RS232
cable to build communication between the load
and the PC via the RS232 interface on the rear
panel of the load.
