Rigol DL3000 User Manual

Chapter 1 Quick Start RIGOL
DL3000 User’s Guide 1-7

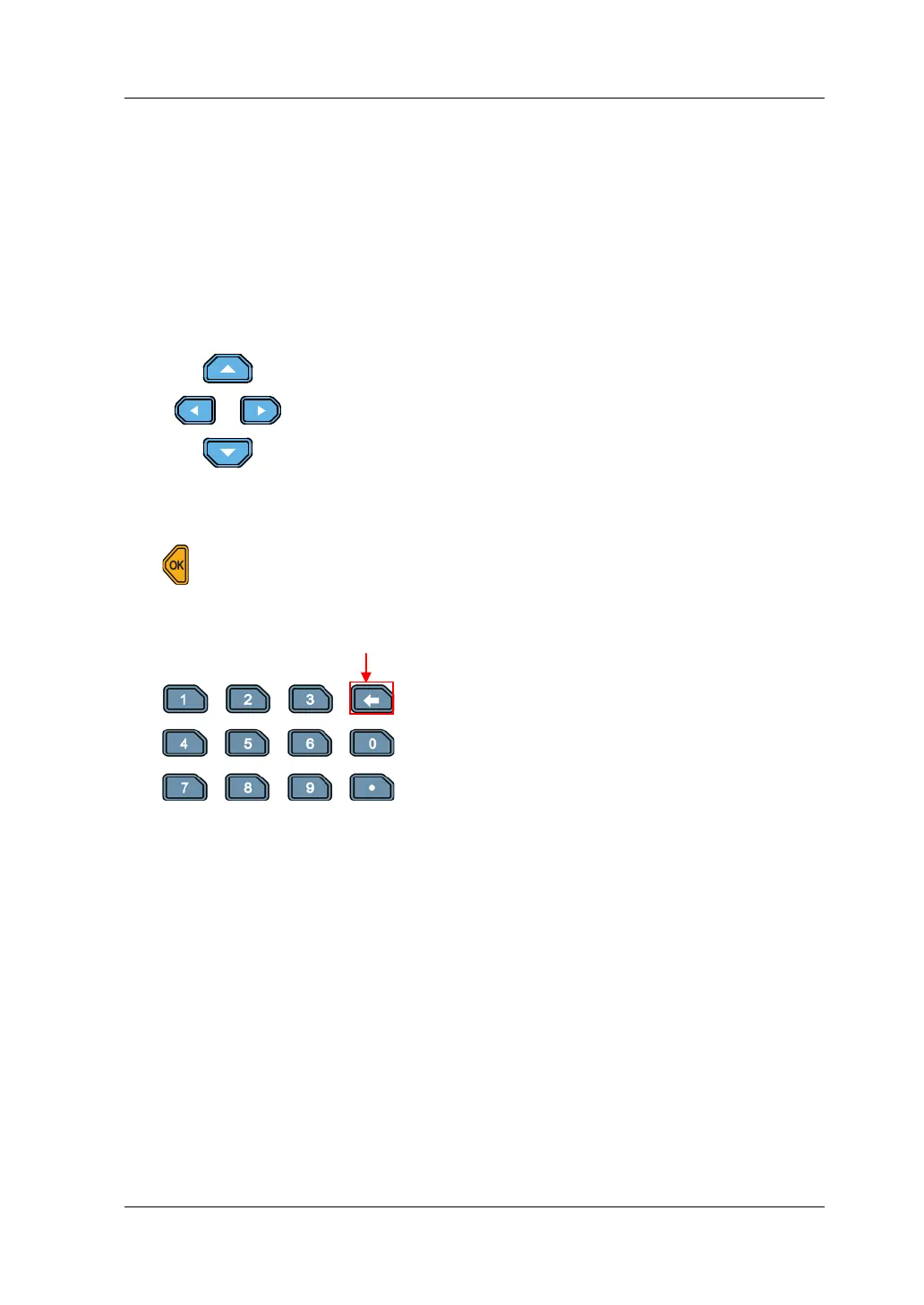

7. Control Keys
Control keys include the arrow keys, numeric keys, and confirmation key.
Pressing the control keys in different interfaces can produce different operation
results.
Note: Here introduces their common usage. For their other specific usages and
operation methods, refer to details in relevant chapters.
(1) Arrow keys (Up/Down/Left/Right arrow key)

Switch the parameter focus.
 Move the cursor.
 Switch the parameters or parameter values.
 When setting parameters, use the Up arrow key to
increase the value at the cursor or use the Down
arrow key to decrease the value at the cursor.
(2) Confirmation key
Confirms the parameter setting.
(3) Numeric keys and backspace key
 Numeric keys
The numeric keys contain numbers (0-9)
and a decimal point. You can use the
numeric keys to enter a value for the
parameter.
 Backspace key
Deletes the unwanted characters or
numerical values that have been entered.
8. Application Key
Enables one of the following three application functions: OCP test, OPP test, or
Battery test. You can press this key to switch among the three functions.
9. Channel Terminals
Channel terminals include the channel input terminals and Sense terminals, as
shown in Figure 1-4.
Backspace key
