10.1.2 Selecting Statistical Method

After entering the common analysis interface, tap Method to pop up the statistical

method setting menu. You can select RT Plot or Trend Plot.

• RT Plot

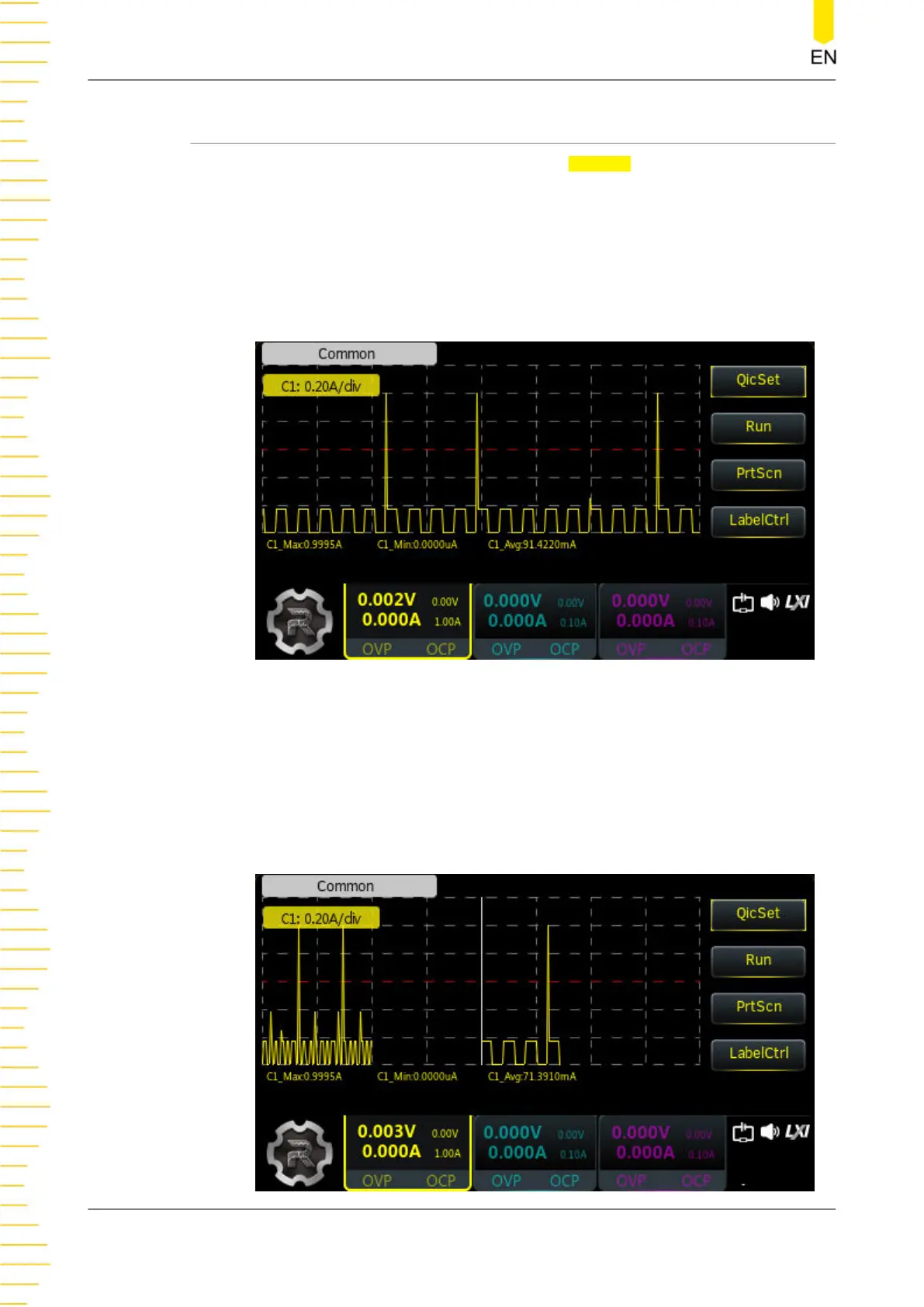

It displays the analysis object currently selected in real-time plot. In RT Plot

mode, the waveform of the collected signals slowly scrolls from right to left. The

latest data is displayed on the screen.

• Trend Plot

It displays the analysis object currently selected in trend plot. In Trend Plot

mode, the waveform plot area is divided into two parts: the left displays trend

waveform while the right displays real-time data. Real-time data will be drawn

point by point. When the data is out of the screen, it will be compressed and

displayed proportionally in the trend plot. Then, real-time data will be redrawn

from left to right.
