Trigger

DP900 series power supply supports trigger input and trigger output via the rear-

panel Digital I/O interface (optional for DP932U and not available for DP932E).

• Trigger Input:

The data lines of the digital I/O interface receive external trigger signal. The

source under control (namely the selected output channel) turns on/off the

output or inverts the output state when the preset trigger condition is met.

• Trigger Output:

The data lines of the digital I/O interface output a high/low level signal when the

control source (namely the selected output channel) turns on the output.

The 4 data lines of the digital I/O interface are mutually independent and can be used

for trigger input or trigger output separately.

The digital port connections are shown in the figure below.

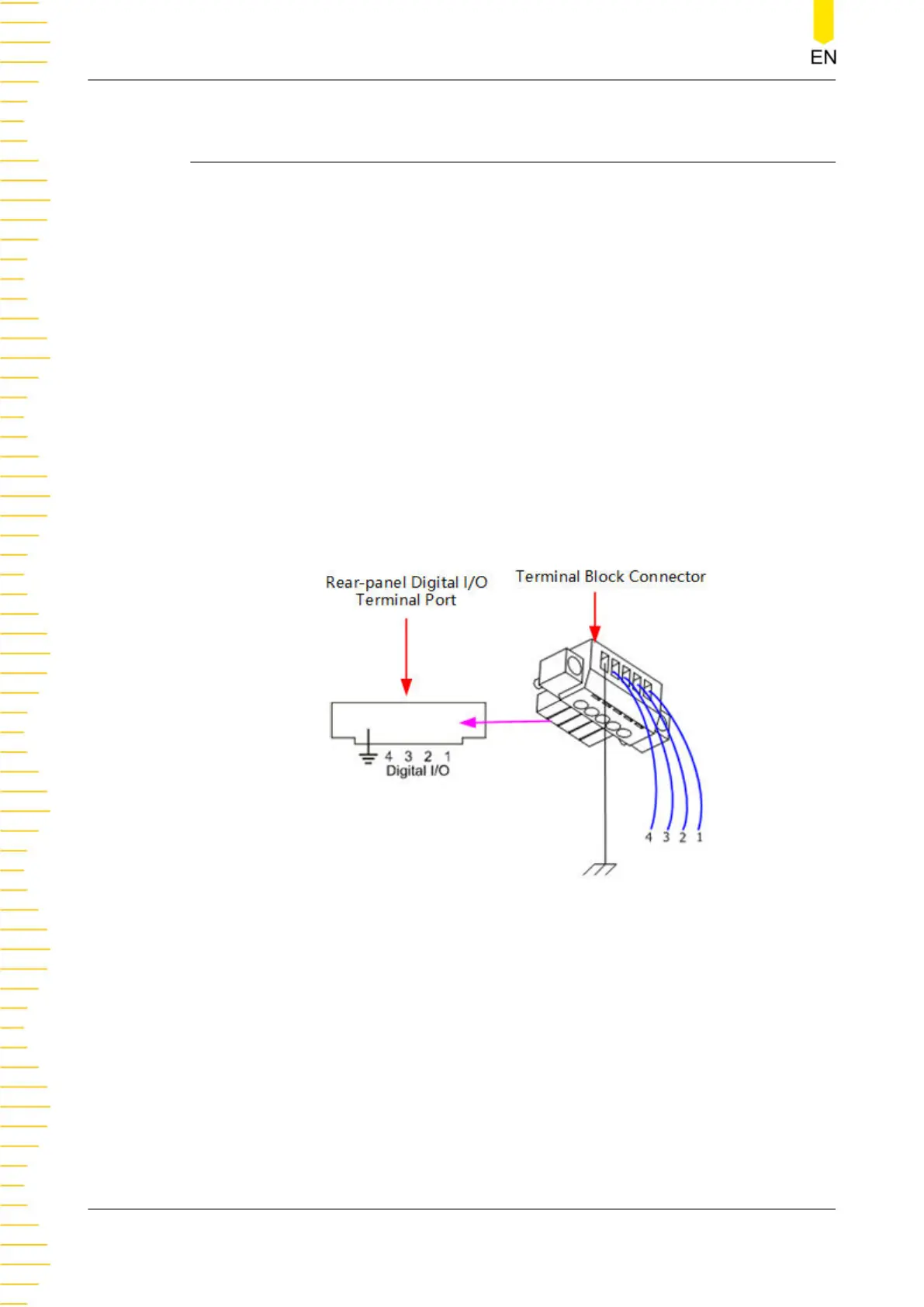

Figure 11.1 Digital Port Connections

Operation Procedures:

1. Connect the wires to the terminal block connector according to the figure above

(pay attention to the corresponding relations).

2. Insert the terminal block connector into the digital I/O terminal port on the rear

panel (pay attention to the corresponding relations).
