User’s Guide for DS1000CA Series
Pass/Fail connection
The Pass/Fail connection has an optically isolated output. It needs to connect to
another circuit to fulfill the function.
Before connecting to an external circuit, make sure the maximum voltage/current
does not exceed the internal photoMOS relay’s rating, 400V/100mA. DS1000CA
series adopts the technique of Optical Isolation, and the output device has no
polarity and can be used in any circuit within the ratings.

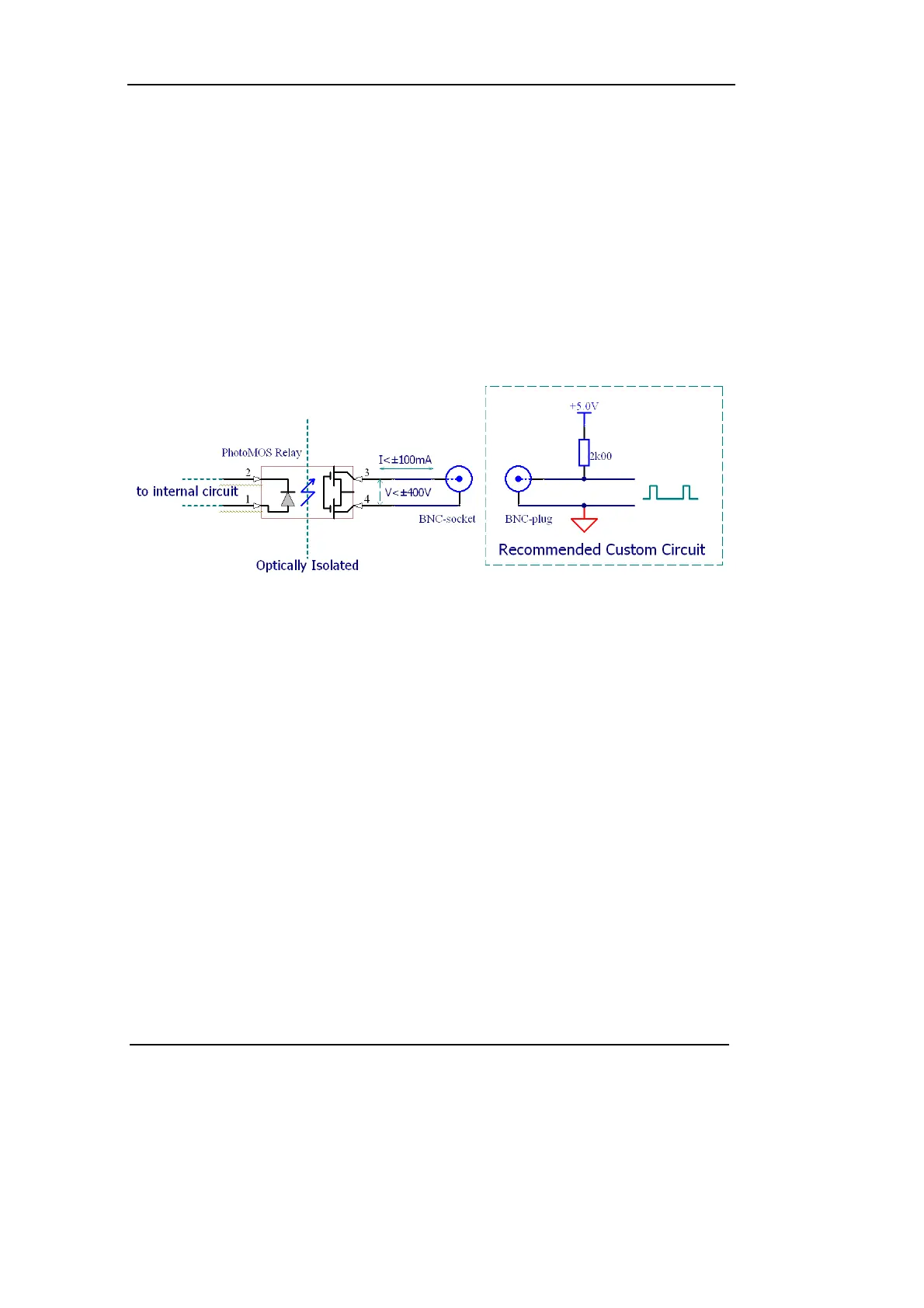

Figure 2-91
Schematic Diagram of Pass/Fail output
