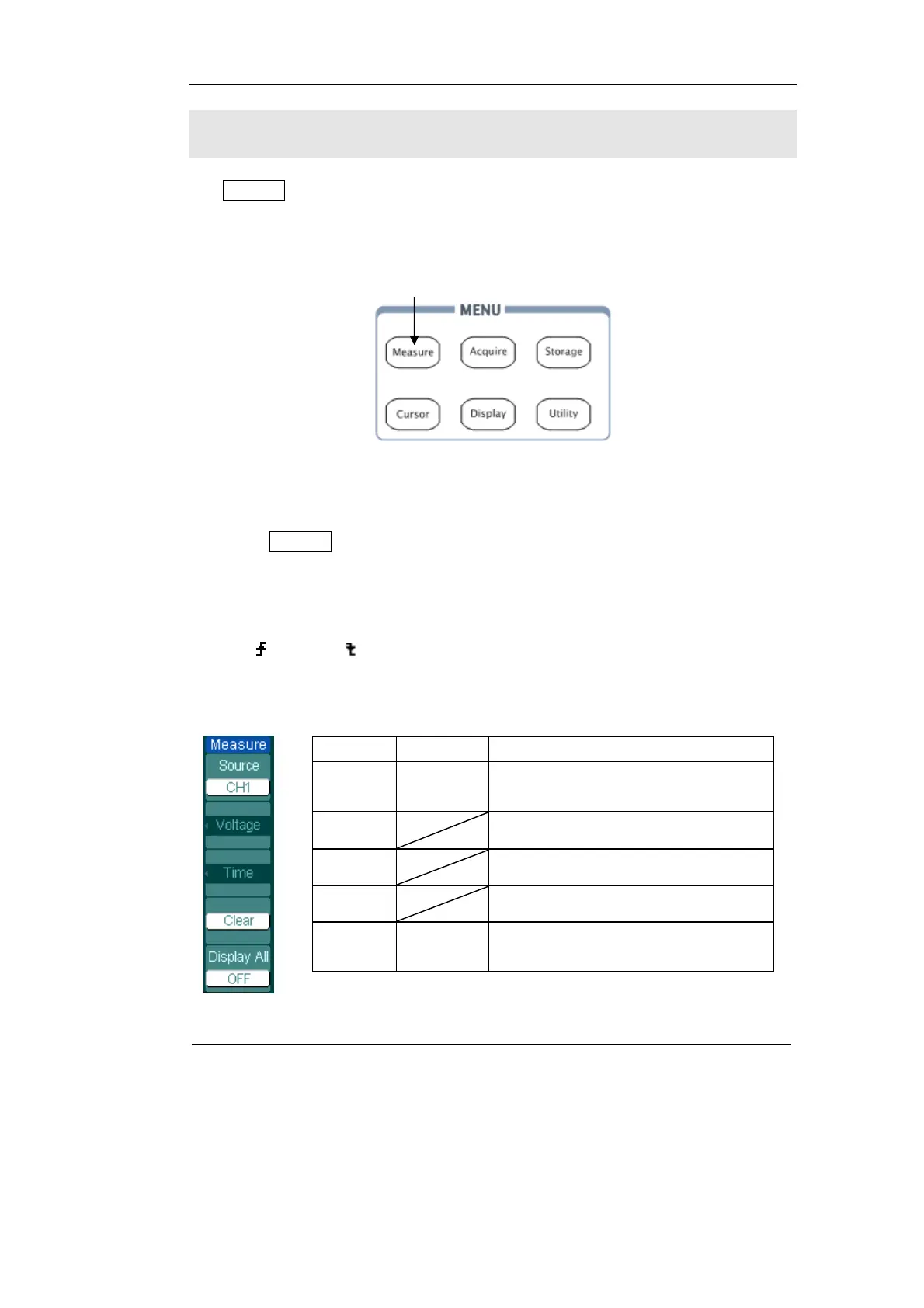

To Measure Automatically
The Measure button in the menu area activates the automatic measurement function.
The instruction below shows the powerful measurement function of DS1000CA series
oscilloscopes.
Menu explanation:
Press the Measure button to display the menu of the Automatic Measurements
settings.
The oscilloscopes provide 20 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time,
Delay1-2 , Delay1-2 , +Width, -Width, +Duty, -Duty (10 voltage and 10 timing
measurements).
Figure 2-102
Table 2-68 The Measure menu
Menu Settings Comments
Source
CH1
CH2
Select CH1 or CH2 as source channel
for measurement.
Voltage Select to measure voltage parameter.
Time Select to measure time parameter.
Clear Clear measurement result on screen.
Display
All
OFF
ON
Turn off all measurement result.
Turn on al measurement result.
Auto measurement
Figure 2-101
The menu
