RIGOL
2-84 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series

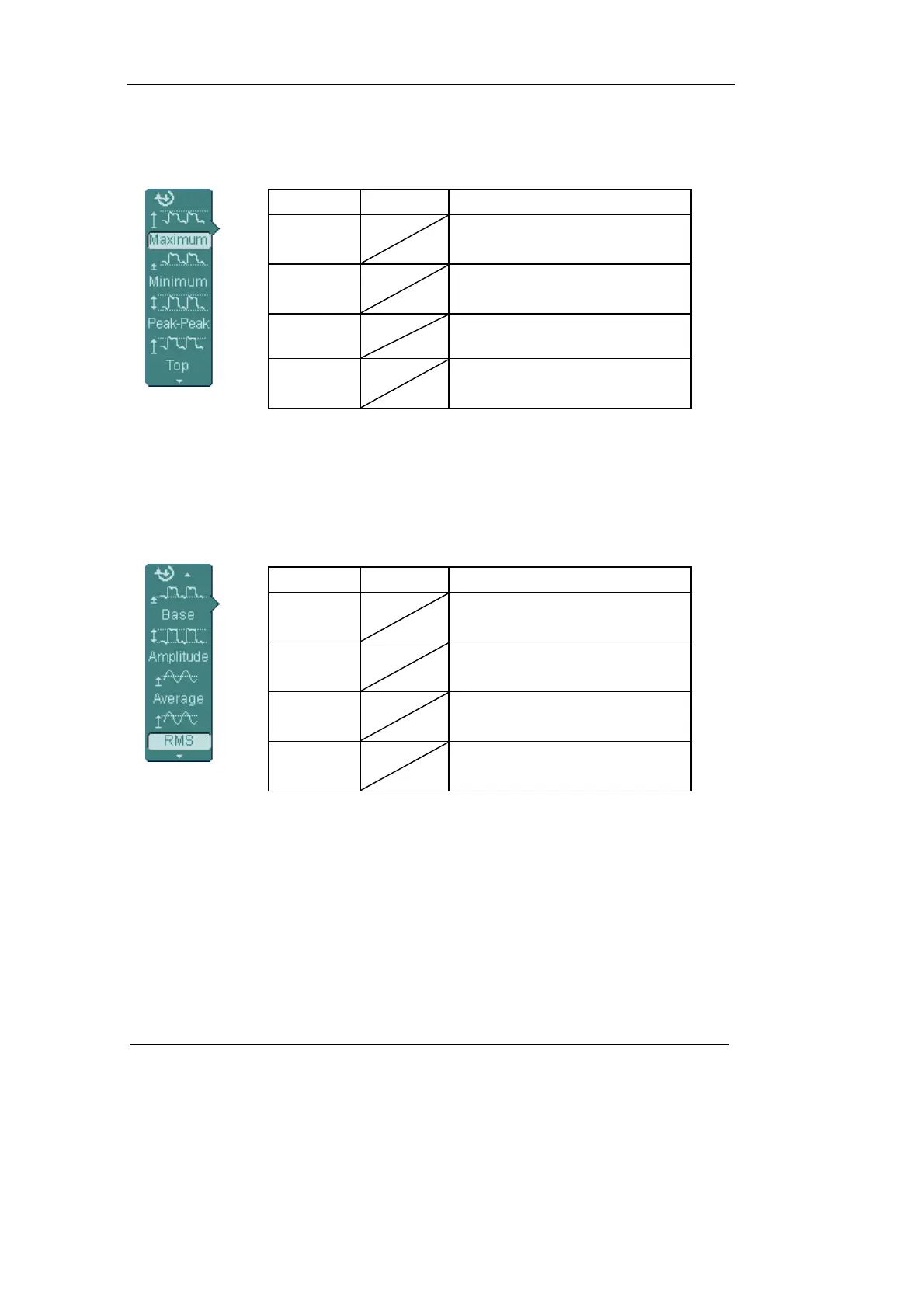

Page 1 for Voltage Measurements
Figure 2-103 Table 2-69 The Voltage Measurement menu
Menu Settings Comments
Maximum
Measure maximum voltage of a
waveform.
Minimum
Measure minimum voltage of a
waveform.
Peak-Peak Measure Peak-to-Peak Voltage.
Top
Measure a flat top voltage of a
square waveform.
Page 2 for voltage measurements
Figure 2-104 Table 2-70 The Voltage Measurement menu
Menu Settings Comments
Base
Measure a flat base voltage of a
square waveform.
Amplitude
Measure voltage between Top
and Base.
Average
Measure average voltage of a
waveform.
RMS
Measure Root Mean Square
Voltage of a waveform.
