RIGOL
2-2 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series
Understand the Vertical System
Ⅰ. Settings of the channels
Each channel of DS1000CA has an operation menu and it will pop up after pressing
CH1 or CH2 button. The settings of all items in the menu are shown in the table
below.

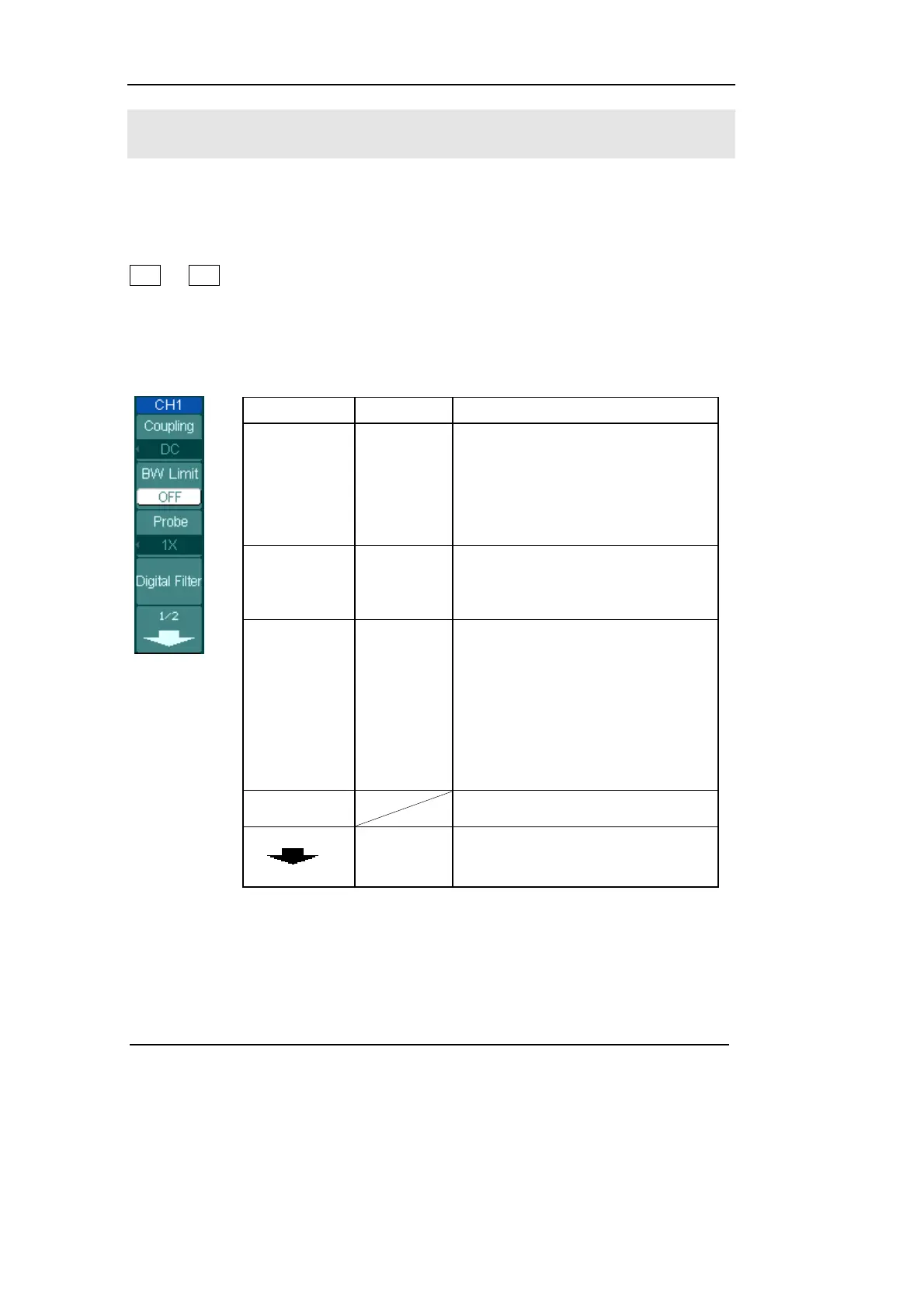

Figure 2-1 Table 2-1 The Channel menu (Page 1/2)
Menu Settings Comments
Coupling
AC
DC
GND
Block the DC component of the
input Signal.
Pass both AC and DC components
of the input signal
Disconnect the input signal.
BW Limit
ON
OFF
Limit the channel bandwidth to
20MHz to reduce display noise.
Get full bandwidth.
Probe
1X
5X
10X
50X
100X
500X
1000X
Set this to match the probe
attenuation factor to make the
vertical scale readout correct.
Digital filter Setup digital filter (See table 2-4).
1/2
Go to the next menu page (The
followings are the same, no more
explanation).
To Next Page
