To Store and Recall Waveforms or Setups

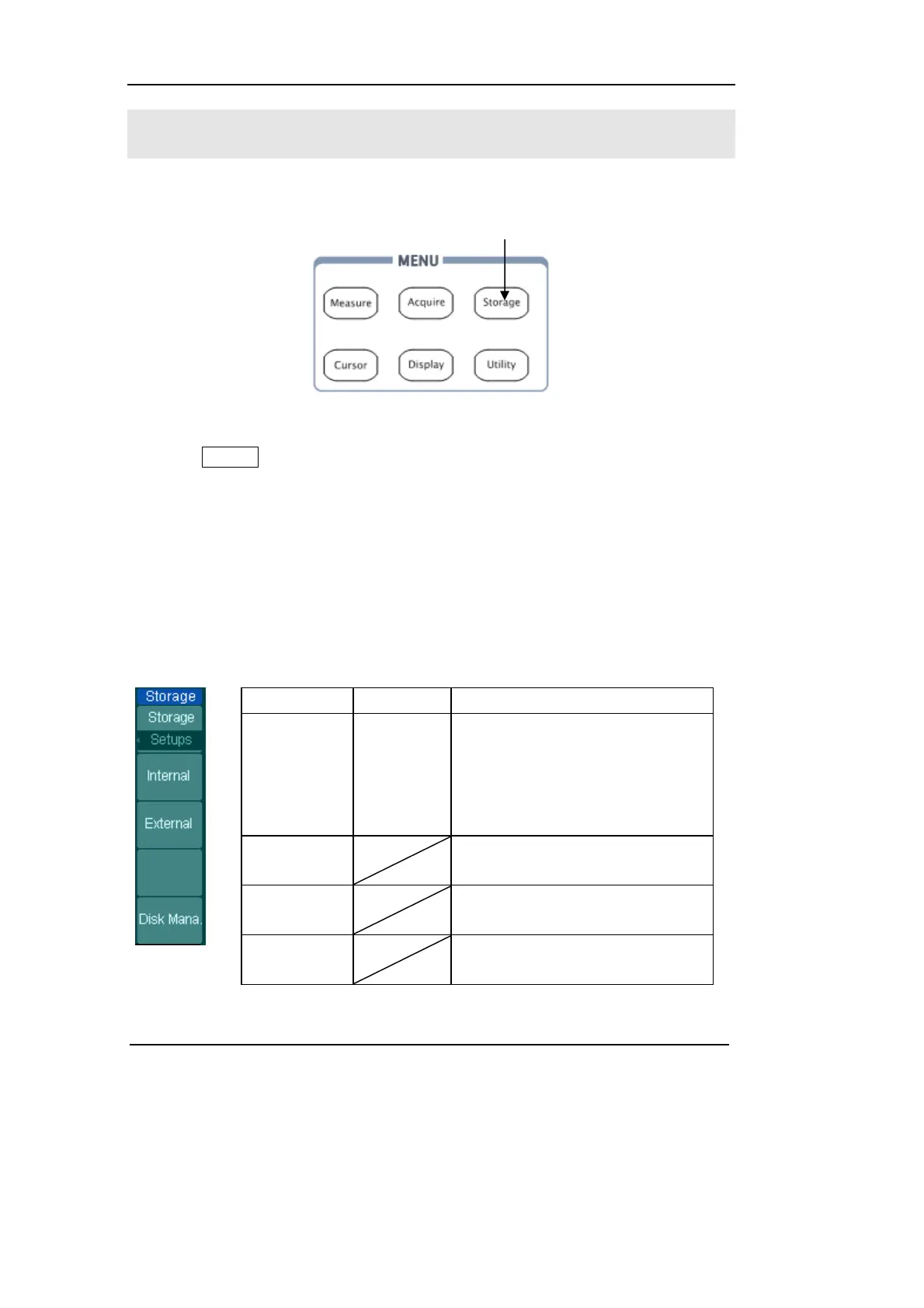

Figure 2-65 shows the menu button for the storage system on the front panel.
Press the Storage button to show the menu for the settings of the storage system.
Waveforms and setups can be stored in and recalled from, both internal memory and
external memory. The waveform file, setup file, bitmap and CSV file in external
memory can be created and deleted. System supports English/Chinese file name
input.
Waveform and setup menus are as follows:
Figure 2-66
Table 2-38 The Storage menu
Menu Settings Comments
Storage
Waveform
Setups
Bit map
CSV
Factory
Store or recall waveform.
Store or recall instrument setups.
Create or delete bit map files.
Create or delete CSV files.
Recall factory setups.
Internal
Go to menu for internal memory
operation (see Table 2-42).
External
Go to menu for external memory
operation (see Table 2-43).
Disk Mana.
Go to disk manage menu (see
Table 2-44).
Storage setup button
Figure 2-65
The menu
