To Set Up the Horizontal System

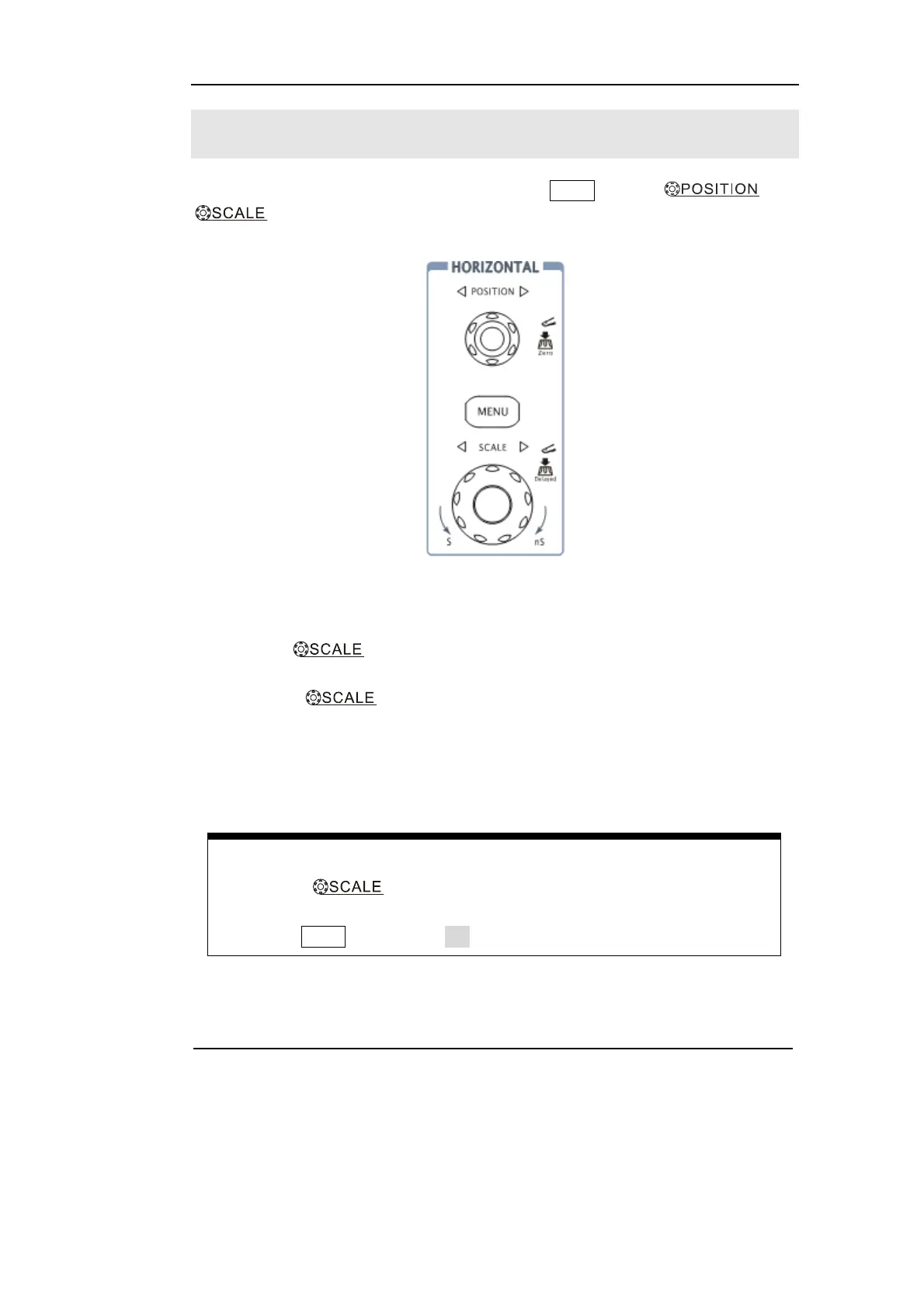

Figure 1-10 shows the HORIZONTAL controls: MENU button, and
knobs of horizontal system. Following the exercise to familiarize with the
buttons, knobs, and status bar.
Figure 1-10
The horizontal system
1. Turn the
knob and notice the change in the status bar.
The horizontal
knob changes the sweep speed in a 1-2-5 step sequence,
and displays the value in the status bar. The time base ranges of the DS1000CA
series is from 5ns/div* to 50s/div.
* NOTE: The speed of horizontal scan varies by different models.
Delayed Scan Shortcut key
To press the
knob in the horizontal control area on the front-panel
is another way to enter or exit Delayed Scan mode and it is equal to the menu
operations, MENUDelayedON.
