RIGOL
Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series
2-3

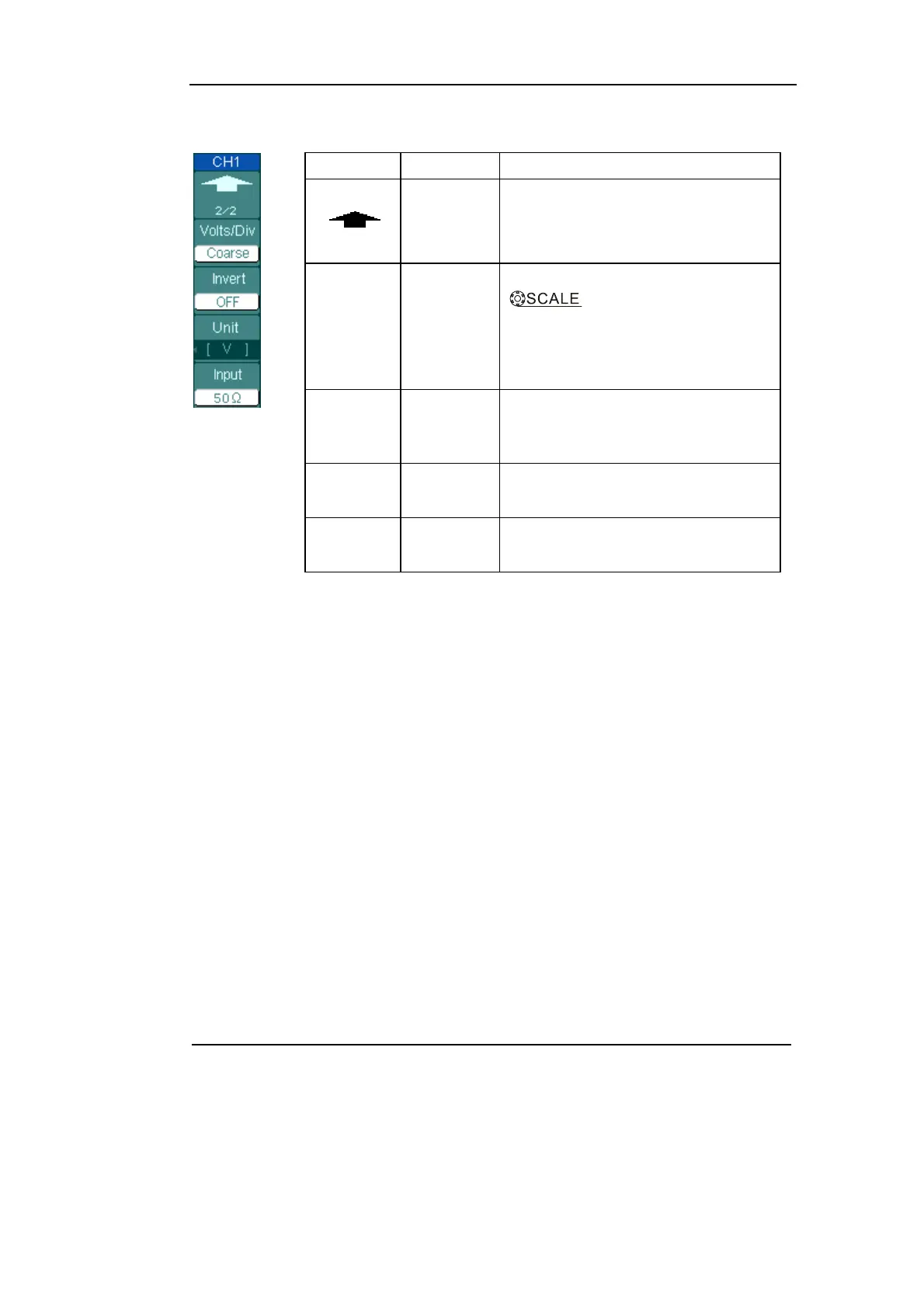

Figure 2-2 Table 2-2 The Channel menu (Page 2/2)
Menu
Settings Comments
2/2
Back to the previous menu page
(The followings are the same, no
more explanation).
Volts/Div
Coarse
Fine
Select the resolution of the
knob.
Define a 1-2-5 sequence.
To change the resolution to small
steps between the coarse settings.
Invert
ON
OFF
Turn on the invert function.
Restore to original display of the
waveform.
Unit
V/ A/ W/ U
Set “V”, “A”, “W” or “U” as the unit of
vertical channel.
Input
50Ω*
1MΩ
Press this key to select the input
resistance to 50Ω or 1MΩ.
*
For DS1202CA and DS1302CA only.
