RIGOL
1-8 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series

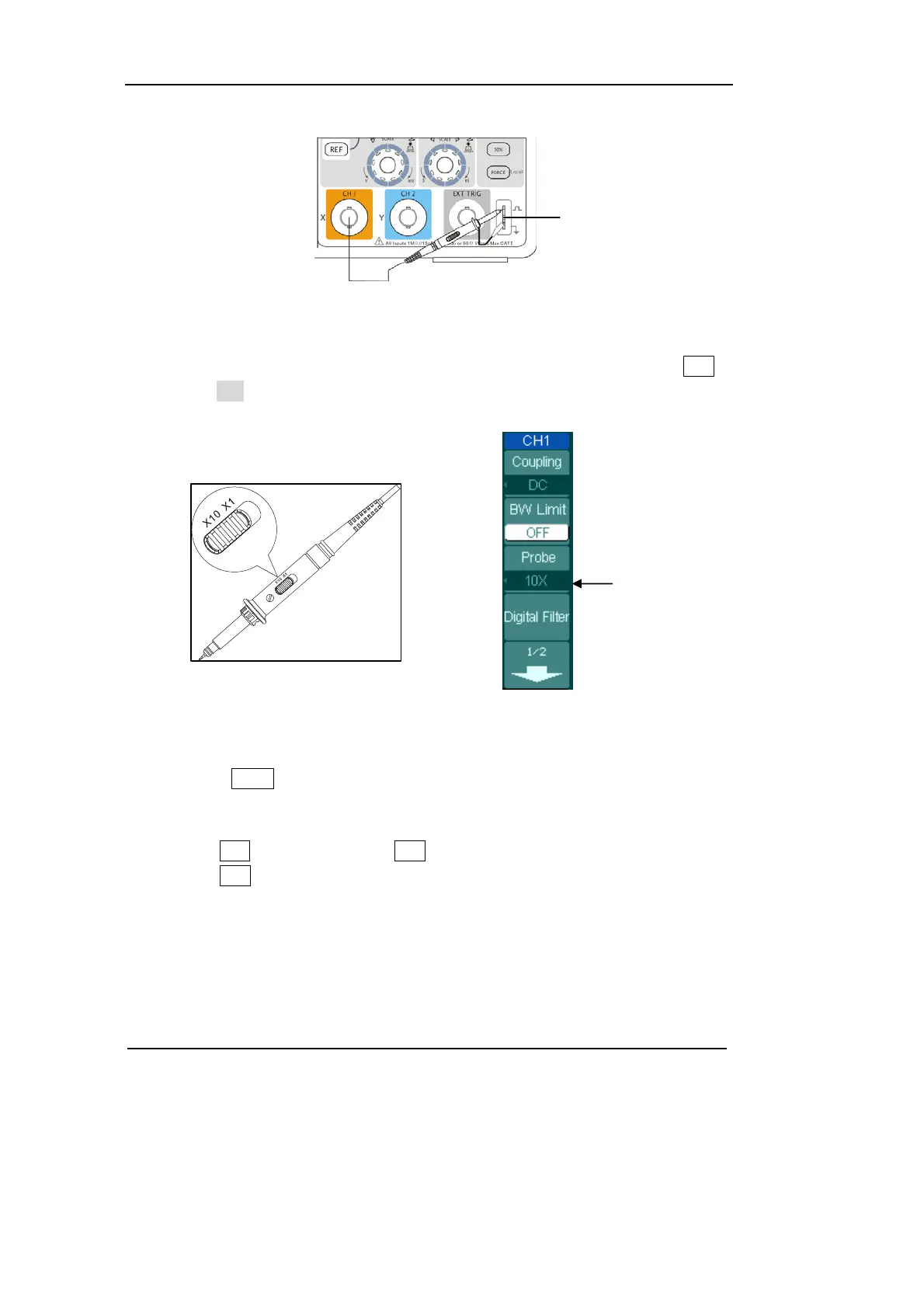

Figure 1-5
Attach the probe
② Set the probe attenuation of the oscilloscope to 10X. To do this, push CH1→
Probe→10X.
Figure 1-6 Figure 1-7
Set the probe The CH1 menu
③ Push the AUTO button. Within a few seconds, a square wave will display
(approximately 1 kHz 3 V peak- to- peak).
④ Push the OFF button or push the CH1 button again to turn off Channel 1.
Push the CH2 button to turn on channel 2, repeat steps 2 and 3.
Probe compensator
Probe scale
