User’s Guide for DS1000CA Series

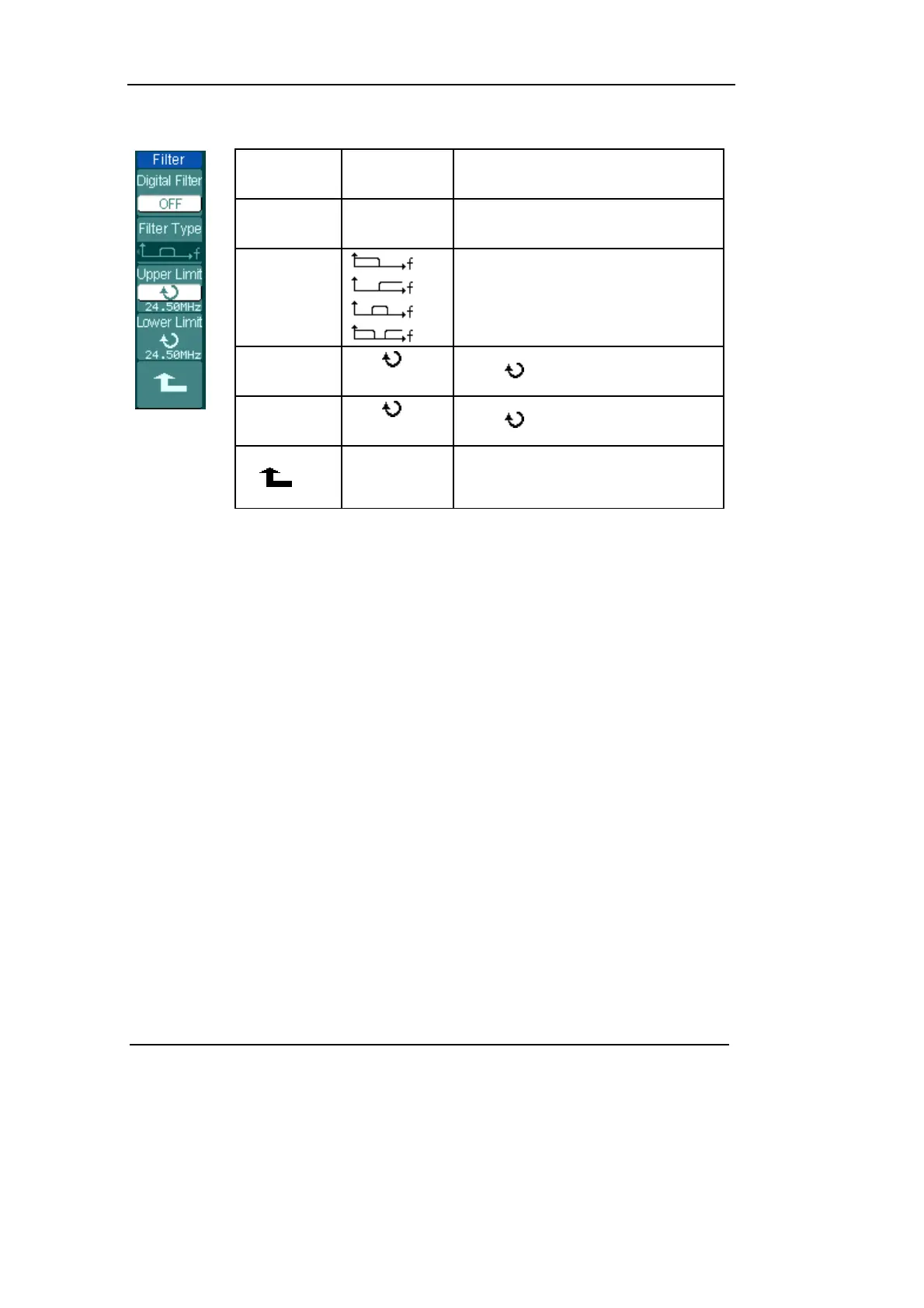

Figure 2-14 Table 2-4 The Filter menu
Menu Settings Comments
Digital Filter
On
Off
Turn on the digital filter.
Turn off the digital filter.
Filter Type
Setup as LPF (Low Pass Filter).
Setup as HPF (High Pass Filter).
Setup as BPF (Band Pass Filter).
Setup as BRF (Band Reject Filter).
Upper limit
<frequency>
Turn (
) knob to set high limit.
Lower limit
<frequency>
Turn (
) knob to set low limit.
Back to higher level menu (The
followings are the same, no more
explanation).
