Rigol DS1000CA Series User Manual

RIGOL
2-16 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series
II. Using REF
Reference Waveforms are saved waveforms to be selected for display. The reference
function will be available after saving the selected waveform to non-volatile memory.
Press REF button to display the Reference waveform menu.

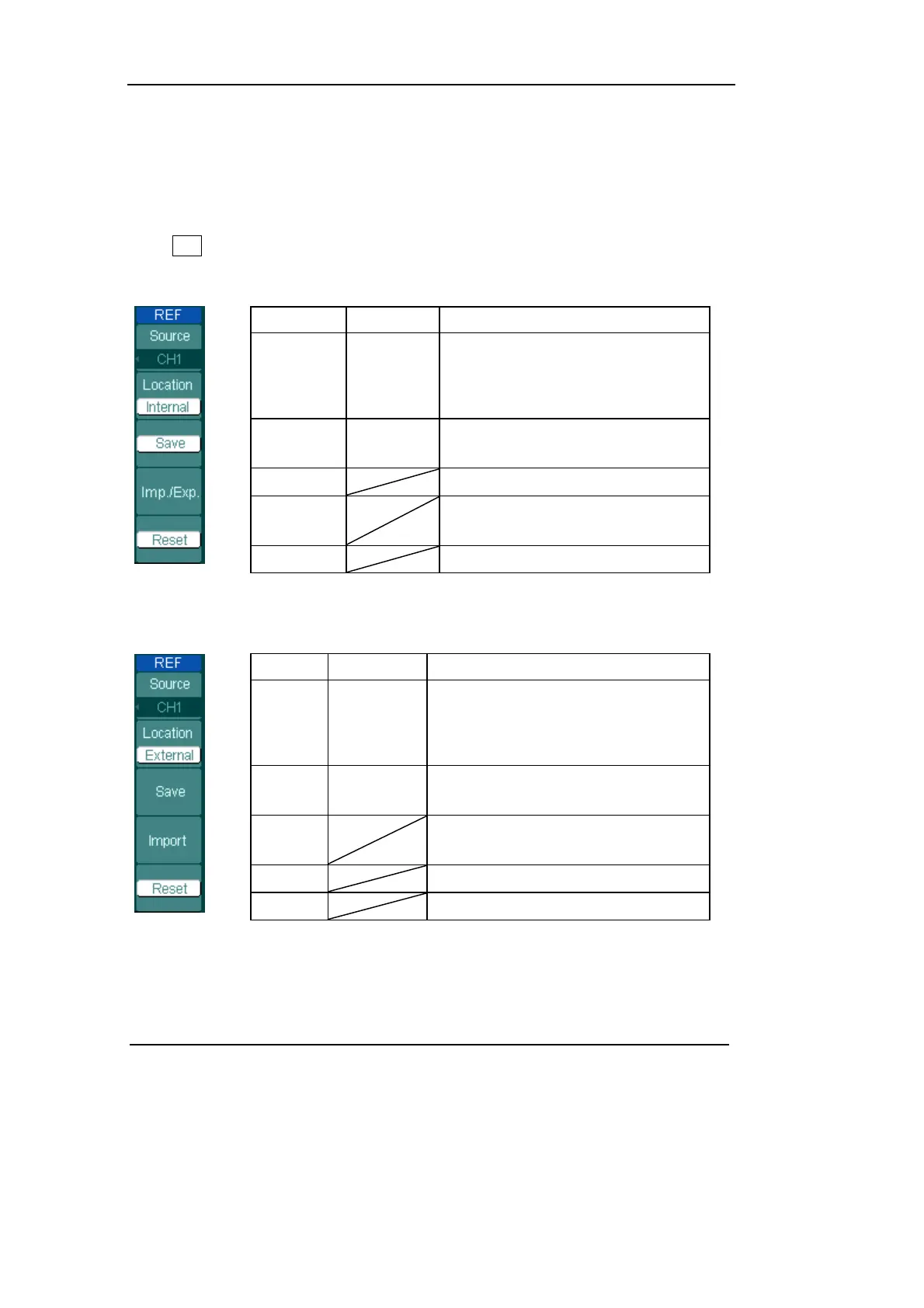

Figure 2-18 Table 2-8 REF menu when using internal memory
Menu Settings Comments
Source
CH1
CH2
MATH/FFT
Select channel1 as REF channel.
Select channel2 as REF channel.
Select Math/FFT as REF channel.
Location
Internal
External
Select memory location in scope.
Select memory location out scope.
Save Save REF waveform
Imp./Exp.
Go to import/export menu (see
table 2-10).
Reset Reset REF waveform.
Figure 2-19 Table 2-9 REF menu when using external memory
Menu Settings Comments
Source
CH1
CH2
MATH/FFT
Select channel1 as REF channel.
Select channel2 as REF channel.
Select Math/FFT as REF channel.
Location
Internal
External
Select memory location in scope.
Select memory location out scope.
Save
Save REF waveform to outer memory
location.
Import Go to import menu (see table 2-14).
Reset Reset REF waveform.
